12V Precision Temperature Controller with 3 digit display 10Amp Relay
via Little Bird
$7.00
SKU LB-LR0214-16
We have 24 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 1000 units into Australia from Little Bird. If you order today, we can dispatch this stock between Jan 04, 2026 - Jan 21, 2026.

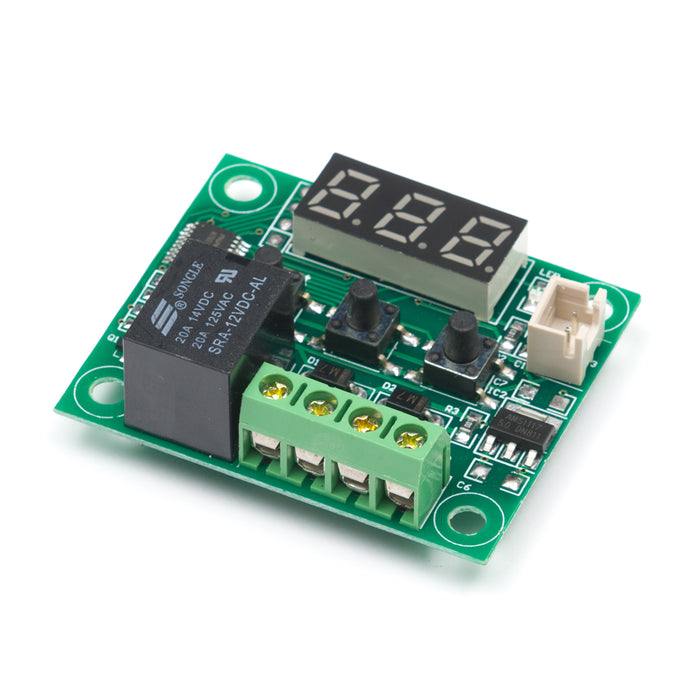

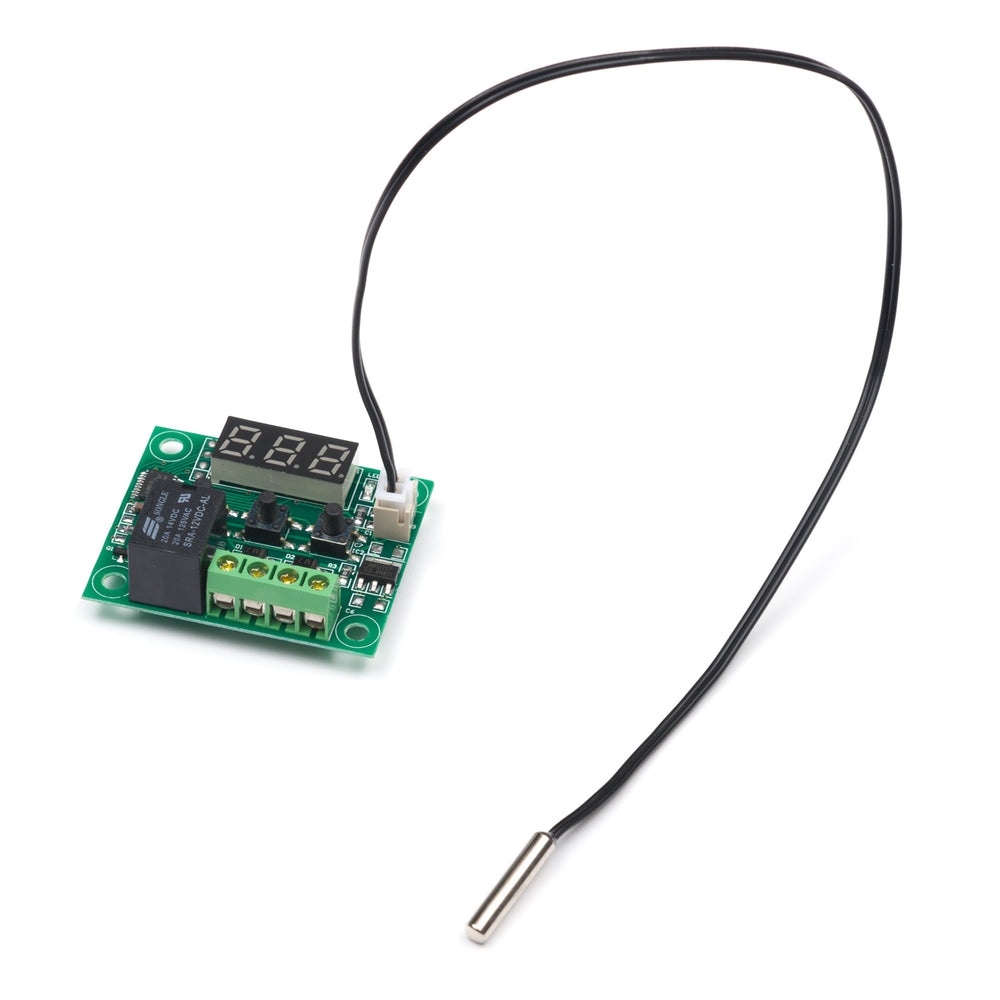

This temperature controller runs on 12V, and is equiped with a 10 amp relay. The unit also features a 3 digit display used for setting and display the temperature. The relay is normally open, once the temperature rises above the set temp. the relay closes. The relay will only re-open once the temperature has fallen 2 degrees (celcius) below the set temp.
Specifications:
- Accuracy: ± 0.1 °C
- Control accuracy: 0.1 °C
- Backlash accuracy: 0.1 °C
- Refresh rate: 0.5S
- Temperature range: -50-110 °C
- High-temperature protection: 0-110°C
- Input power: DC12V
- Measuring input: NTC (10K0.5%) Waterproof sensor
- Environmental requirements: -10 °C --60 °C humidity 20% - 85%
- Size: 48.5mm * 40.1mm * 15.8mm
- Hole size: 46 * 26.5mm
- Power consumption: Static current ≤35MA, pull current: ≤65MA
- Net Weight: 22.3G
