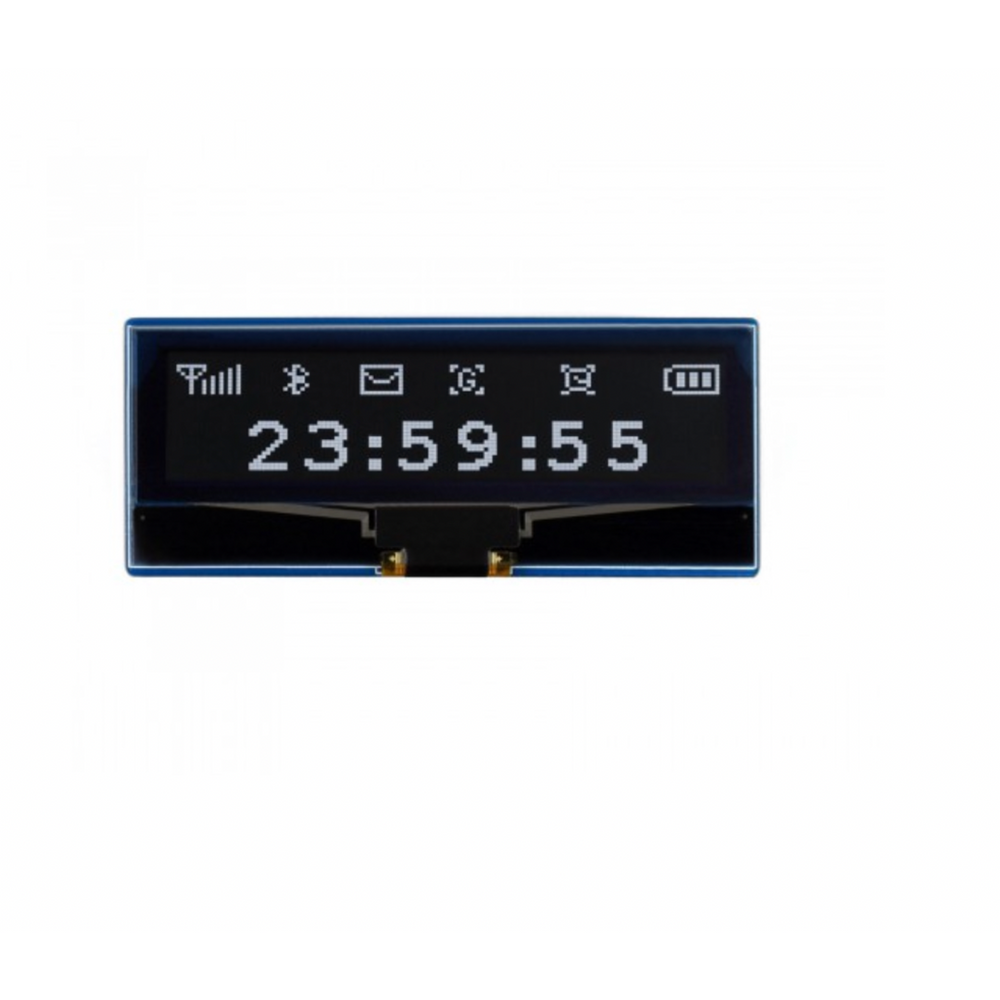

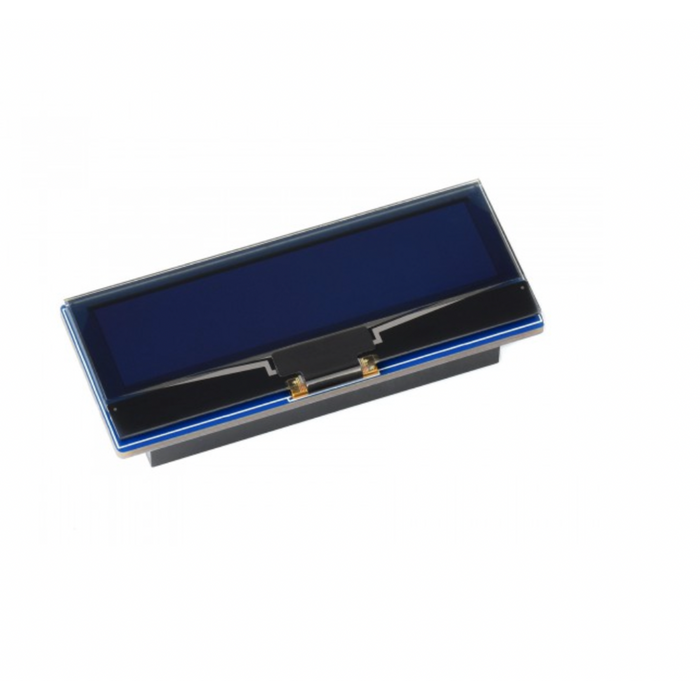

2.23inch OLED Display Module for Raspberry Pi Pico, 128×32, SPI/I2C
$22.00
SKU WS-19750
2.23" OLED Display Module For Pico
Embedded SSD1305 Driver, Using SPI/I2C Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
2.23" - Resolution
128×32 - Display Color
Black / White - Interface
SPI/I2C - Display Panel
OLED - Driver
SSD1305
Features At A Glance
- Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
LOGICAL VOLTAGEVIEWING ANGLEOPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONS
| 3.3V | >160° |
| 3.3V/5V | 128×32 pixels |
| 4-wire SPI, I2C | 55.02 × 13.10mm |
| OLED | 0.41 × 0.39mm |
| SSD1305 | 63.00 × 26.00mm |

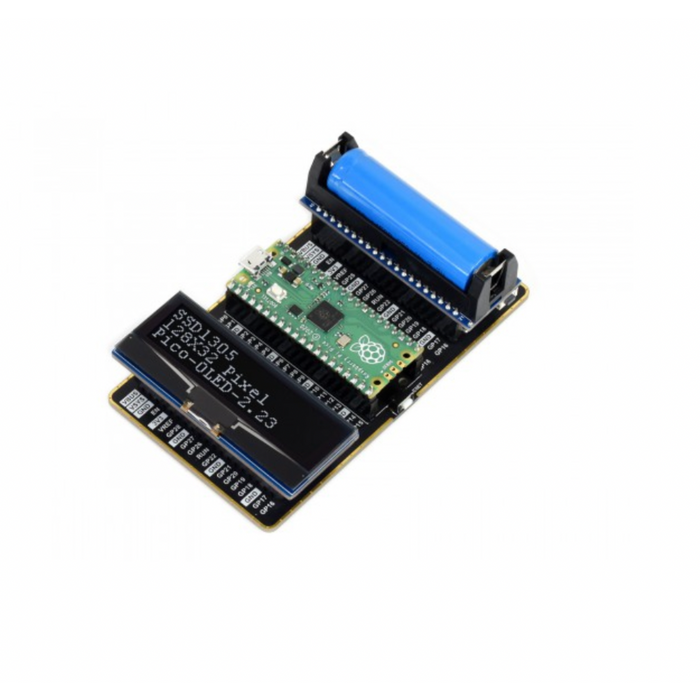

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-OLED-2.23
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
