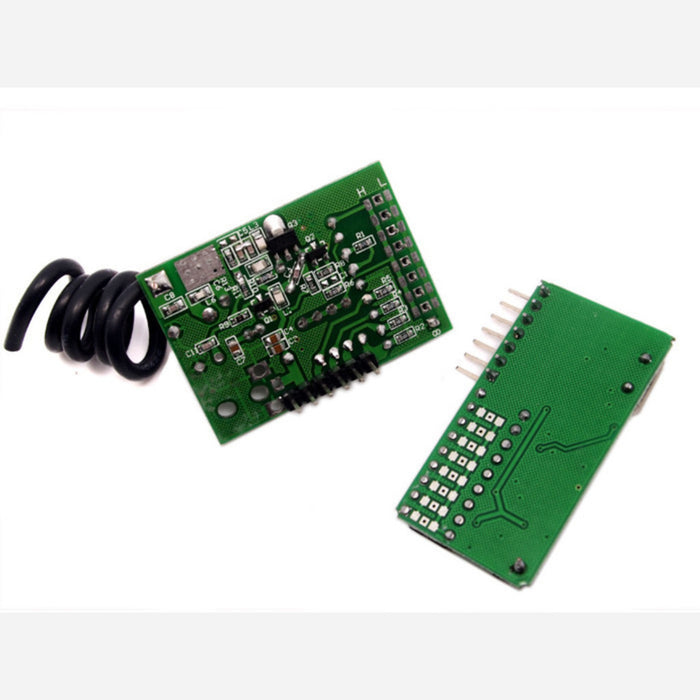

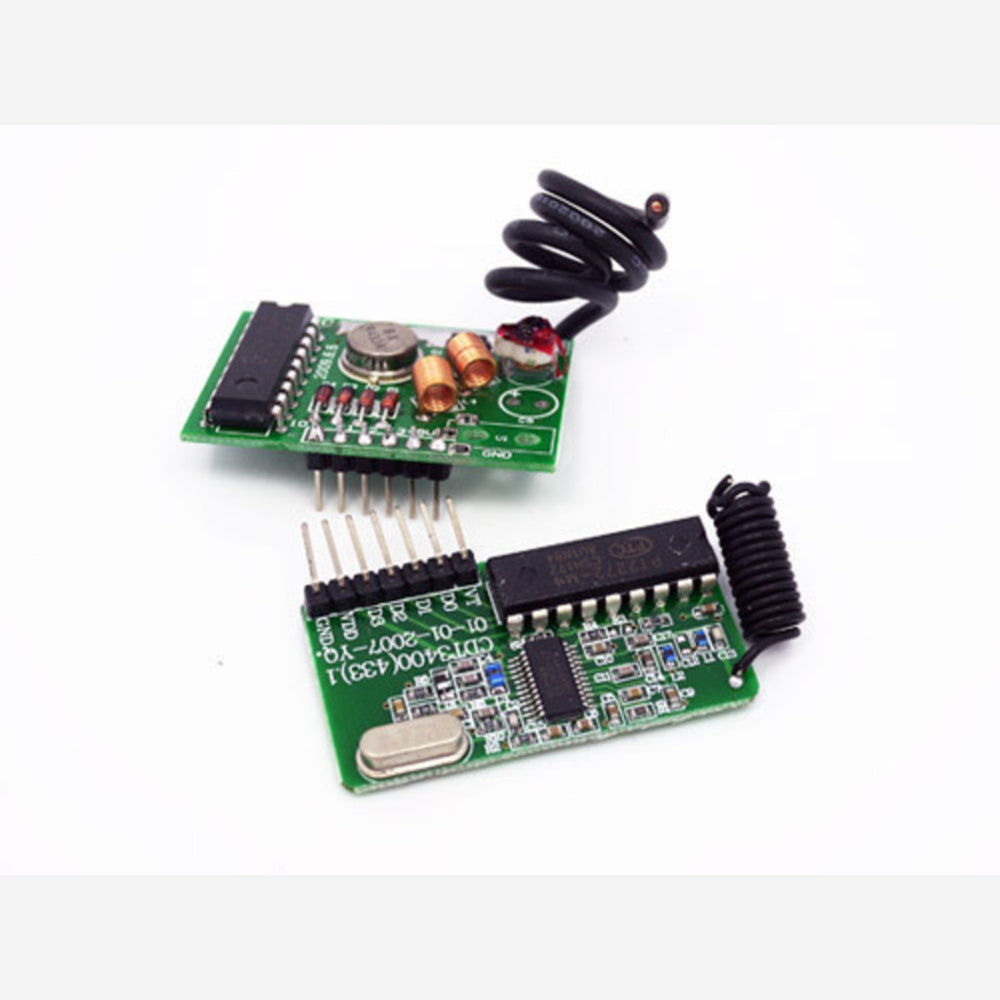

This is a super long range 433mhz RF link kit Comes with VCO , PLL technology, steady Frequency and super anti-jamming ability. You can directly use it with your project like wireless data transport and remote control etc…
Specification:
- Working voltage: Receiver(3-5V), Transmitter(3-9V)
- Working current: ≤2.5mA(5.0VDC)
- principle of work: Superhet（VCO, PLL）
- Modulation：OOK/ASK
- Working band: 433.92MHz (customize service available)
- Bandwidth: 1.5MHz
- Sensitivity: -105dBm (50Ω)
- Rate: ＜5Kbps
- Decoding form：PT2272
- Antenna length: 18cm
- Emission Distance: 2 KM
Documents
Please visit Seeed Studio's wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
Datasheet for PT2272 and PT2262
