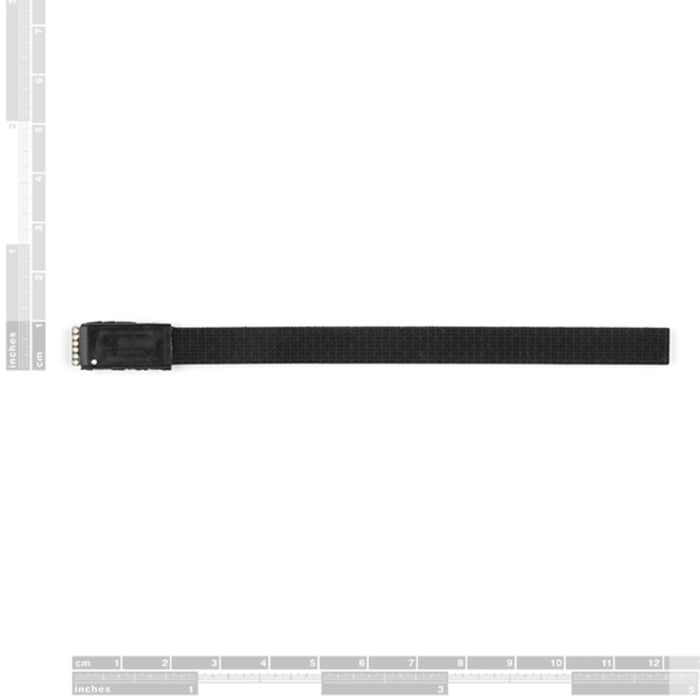

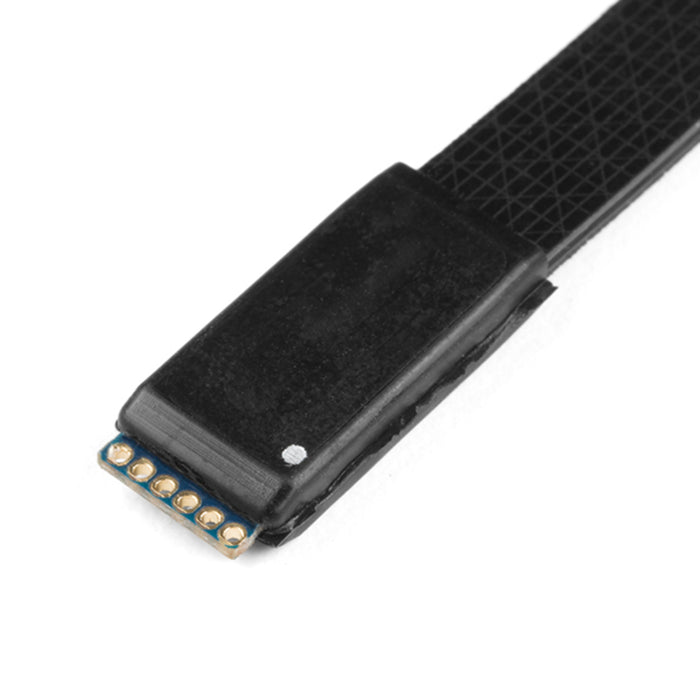

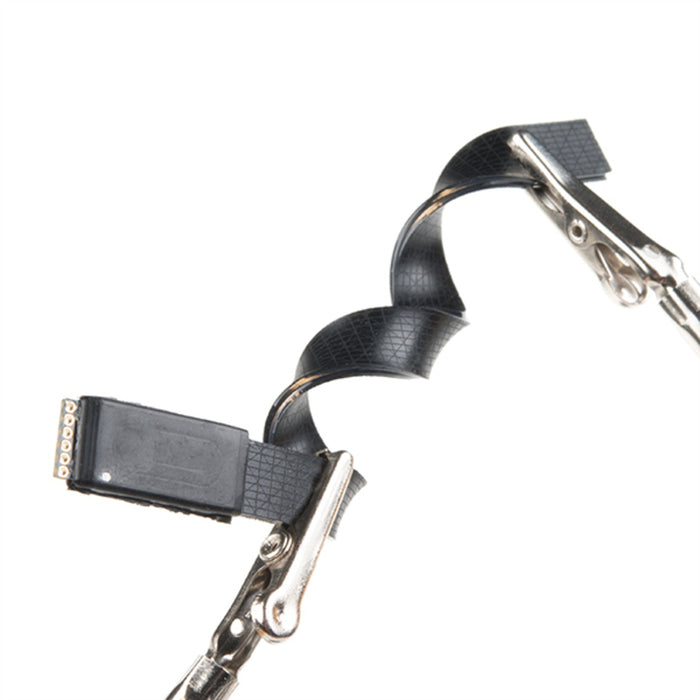

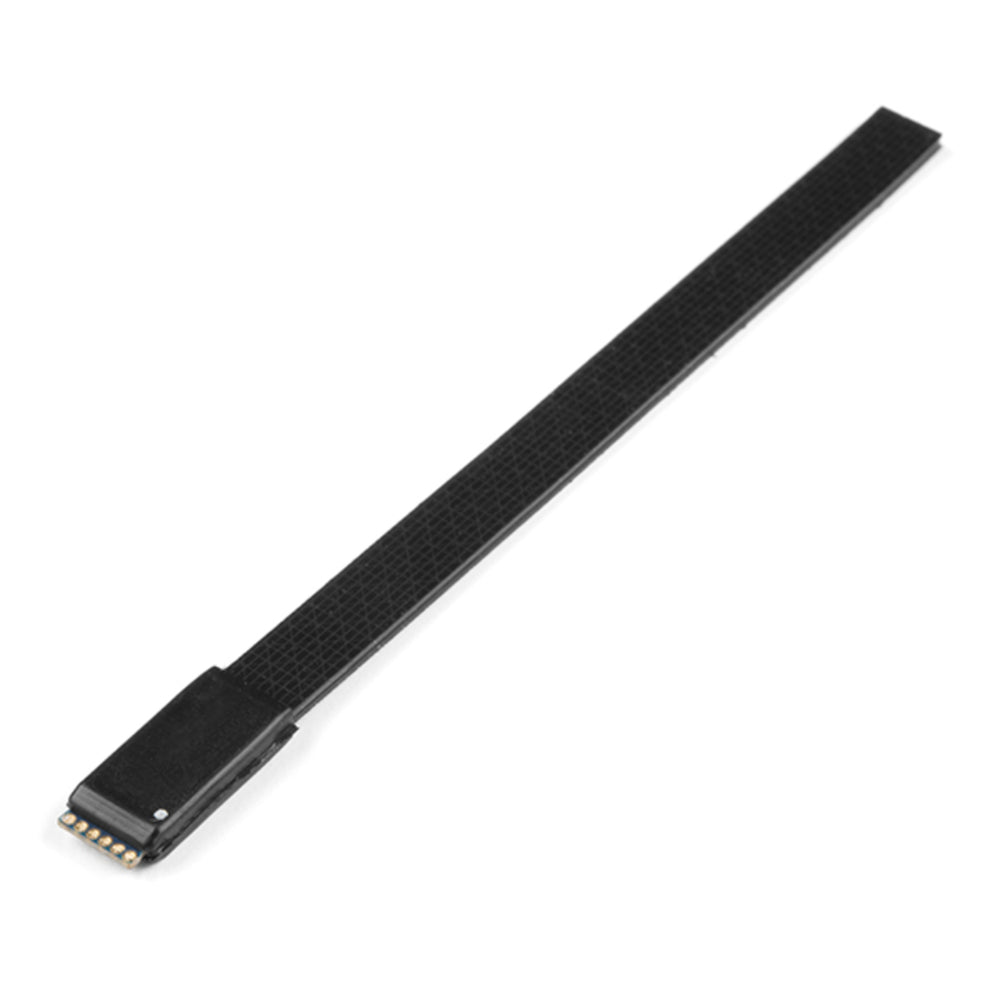

Bend Labs Digital Flex Sensor - 1-Axis, 4 Inch

via Sparkfun
$153.89
SKU SF-SEN-15244

We have 3 units in our Sydney Warehouse available for immediate dispatch.

We can get a further 37 units into Australia from Sparkfun. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 11, 2024.

The Bend Labs Digital Flex Sensors are an innovative solution for measuring motion, providing a unique alternative to existing sensor technologies for measuring a highly accurate and drift-free angular displacement in a soft form factor while maintaining extremely low power consumption. Constructed using highly durable, medical grade silicone elastomers, this is a single axis bidirectional flex sensor which measures one angle for 2D orientation. Its low-power, integrated analog front end, with I2C interface, provides angular displacement data in degrees and includes onboard calibration and bootloader.

The angular displacement is path independent, meaning extraneous bending is rejected. Common mode signals such as stretching and temperature fluctuations are also rejected, providing a high fidelity measurement of angular displacement ideal for a wide variety of applications. This sensor requires 1.62-3.6V regulated supply for proper operation.

Note: Due to licensing restrictions Bend Labs technology cannot be licensed for commercial use in the AR/VR field.
