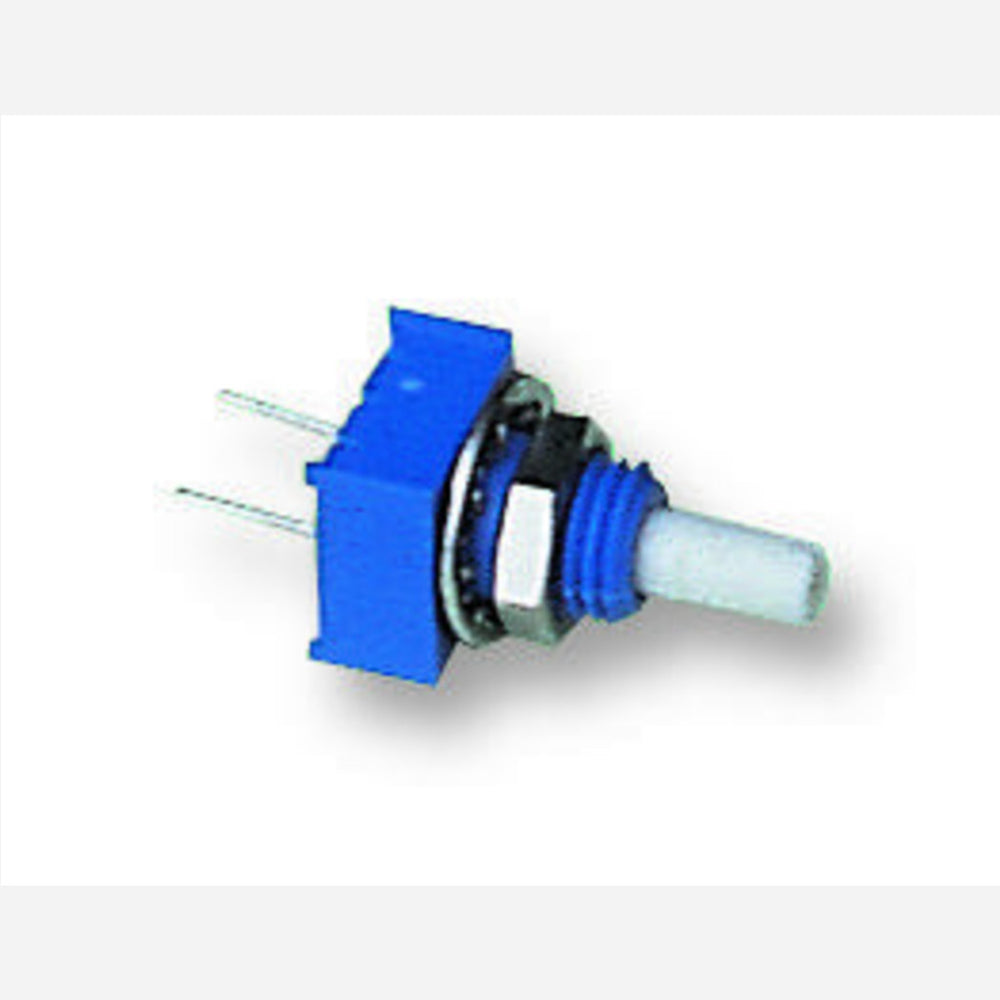

BOURNS 3310P-001-103L Rotary Potentiometer, Sealed Panel Control, 3310P Series, 10 kohm, Linear, 1, 250 mW, Panel
via Element14
$7.56
SKU ET-1156134
The Bourns 3310P series are through hole, panel control potentiometer. These potentiometers are single turn which is designed for frequent adjustment application. These devices are available in plastic or metal bushing and plastic shaft combination. No. of Turns: 1 Potentiometer Mounting: Panel Power Rating: 250mW Product Range: 3310P Series Resistance Tolerance: ± 20% SVHC: No SVHC (17-Dec-2014) Shaft Diameter: 3.18mm Shaft Length: 12.7mm Track Resistance: 10kohm Track Taper: Linear Features: 5.08mm x 2.54mm triangular pattern terminals, rear exit 9mm square potentiometer Sealing is IP67 rated Resistance value ranges from 1Kohm to 1Mohm ±20% tolerance Operating temperature ranges from -40°C to +125°C Power rating is 0.25W PC board and bushing mount
