We can get 100 units into Australia from Pimoroni. If you order today, we can dispatch this stock between Nov 18, 2024 - Nov 25, 2024.

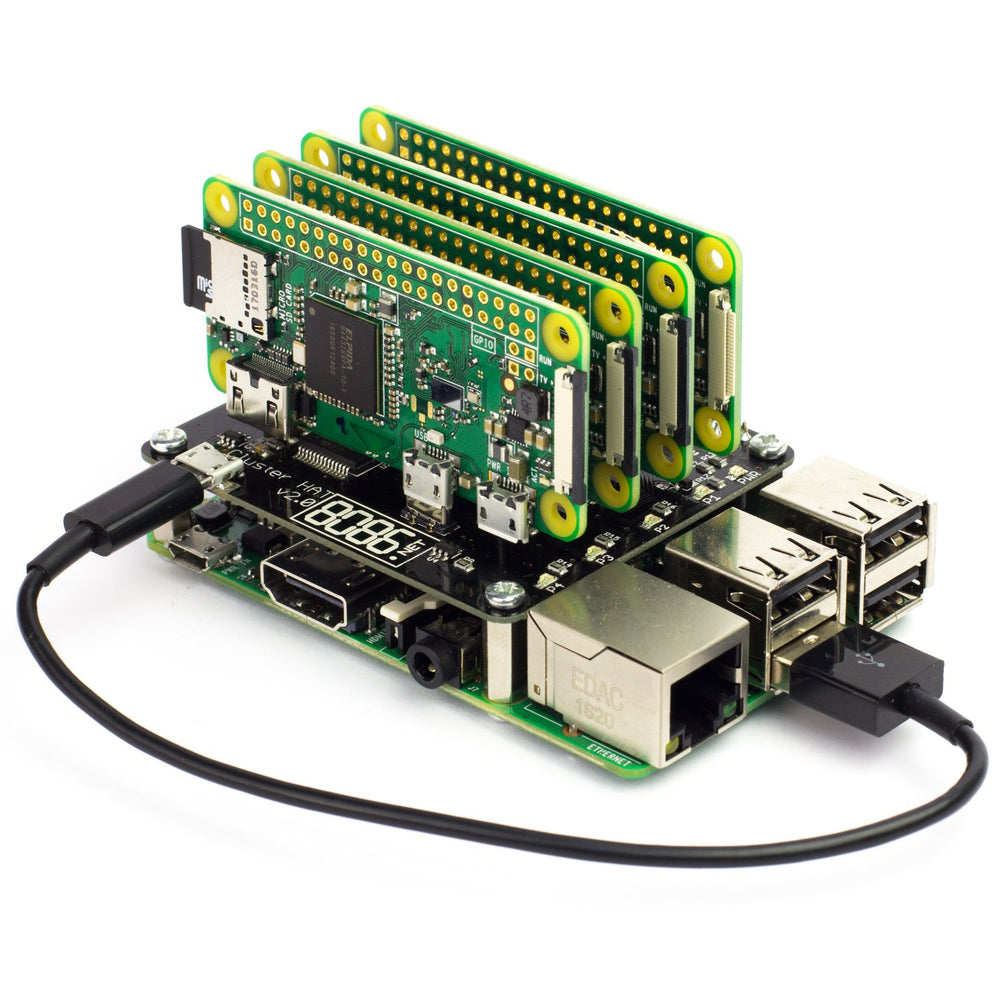

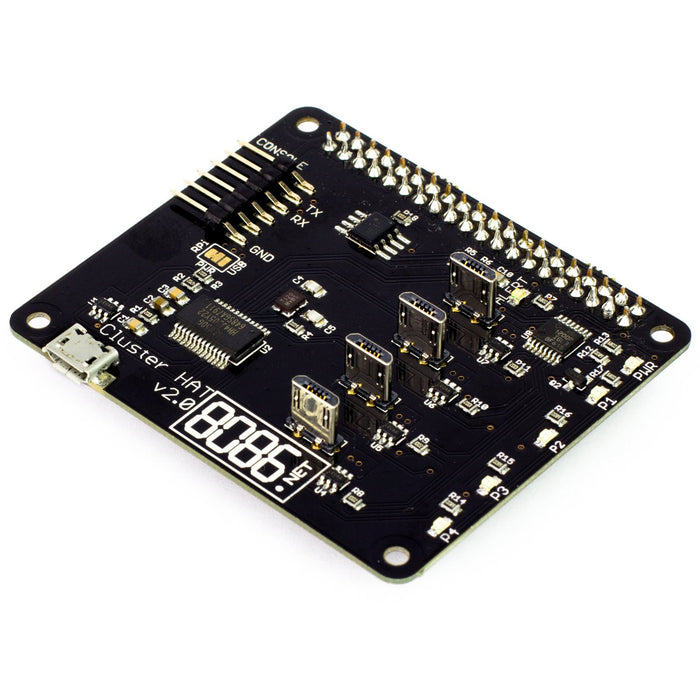

The Cluster HAT interfaces a (Controller) Raspberry Pi A+/B+/2/3 with 4 Raspberry Pi Zeros (NOT included). Configured to use USB Gadget mode, it is an ideal tool for teaching, testing or simulating small scale clusters.
- USB Gadget Mode: Ethernet and Serial Console.
- Onboard 4 port USB 2.0 hub.
- Zeros (not included) are powered via Controller Pi GPIO
- Individual Raspberry Pi Zero power controlled via Controller Pi GPIO
- Connector for Controller Serial Console (FTDI Basic).
- Controller Pi can be rebooted without interrupting power to Pi Zeros (network recovers on boot).

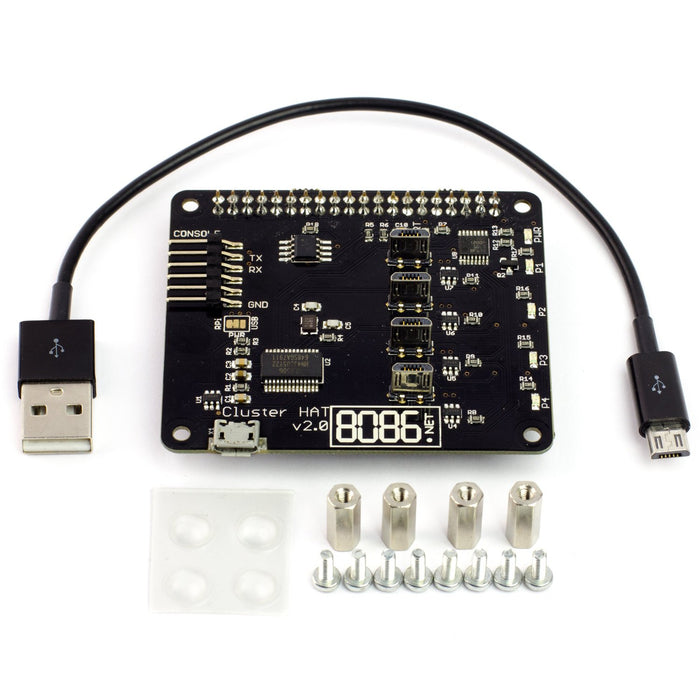

Kit includes:
- Cluster HAT
- HAT standoffs and screws
- Short USB rope (colour may vary)
As with most things there are many ways to configure the ClusterHAT. If you know what you're doing with Linux kernel Gadget mode and networking you can probably skip most of these.
