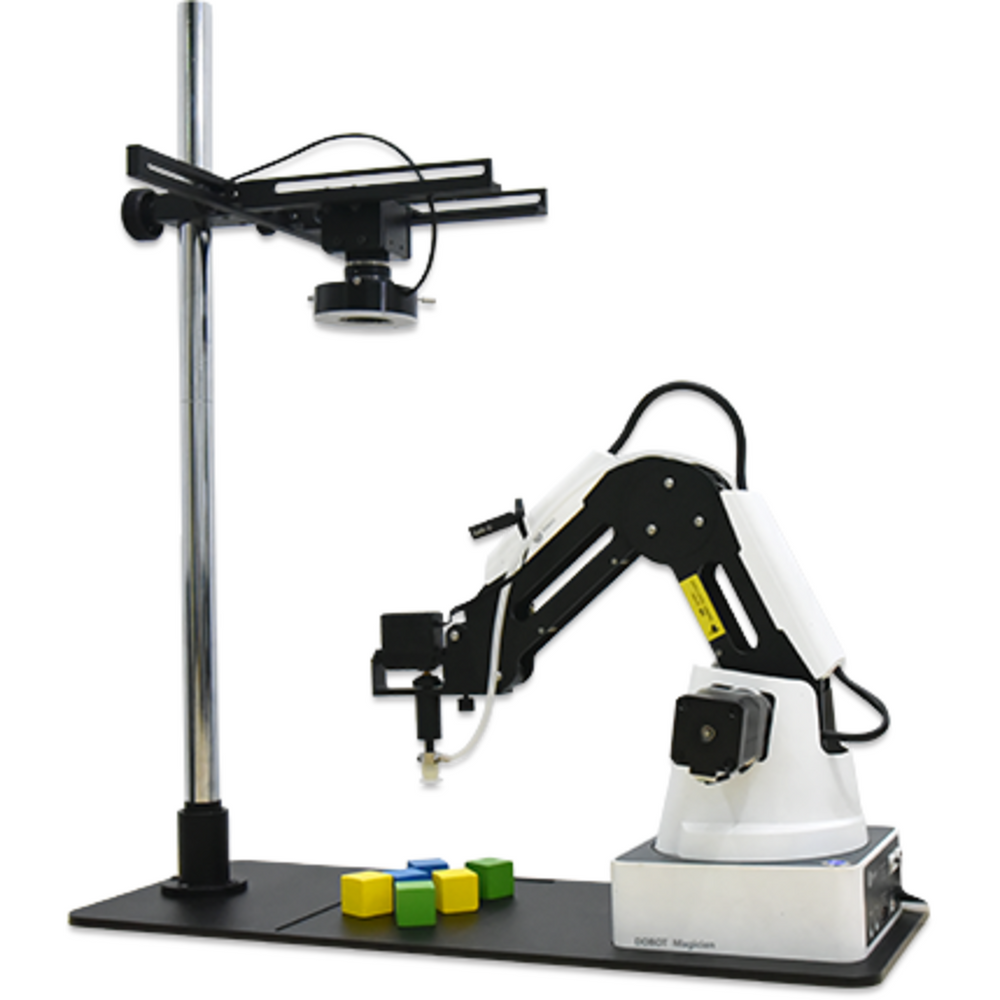

The Robot Vision Kit provides a basic set of hardware platform for robot vision system development.
You can set up the vision kit with Dobot Magician and start to learn how to integrate vision system with robot automation system.
With the system, you can also do some researches on vision, artificial intelligence algorithm-simulation, or develop vision based industrial applications.
Except for the examples of basic robot vision application software, we also provide the source code for you to learn robot-related software development. The demo project includes two parts: robot calibration and colour based sorting.

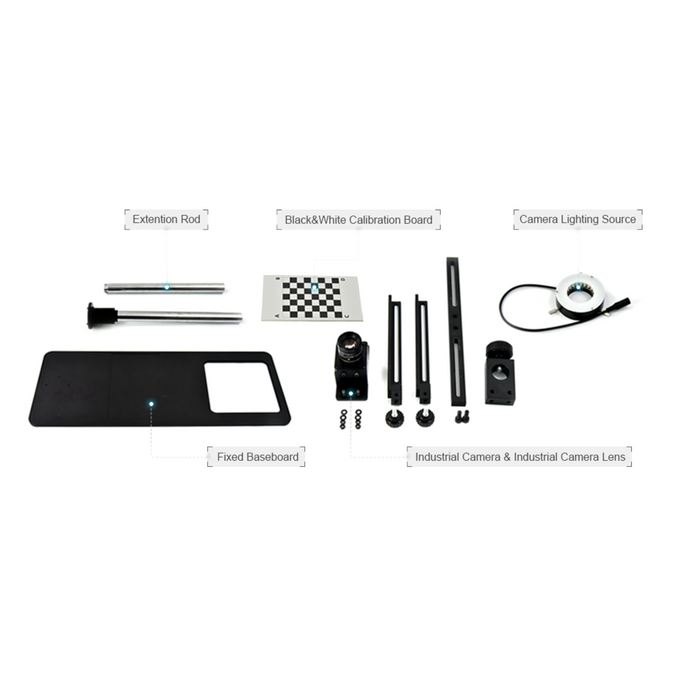

Main Hardware Specification
| Item | Specification | |
| HD Color Industrial Camera | Effective Pixel | 3 million |
| Hue | Color | |
| Frame Rate/Resolution | 12 @2048×1536 | |
| Data Interface | USB 2.0 | |
| White Auxiliary Light Source | Luminous Color | White |
| Illumination | 40000 lux | |
| Brightness | Continuously Adjustable (Range:0~100%),Color Temperature Constant | |
| Camera Lens | Focus | 16mm |
| Aperture | F1.4-F16C | |
| Focus Point | 0.3m-Inf | |
