We can get 100 units into Australia from Elecrow. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 16, 2024.

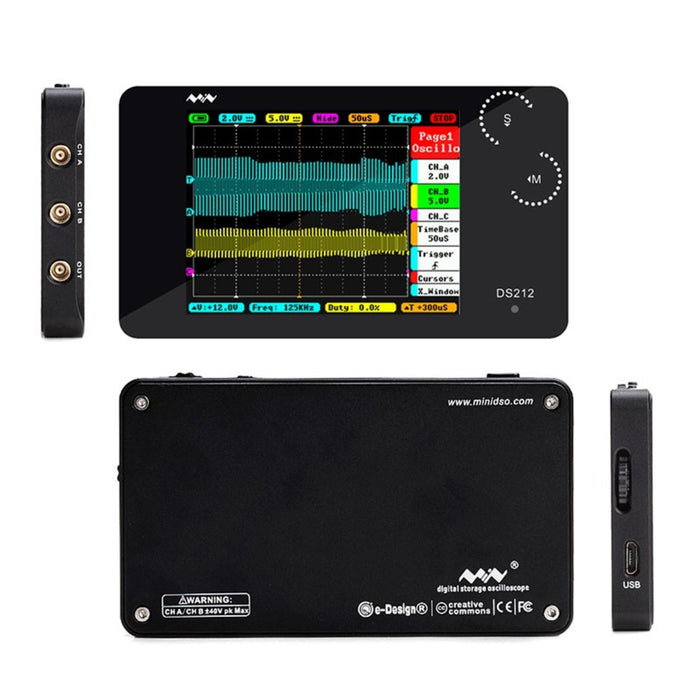

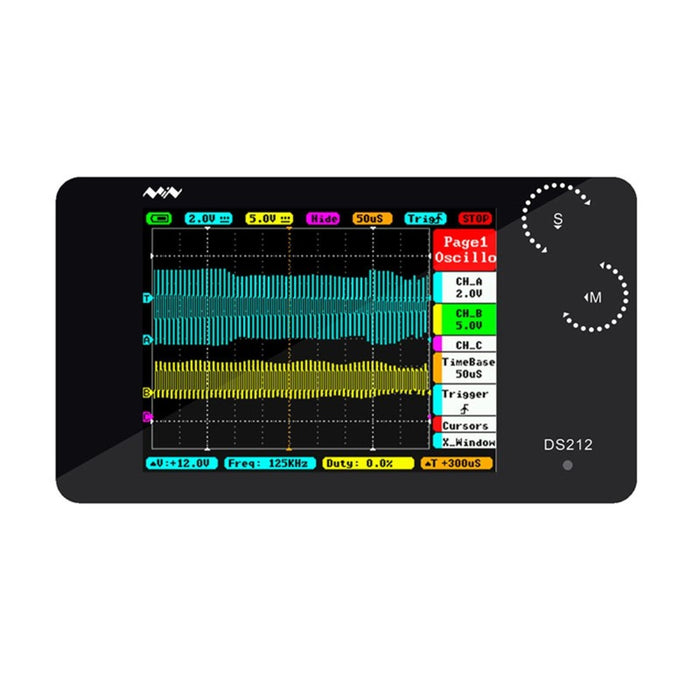

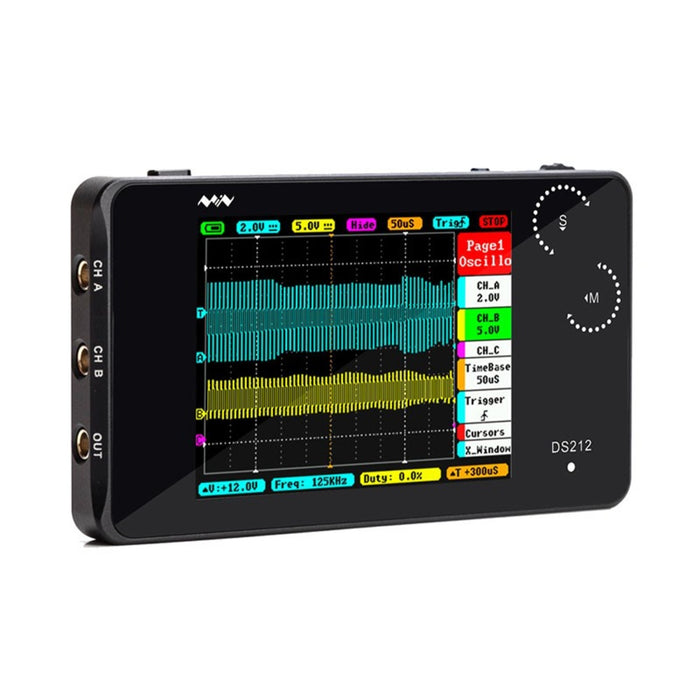

The DS212 pocket oscilloscope is a dual channel digital storage oscilloscope with 320 x 240 color TFT screen and rechargeable battery. The thickness is about 11mm, the volume is small enough to take it anywhere. It’s easy to operate with the gesture of one-click, double-click, press and slide.
This pocket oscilloscope can meet the demands in many fields, such as school experiments, electronic repairing, and electrical engineering.
Specifications
- Sampling rate: 10 Msa/ s (MAX)
- Analog bandwidth: 1MHz
- Sample memory depth: 8K (MAX)
- Analog input impedance: 1MΩ
- Input voltage: ±40V (MAX, X1 probe)
- Coupling mode: AC/ DC
- Vertical sensitivity: 20mv/Div~10V/Div (in 1-2-5 sequence step)
- Horizontal sensitivity: 1uS/Div~2S/Div(in 1-2-5 sequence step)
- Storage: Inbuilt 8MB U disk storage for waveform data and images
- Battery: Internal 500mAh Lithium battery, external USB port
- Display: Color TFT LCD display (320X240 pixels)

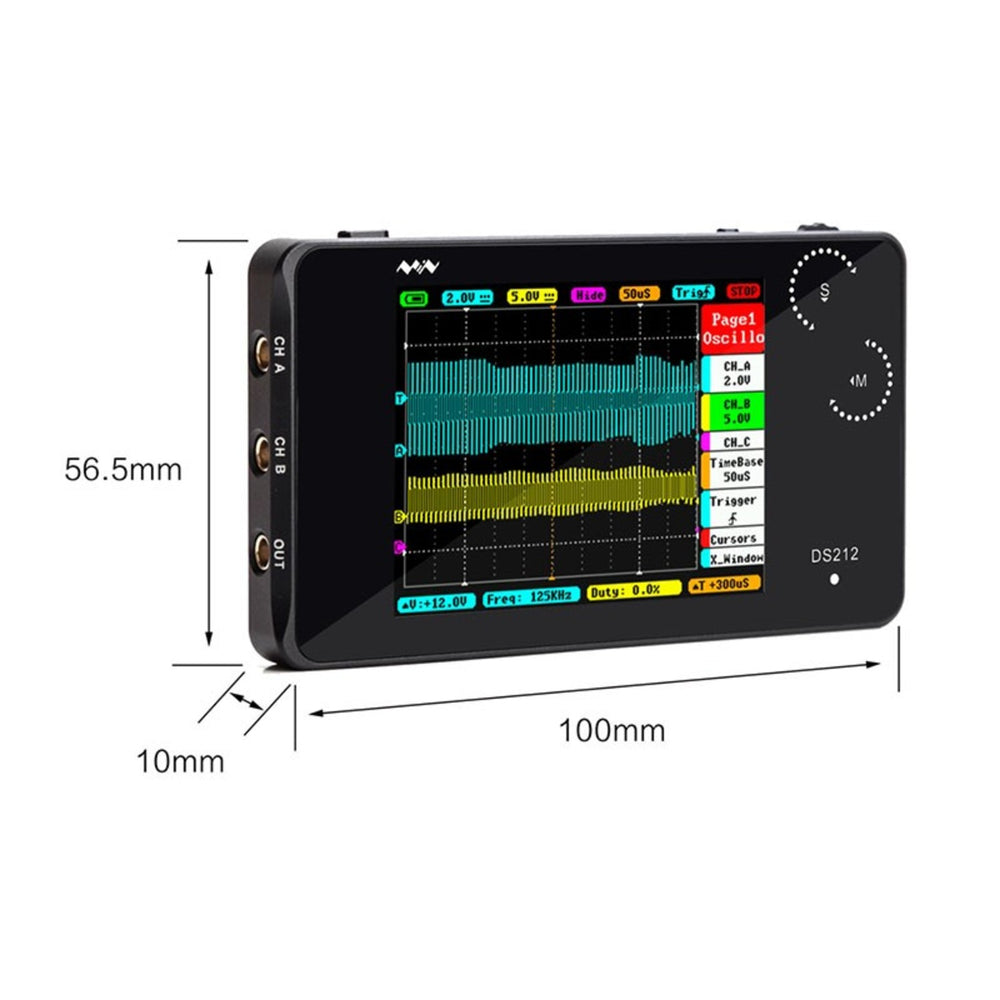

- Size: 100 x 56.5 x 10.7mm
Package list
- DS212 oscilloscope x 1
- Cable clip x 1
- Test hook x 1
- USB cable x 1
- Accessories pack x 1
- User manual x 1
Wiki & External links
- User manual
- Source Code
- Firmware
