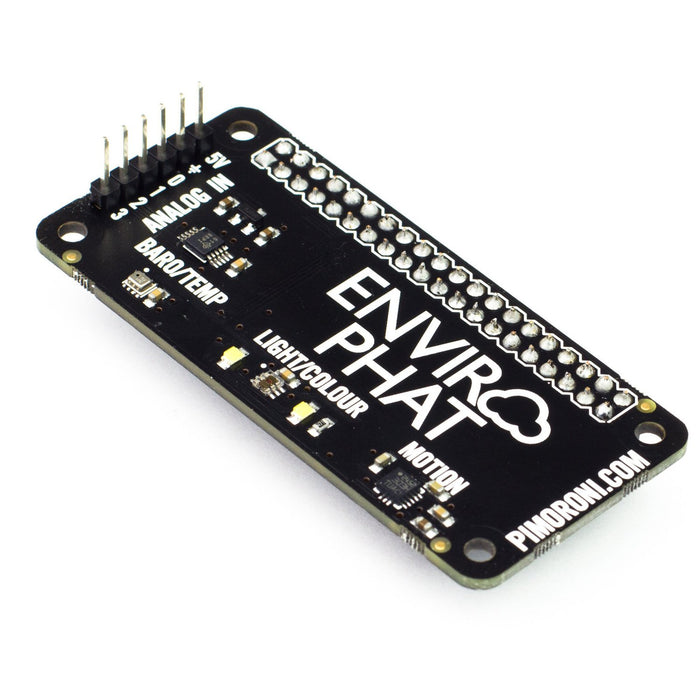

Enviro pHAT

via Pimoroni
$33.76
SKU PR-PIM181

Enviro pHAT packs 4 different sensors, letting you measure temperature, pressure, light level, colour, 3-axis motion, compass heading, and analog inputs. That's up to 10 different variables!

It's ideal for monitoring conditions in your house, garage, or galleon. Set up a web server with Flask and remotely monitor everything from anywhere.

Combining Enviro pHAT with our other HATs and pHATs gives almost endless possibilities: display sensor values on Unicorn pHAT, use Display-O-Tron HAT to display sensor data, display a graph of values with Scroll pHAT, and much, much more.

The MagPi gave Enviro pHAT five stars and called it a "fun, easy-to-use add-on with plenty of possibilities".

Features

  • BMP280 temperature/pressure sensor
  • TCS3472 light and RGB colour sensor
  • Two LEDs for illumination
  • LSM303D accelerometer/magnetometer sensor
  • ADS1015 4-channel 3.3v, analog to digital sensor (ADC)
  • Enviro pHAT pinout
  • Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
  • Python library

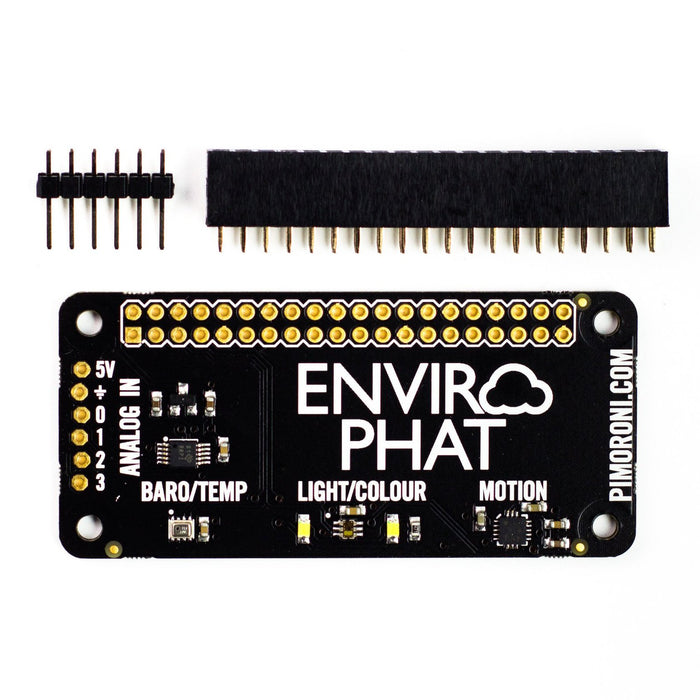

  • Female header and ADC male header require soldering

Software

We've put together a comprehensive Python library to make using Enviro pHAT really simple, as well as examples of motion detection and temperature threshold triggering.

Our software does not support Raspbian Wheezy.
