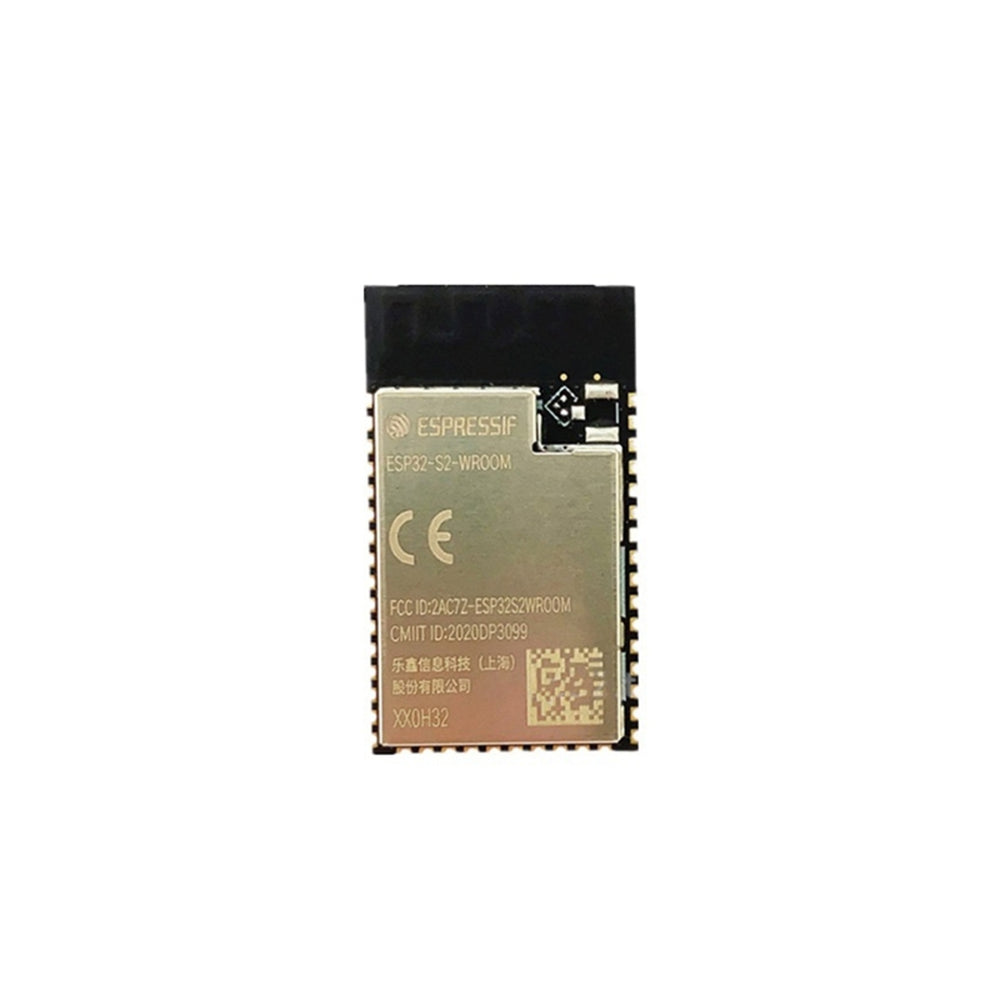

ESP32-S2-WROOM WiFi Module Based on ESP32-S2 Chip with PCB Antenna
We have 8 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 100 units into Australia from Elecrow. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 16, 2024.
ESP32-S2-WROVER and ESP32-S2-WROVER-I use ESP32-S2 chip. The ESP32-S2 chip is equipped with an Xtensa® 32-bit LX7 single-core processor with a working frequency of up to 240 MHz. The user can turn off the power of the CPU and use the low-power coprocessor to monitor the status change of the peripheral or whether some analog quantities exceed the threshold. ESP32-S2 also integrates a wealth of peripherals, including SPI, I2S, UART, I2C, LED PWM, LCD interface, Camera interface, ADC, DAC, touch sensor, temperature sensor and up to 43 GPIOs, as well as a full-speed USB 1.1 On-The-Go (OTG) interface.
ESP32-S2-WROVER uses PCB board antenna, ESP32-S2-WROVER-I uses IPEX antenna. Both modules are equipped with 4 MB SPIflash and 2 MB SPI PSRAM.
Feature
Single-core 32-bit Wi-Fi MCU
Excellent safety performance
Powerful function, wide range of uses
Rich peripheral interfaces
Low power consumption
Application
Universal low-power IoT sensor hub
Universal low-power IoT data logger
Camera video streaming
OTT TV box/set-top box equipment
USB device
Speech Recognition
Home automation
Smart home control panel
Wi-Fi toys
Wearable electronics
Package List
ESP32-S2-WROOM x 1
Wiki & External link
- User manual
