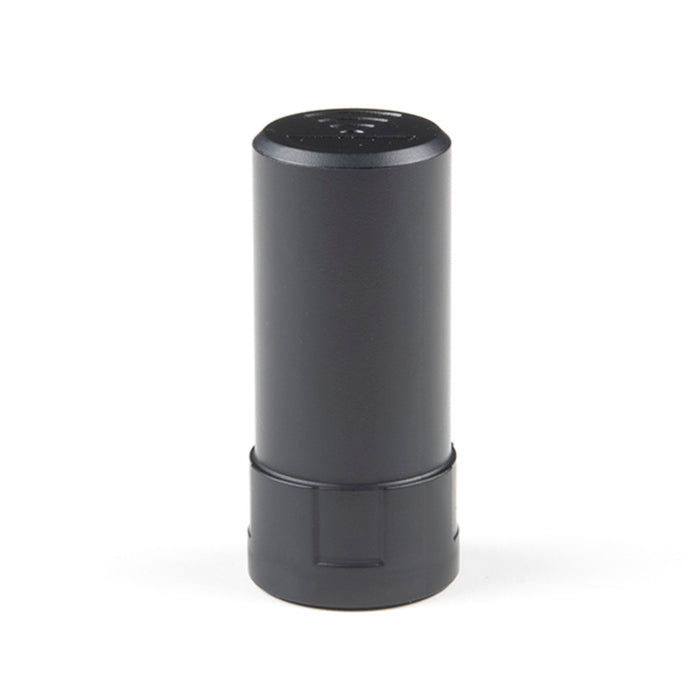

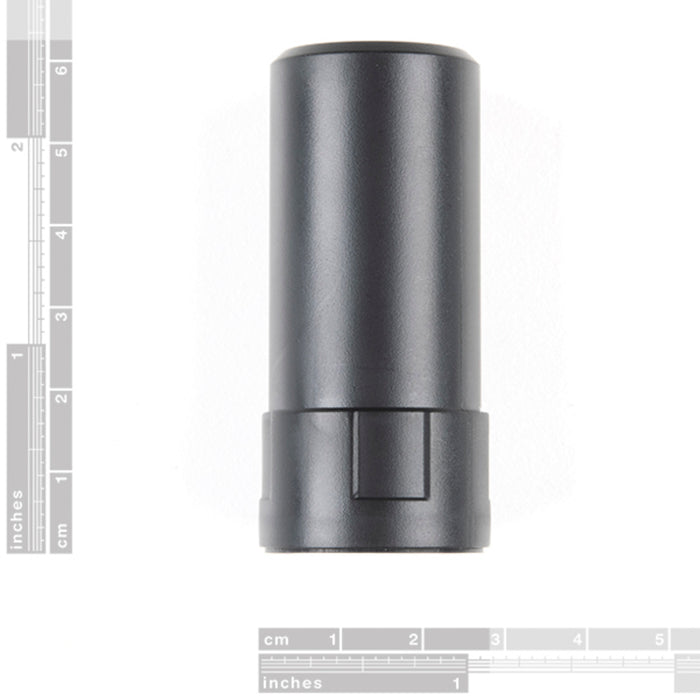

The BT-560 antenna is a small, very light weight GNSS/GPS L1/L2 multiband antenna for GPS, GLONASS, Galileo, and BeiDou constellations. Designed for aerial and portable applications, the BT-560 weighs in at 15.9 grams with a standard SMA connector. The BT-560 includes a small compressible o-ring around the base to increase weatherproofing when installed against an enclosure. This antenna is a good choice for applications where you have a clear view of the sky. If you can handle the extra weight, the u-blox ANN-MB-00 or BT-147 will have better reception performance.
Designed for the latest u-blox F9 platform it provides a fast, easy, and reliable multi-band antenna solution but can be used with any GPS/GNSS receiver that can benefit from the L1/L2 dual reception. While this antenna works great with normal L1 GPS/GNSS receivers it will not make your $20 receiver into a $200 receiver. Please check your receiver to verify it is capable of using the L1 and L2 signals that this antenna outputs.

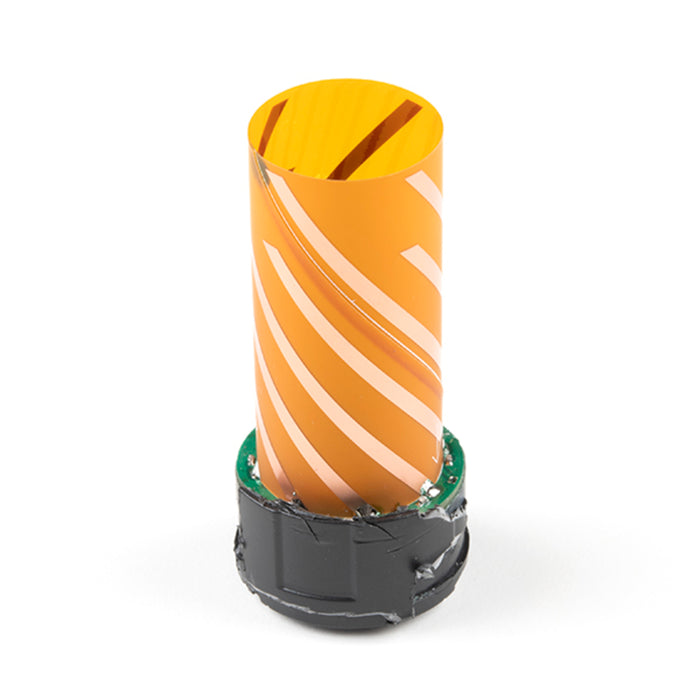

We disassembled a unit because we love to see how things work! The antenna incorporates a flexible dual helical design and three HC1400P03S hybrid couplers.
Note: This is a passive antenna meaning it does not have an onboard amplifier. You will need a clear view of the sky and a receiver capable of handling lower gain.

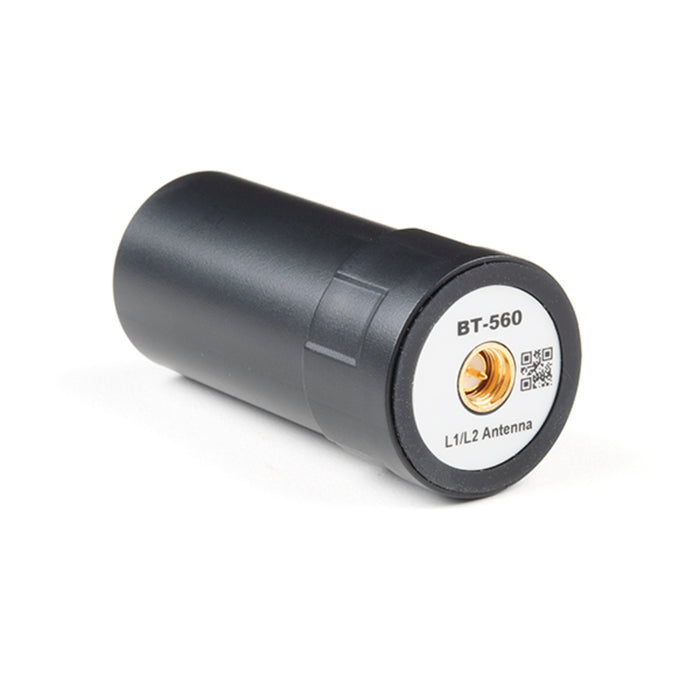

Note: For the curious, the QR code is the unique serial number of the antenna composed of the manufacturing date and unit build number.
Experimental Product: SparkX products are rapidly produced to bring you the most cutting edge technology as it becomes available. These products are tested but come with no guarantees. Live technical support is not available for SparkX products. Head on over to SparkFun's forum for support or to ask a question.
