Gravity: Arduino Digital Weight Sensor

Name: Gravity: Arduino Digital Weight Sensor
Brand: DFRobot
SKU: DF-SEN0160
Price: 29.99 AUD
Availability: InStock

via DFRobot

$29.99

SKU DF-SEN0160

Quantity

We have 1 units in our Sydney Warehouse available for immediate dispatch.

We can get a further 306 units into Australia from DFRobot. If you order today, we can dispatch this stock between Nov 19, 2024 - Dec 06, 2024.

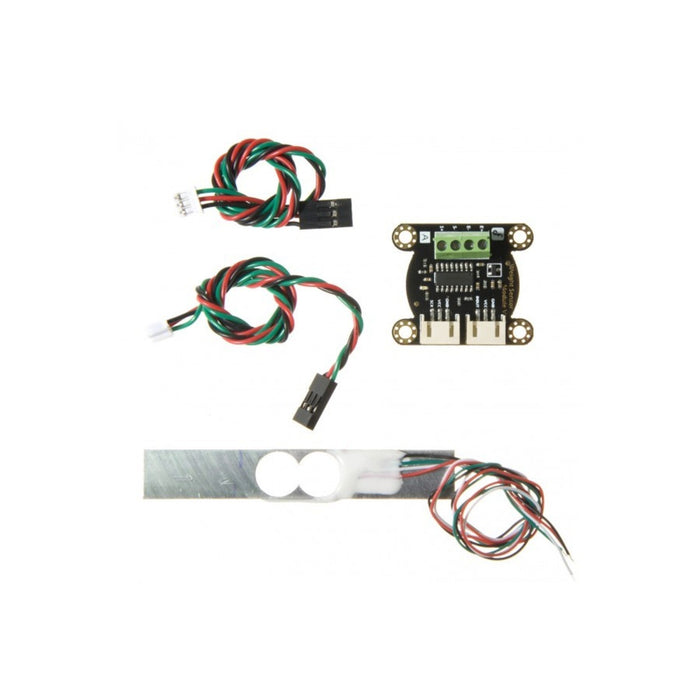

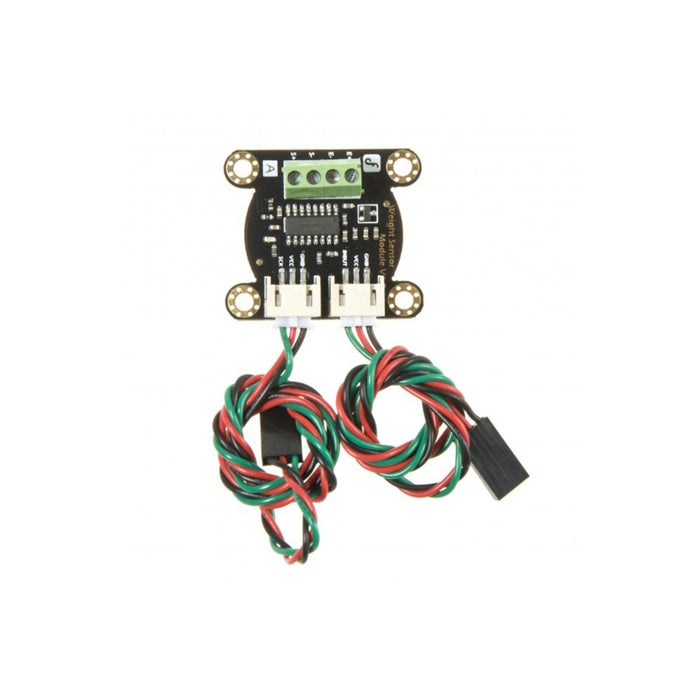

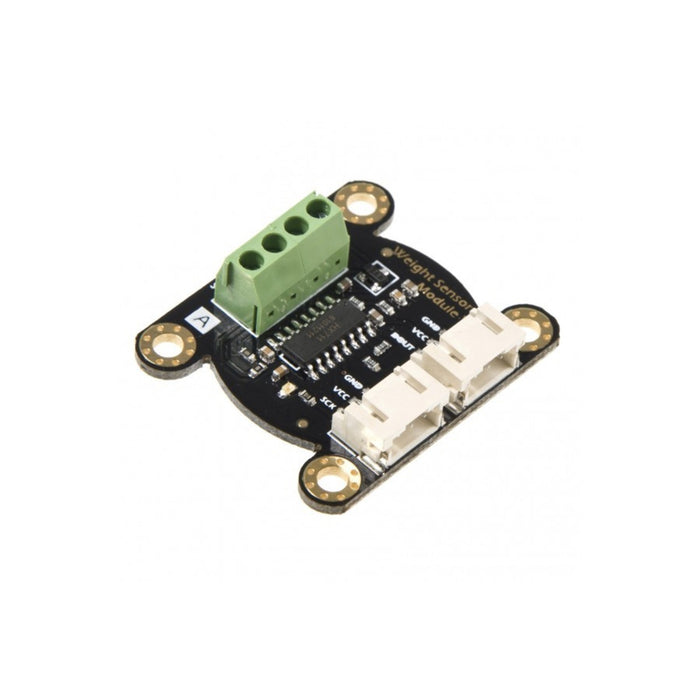

This Electronic Arduino Weight Sensor is able to detect 1kg weight. It based on HX711, a precision 24-bit analog-to-digital converter designed for weight scale and industrial control applications to interface directly with a bridge sensor.

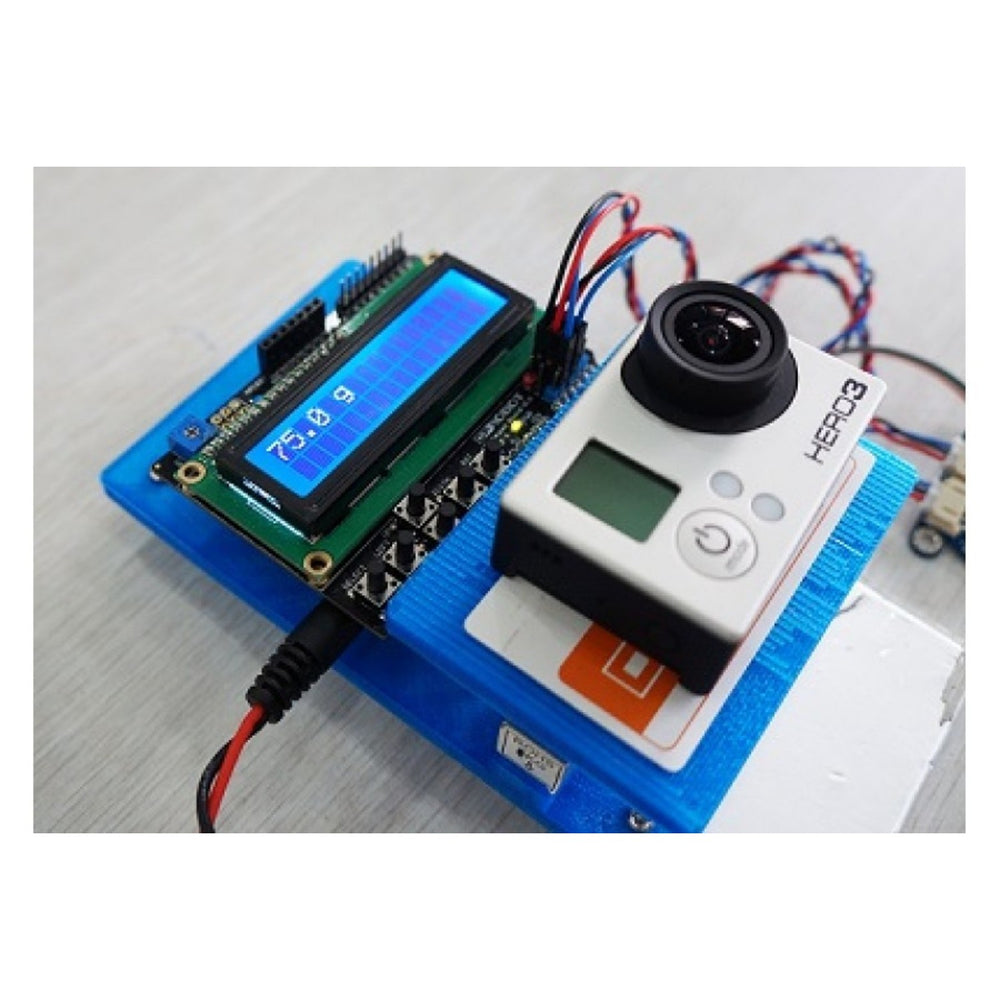

This Electronic arduino weight sensor lowers the cost of the electronic scale, and at the same time improving the performance and reliability. The interface of this sensor uses DFRobot Gravity Interface. The output adopts compact terminal that makes the sensor easier to connect. It's the best choose for electronic enthusiast to do some tiny home scale.

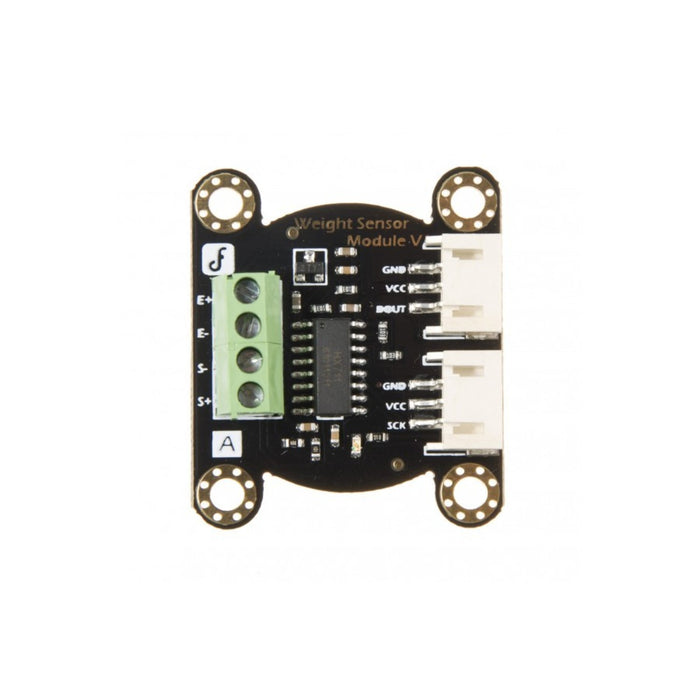

Sensor connection Note: Red Line -- E+

Black Line -- E-

White Line -- S-

Green Line -- S+

SPECIFICATIONS

24-Bit Analog-to-Digital Converter for Weight Scales (HX711)

Two selectable differential input channels
On-chip active low noise PGA with selectable gain of 32,64 and 128
On-chip power supply regulator for load-cell and ADC analog power supply
On-chip oscillator requiring no external component with optional external crystal
On-chip power-on-rest
Simple digital control and serial interface: pin-driven controls, no programming needed
Selectable 10SPS or 80SPS output data rate
Simultaneous 50 and 60Hz supply rejection
Supply Voltage: 2.6V~5.5V
Current: <1.6mA
Working temperature: -40~85°C
16 pin SOP-16 package
