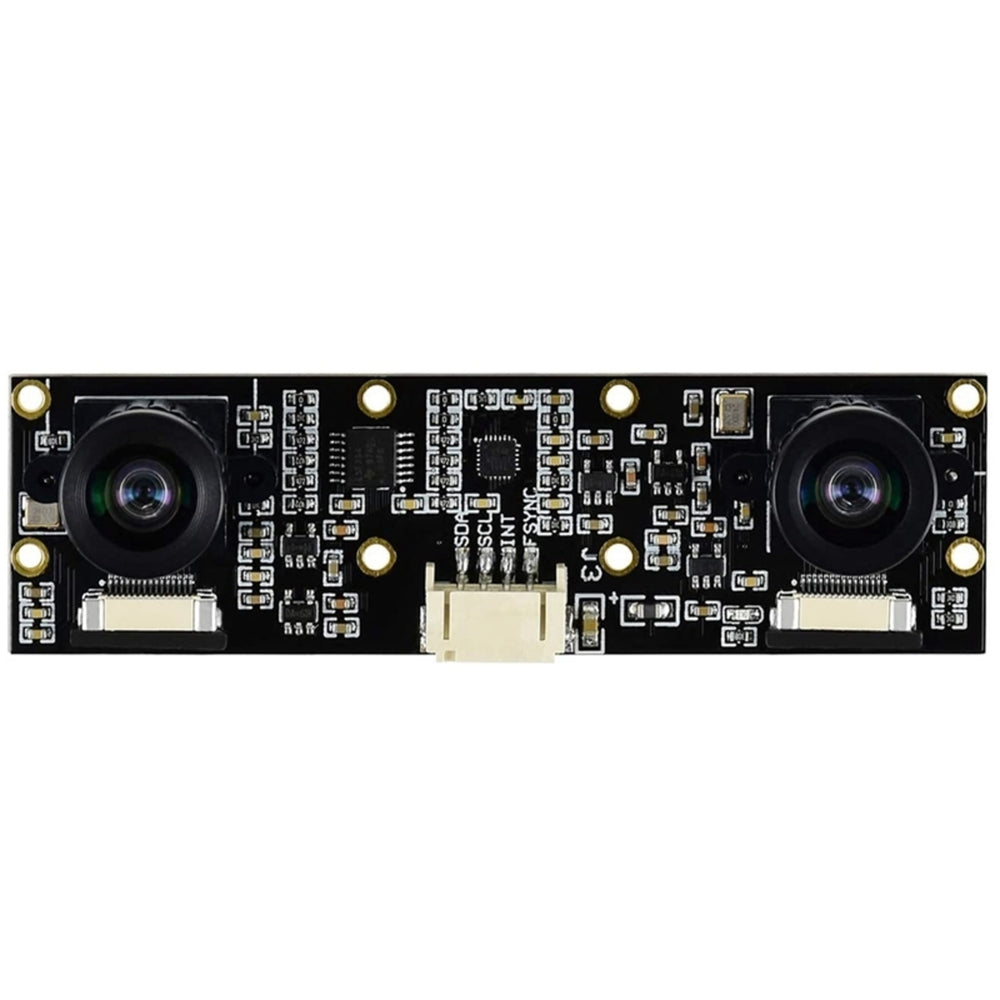

IMX219-83 8MP 3D Stereo Camera Module for Jetson Nano/ Xavier NX
via Elecrow
$124.38
SKU EC-RPA20902A
This is a 3D stereo camera module which features dual IMX219 cameras onboard, 8Megapixels on each camera. It is suitable for AI vision applications like depth vision and stereo vision. Also, you can experience better quality video capture from this camera and build more demanding projects!
The module supports Jetson Nano and NVIDIA Jetson Xavier NX, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.
Feature:
- 3280x2464 high resolution
- High FOV (field-of-view) to capture more areaĀ
- Integrated InvenSense ICM20948 motion tracking sensor for better accuracy
- High-quality camera with two 8 megapixel Sony IMX219 image sensors
- Perfect for artificial intelligence vision applications such as depth vision and stereo vision
Ā Application:
- AI vision applications like depth vision and stereo vision.
Ā Specification:
- 8 Megapixels
- Sensor: Sony IMX219
- Resolution: 3280 x 2464 (per camera)
Lens specifications:
- CMOS size: 1/4inch
- Focal Length: 2.6mm
- Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: less than 1%
- Baseline Length: 60mm
ICM20948:
Accelerometer:
- Resolution: 16-bit
- Measuring Range (configurable): +/- 2, +/- 4, +/- 8, +/- 16g
- Operating Current: 68.9uA
Gyroscope:
- Resolution: 16-bit
- Measuring Range (configurable): +/- 250, +/- 500, +/- 1000, +/- 2000 degree/sec
- Operating Current: 1.23uA
Magnetometer:
- Resolution: 16-bit
- Measuring Range: +/- 4900Ī¼T
- Operating Current: 90uA
Board size: 24mm x 85mm
Package size: 115 x 65 x 32mm

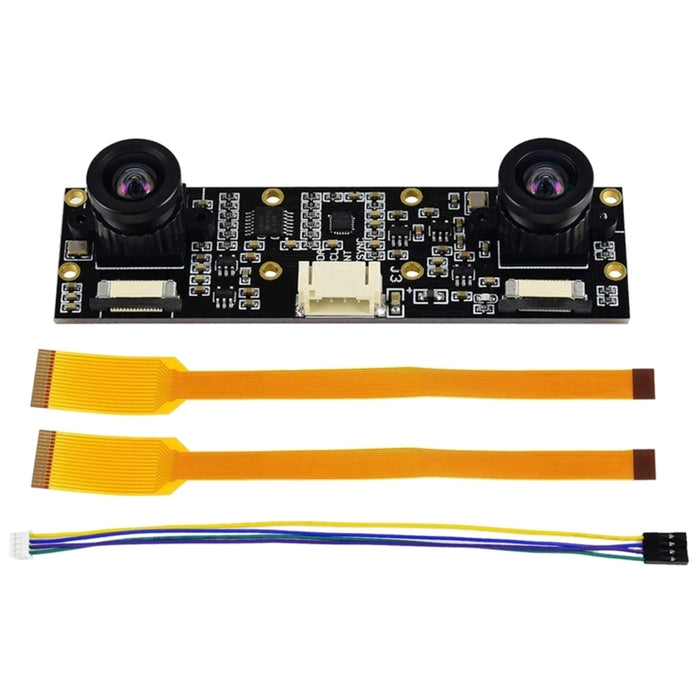

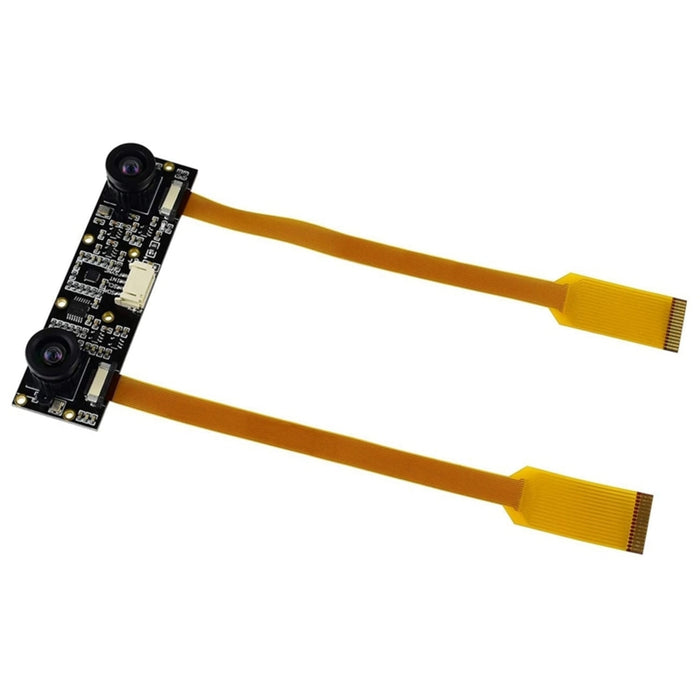

Parts ListĀ
1 x IMX219-83 8MP 3D Stereo Camera Module
2 x FFC CableĀ
1 x PH2.0 4-pin wire
