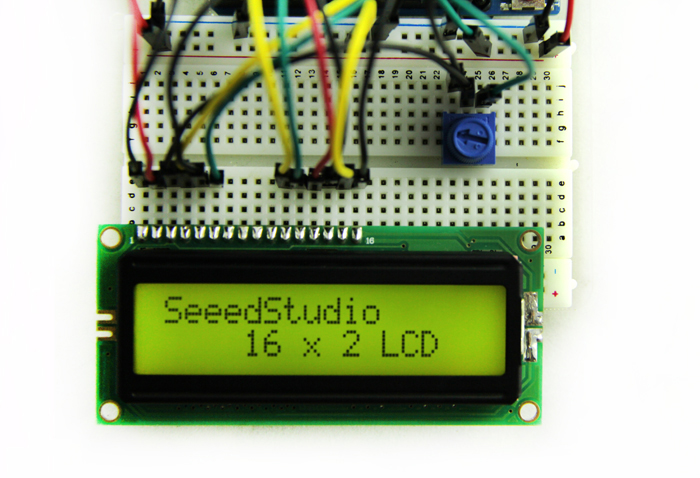

This is a basic 16 character by 2 line display with black text on yellow background. Utilizes the extremely common HD44780 parallel interface chipset.
Specification
- Compatible with Arduino LiquidCrystal Library
- LCD Display Mode: STN, Positive, Transflective
- Viewing Angle: 6:00
- Driving Method : 1/16 duty, 1/5 bias
- Back Light : Yellow-Green LED backlight
- Text Color: Black
- Outline Dimension: 80 x 36 x 15.8 MAX
- Character Res: 16 x 2
- Driver Voltage: 5 VDC
