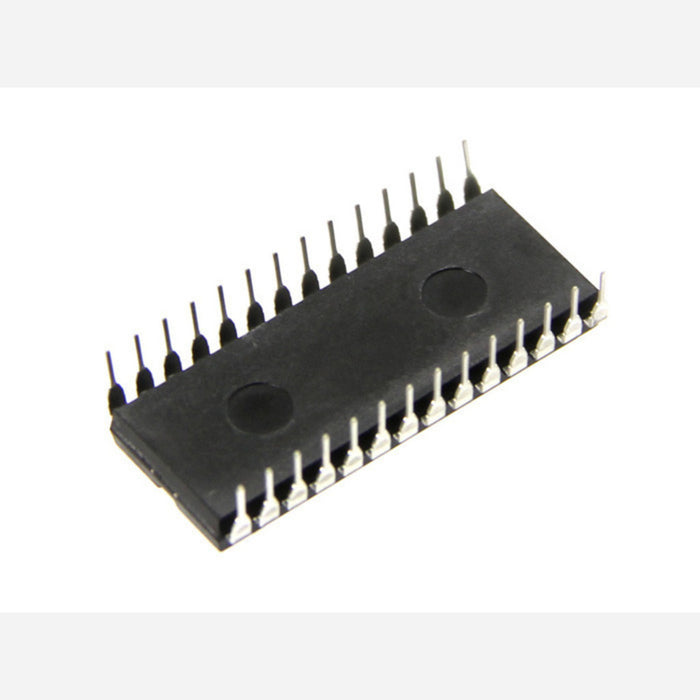

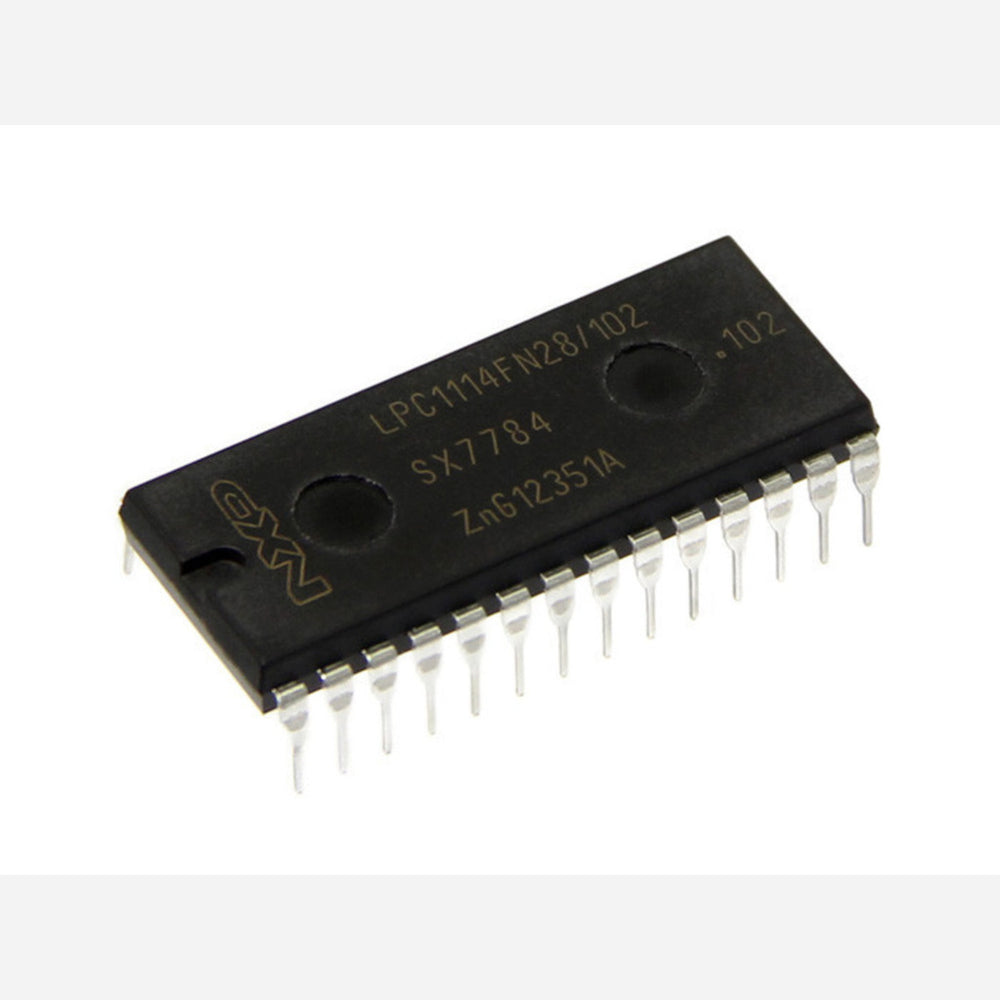

The LPC1114FN28 is an ARM Cortex-M0 based, mbed enabled microcontroller, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.

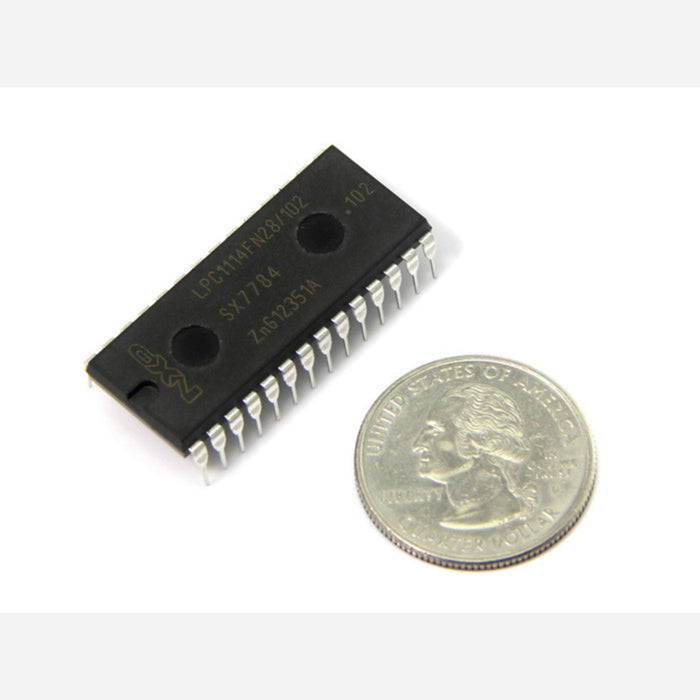

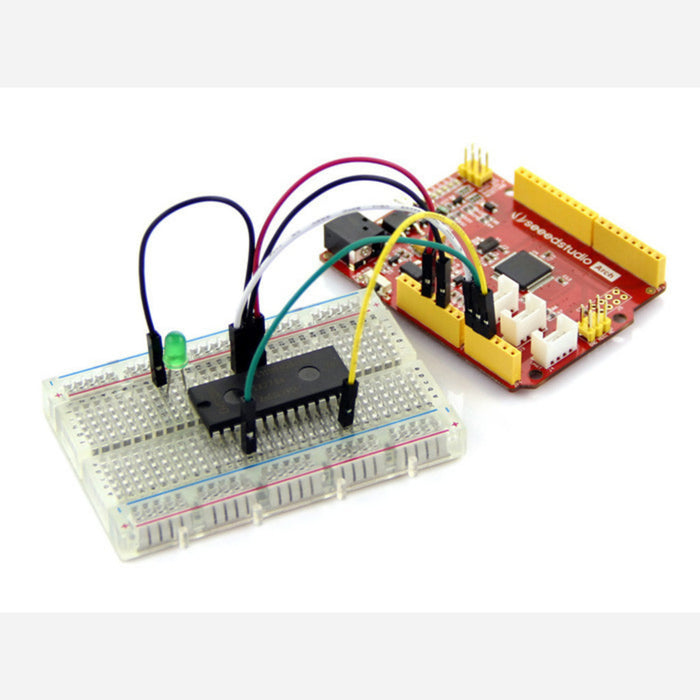

It is made particularly unique by the fact that it is available in a 28-pin dual-in-line package, making it perfect for breadboarding, and/or replacing 8 bit micro-controllers that you may have used just because they are available in a DIP package.
Features:
- 28-pin dual-in-line package(DIP)
- 32-bit MCU
- Low power
Specification:
- Package: DIP28
- Power: 1.8V to 3.6V
- Frequency: Up to 50Mhz
- Flash: 32KB
- RAM: 4KB
- Peripheral: I2C, UART, SPI, ADC
Documents:
- Getting started with mbed LPC1114
- NXP LPC11xx Data sheet
- NXP LPC11xx User manual
- NXP LPC1114 Errata sheet
Picture:
- Pinout
Software:
