Description
This M5GO IOT Kit is a multi-Unit feast with 6 M5units inside (ENV, IR, RGB, PIR, ANGLE, HUB). Just like other M5Stack development kit, M5GO is powered by ESP32.
Every M5stack development kit can be programmed through Arduino IDE, WebIDE UIFlow, Micropython, and Blockly, simplifying the development process for those requiring a joint hardware and software solution. Not only does M5stack have far-reaching IoT applications in industry, agriculture, and home, but it also empowers students to learn to code in STEM classrooms.
This M5GO kit is specifically designed for STEM education. The pack includes 1 M5GO conroller + 6 M5units + plenty of accessories. Having all those goods, together with the Blockly program platform, allows the school students to explore the engineering world , making their own IoT product and implement brilliant ideas into real life.

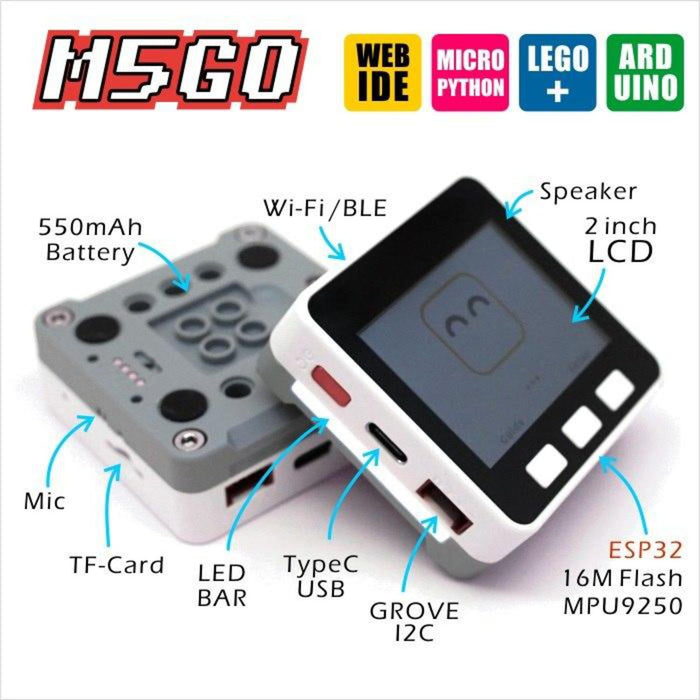

Product Features
- 5V DC power supply
- USB Type-C
- ESP32-based
- 16 MByte flash + 520K RAM
- MPU9250
- Speaker, 3 Buttons, LCD(320*240), 1 Reset
- 2.4G Antenna: Proant 440
- TF card slot (16G Maximum size)
- Battery Socket & 600 mAh Lipo Battery
- Extendable Pins & Holes
- Grove Port
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, Arduino
ESP32 Features
- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth (classic and BLE)
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- SD-card interface support

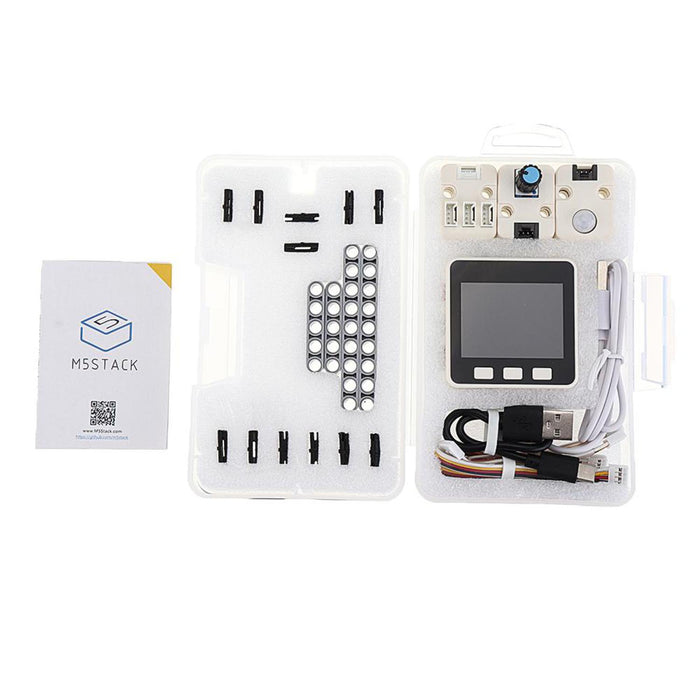

Kit includes
- 1x white M5Core controller

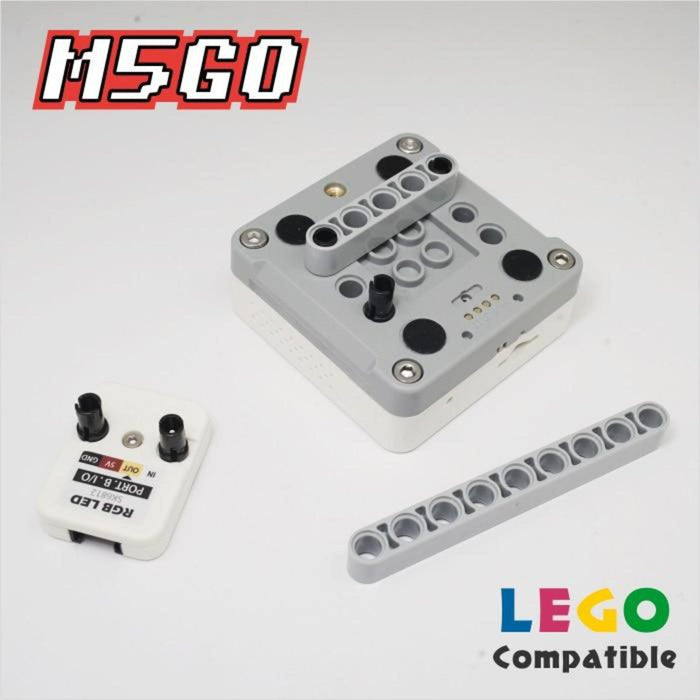

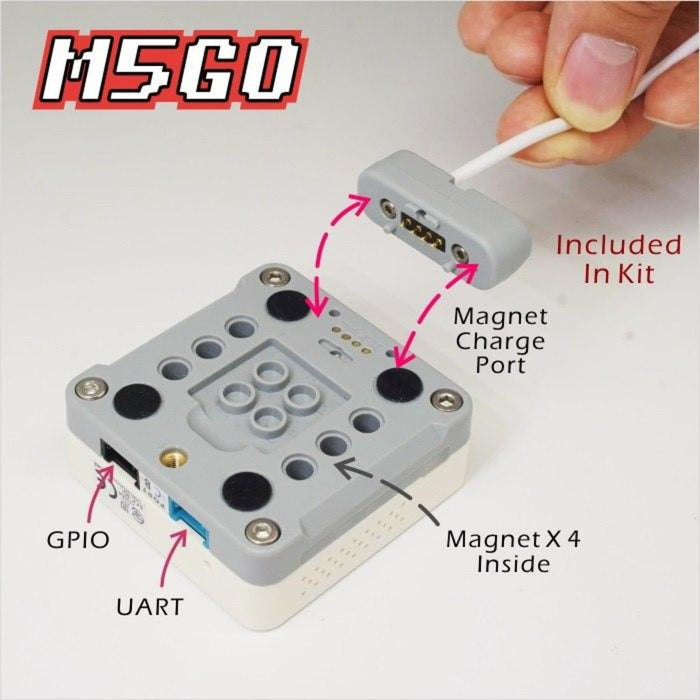

- 1x M5GO Base( LEGO compatible)

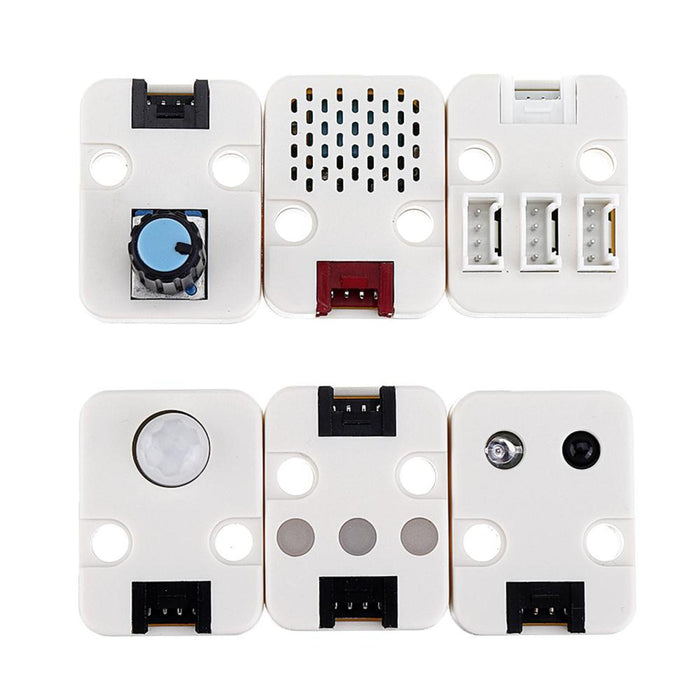

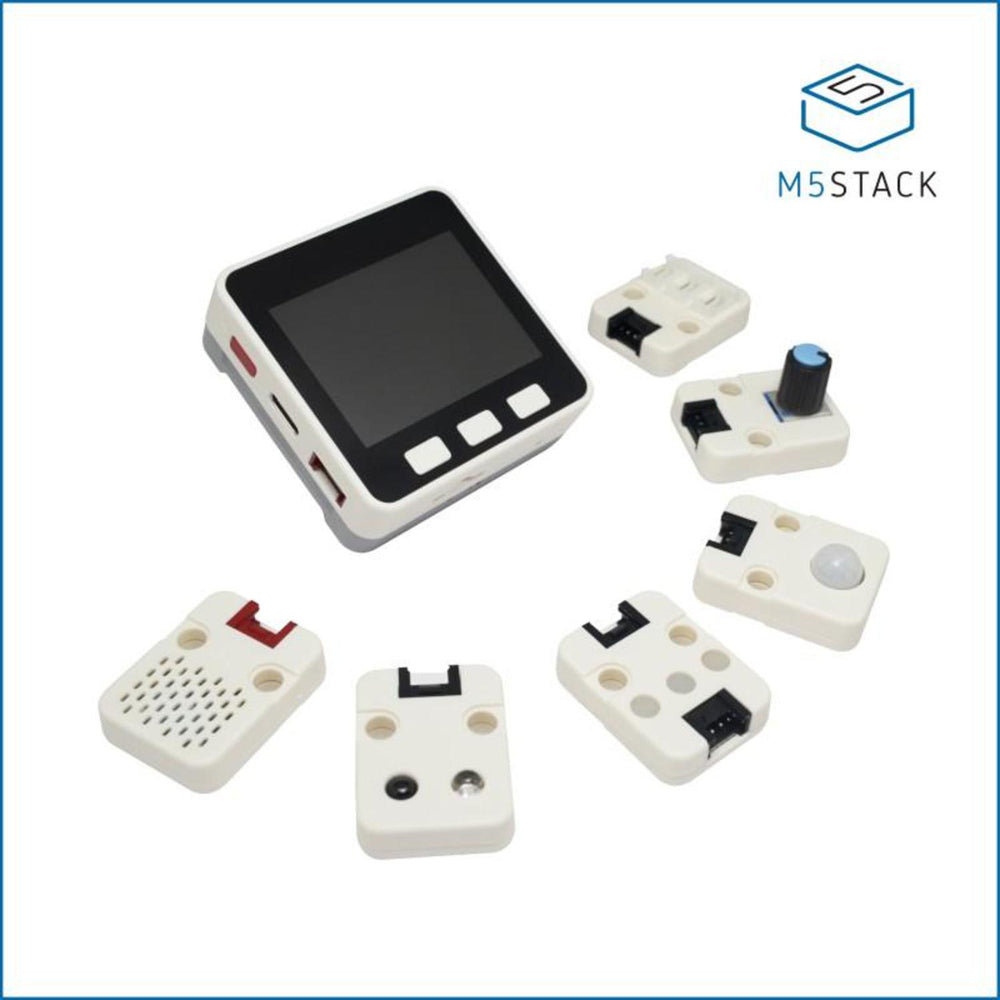

- 6x Units(ENV, IR, RGB, PIR, ANGLE, HUB)
- 4x LEGO connectors and bricks
- 3x GROVE cable
- Type-C USB cable
- User Manual
Documents
Learn
Get-started Tutorial
https://docs.m5stack.com/#/zh_CN/quick_start/m5core/m5stack_core_quick_start
More information
Peripherals Pin Map
LCD & TF card
LCD ：320x240 TF card Maximum size 16GB
| ESP32 Chip | GPIO23 | GPIO19 | GPIO18 | GPIO14 | GPIO27 | GPIO33 | GPIO32 | GPIO4 |
| ILI9341 | MOSI | / | CLK | CS | DC | RST | BL | |
| TF Card | MOSI | MISO | CLK | CS |
Button & Speaker
| ESP32 Chip | GPIO39 | GPIO38 | GPIO37 | GPIO25 |
| Button Pin | BUTTON A | BUTTON B | BUTTON C | |
| Speaker | Speaker Pin |
GROVE Port A & IP5306
We've use the customized I2C version of IP5306, on power management. Its I2C address is 0x75. Click here to check its datasheet
| ESP32 Chip | GPIO22 | GPIO21 | 5V | GND |
| GROVE A | SCL | SDA | 5V | GND |
| IP5306 | SCL | SDA | 5V | GND |
9-Axis Posture Sensor MPU9250
I2C address 0x68
| ESP32 Chip | GPIO22 | GPIO21 | 5V | GND |
| MPU9250 | SCL | SDA | 5V | GND |
M5GO Base Port
GROVE Port B
| ESP32 Chip | GPIO36 | GPIO26 | 5V | GND |
| GROVE B | GPIO36 | GPIO26 | 5V | GND |
GROVE Port C
| ESP32 Chip | GPIO16 | GPIO17 | 5V | GND |
| GROVE C | RXD | TXD | 5V | GND |
LED Bar & Micphone & Speaker
| ESP32 Chip | GPIO15 | GPIO34 | GPIO25 |
| LED Bar | SIG Pin | ||
| MIC | MIC Pin | ||
| Speaker | Speaker Pin |
Technical details
| Resources | Parameter |
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash Memory | 16MB (old: 4MB) |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| LCD Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9341 |
| Speaker | 1W-0928 |
| Battery | 600mAh @ 3.7V |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Size | 54 x 54 x 12.5 mm |
| Case Material | Plastic ( PC ) |
