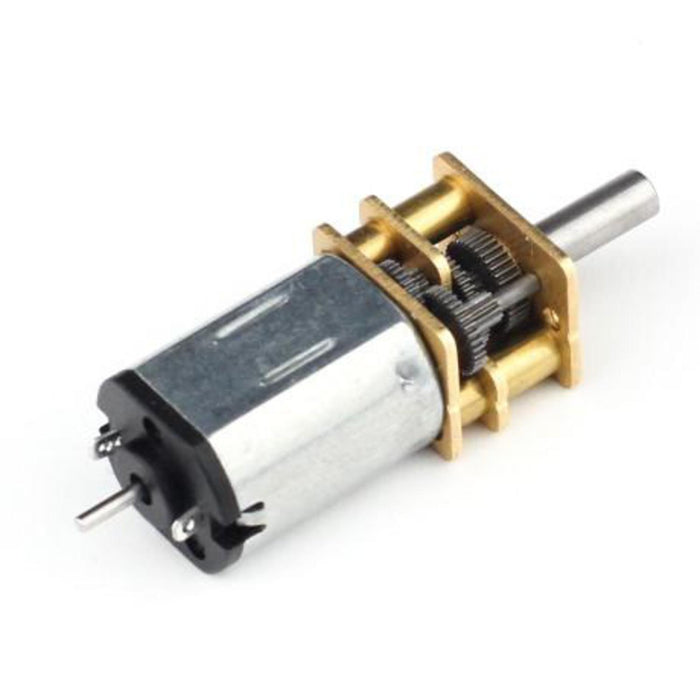

This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.
| Ratio | Speed @ 6V | Free-run current @ 6V | Stall torque @ 6V | Stall current @ 6V |
|---|---|---|---|---|
| 11:1 | 1800±10% rpm | 80mA (160mA max) | 0.12kg. cm | 650mA |
| 20:1 | 1050±10% rpm | 90mA (180mA max) | 0.26kg. cm | 850mA |
| 50:1 | 420±10% rpm | 80mA (160mA max) | 0.5kg. cm | 770mA |
| 298:1 | 75±10% rpm | 60mA (120mA max) | 2.5kg. cm | 900mA |
| 1006:1 | 14.2±10% rpm | 28mA (56mA max) | 5.3kg. cm |
- All of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
- Long (9mm), 3 mm-diameter D-shaped metal output shaft.
- 4.5mm long, 1mm diameter back shaft, great for optical encoders!
