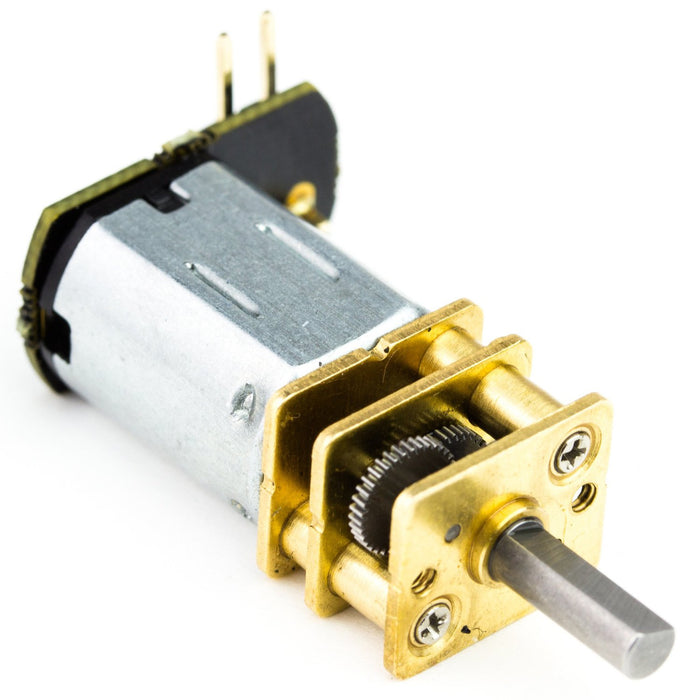

Micro Metal Gearmotor with Push Header Shim - 11:1
Micro Metal Gearmotor with Push Header Shim - 11:1

Micro Metal Gearmotor with Push Header Shim - 11:1

via Pimoroni
$14.47
SKU PI-COM0811

We have 1 units in our Sydney Warehouse available for immediate dispatch.

We can get a further 100 units into Australia from Pimoroni. If you order today, we can dispatch this stock between Nov 19, 2024 - Nov 26, 2024.

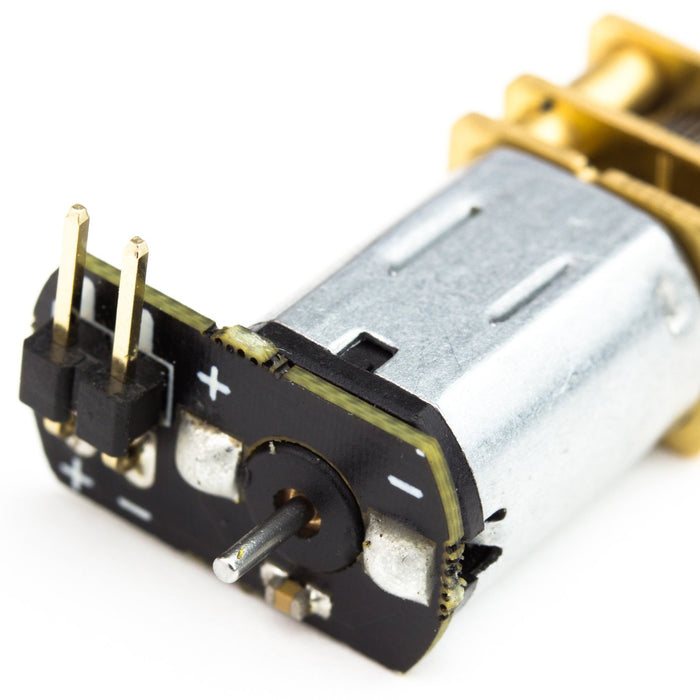

Our ever popular micro metal gearmotor, now available with a solderless push header shim for ease of prototyping!

Connect your motor to your project with some jumper jerky and you're good to go!

This gearmotor is a miniature brushed DC motor with a metal gearbox available in a range of gearing ratios depending on use.

Ratio Speed @ 6V Free-run current @ 6V Stall torque @ 6V Stall current @ 6V
11:1 1800±10% rpm 80mA (160mA max) 0.12kg. cm 650mA
20:1 1050±10% rpm 90mA (180mA max) 0.26kg. cm 850mA
50:1 420±10% rpm 80mA (160mA max) 0.5kg. cm 770mA
298:1 75±10% rpm 60mA (120mA max) 2.5kg. cm 900mA
1006:1 14.2±10% rpm 28mA (56mA max) 5.3kg. cm
  • All of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
  • Long (9mm), 3 mm-diameter D-shaped metal output shaft.
