Description
M5Stick is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT development board.
What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your IoT prototying in a very short time. It will takes away a lot of the pains form the development process.
M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code & engineering community that will help you maximum your benefit in every step of the developing process.
Product Features
- 5V DC power supply
- USB Type-C
- ESP32-based
- 4 MByte Flash + 520K RAM
- 9-Axis IMU MPU9250(only gray type)
- Red LED
- Buzzer
- IR transmitter
- 1 Buttons, OLED(1.3 inch), 1 Reset
- 2.4G Antenna: Proant 440
- 80 mAh Lipo Battery
- Extendable Socket
- Grove Port
- Wearable & Wall mounted
- Development Platform UIFlow, MicroPython, Arduino
ESP32 Features
- 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth (classic and BLE)
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- SD-card interface support
Pack List

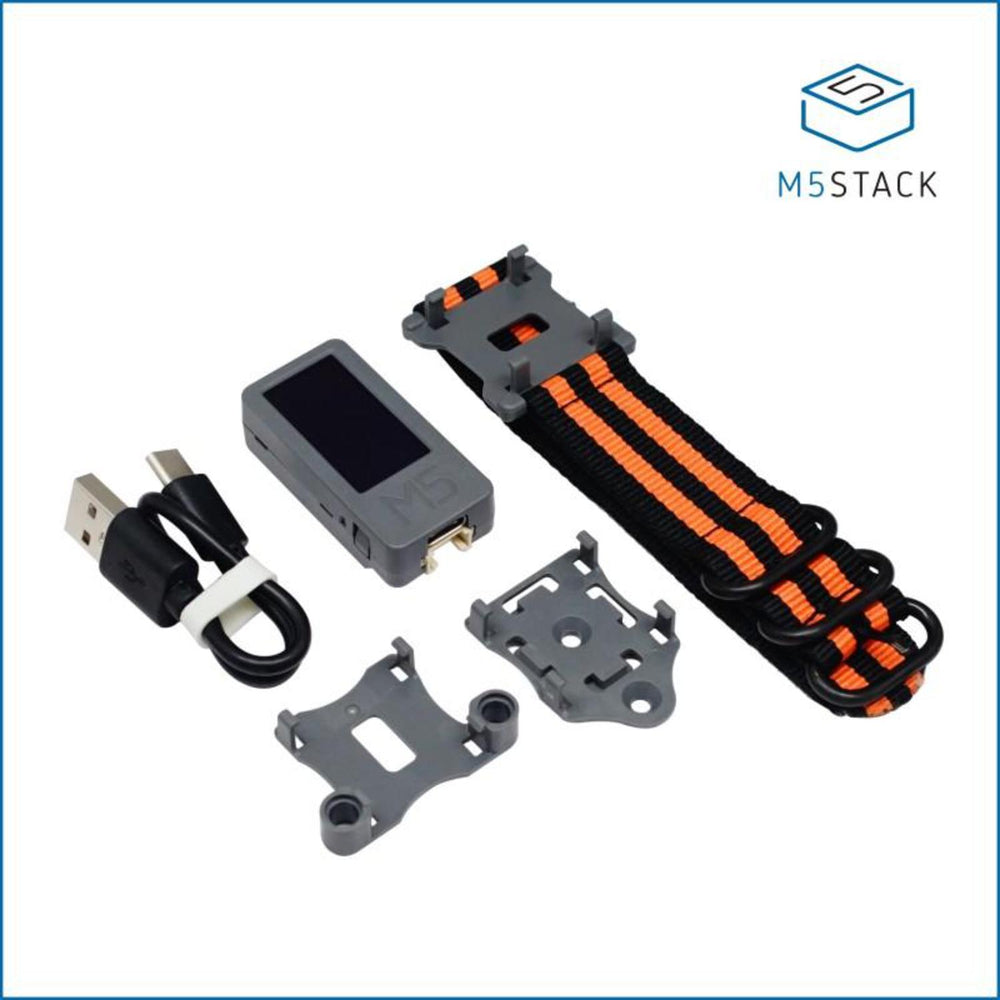

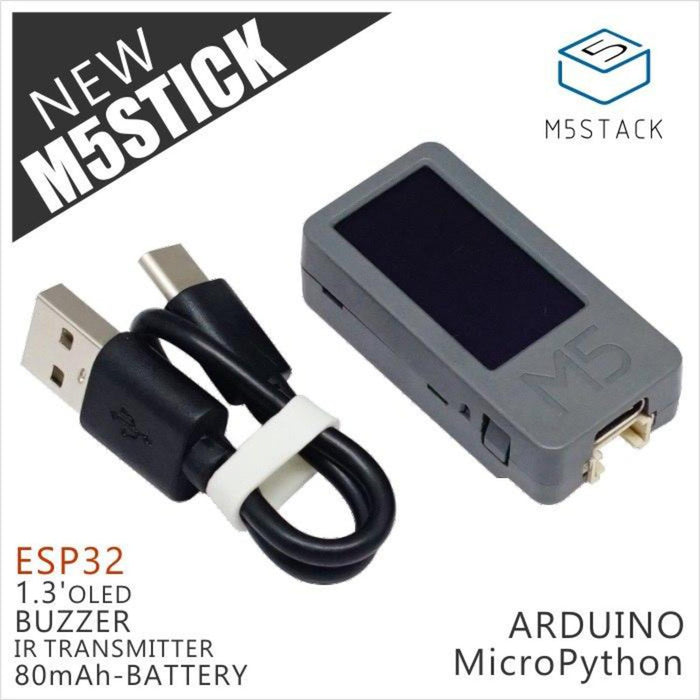

- 1x M5Stick
- 1x USB Type-C cable
Gray type:
- Accessories:
WATCH BELT,WALL/1515andBRICK
Documents
Register Manual - IP5306
Learn
Quick Start
https://docs.m5stack.com/#/zh_CN/quick_start/m5stick/m5stick_quick_start

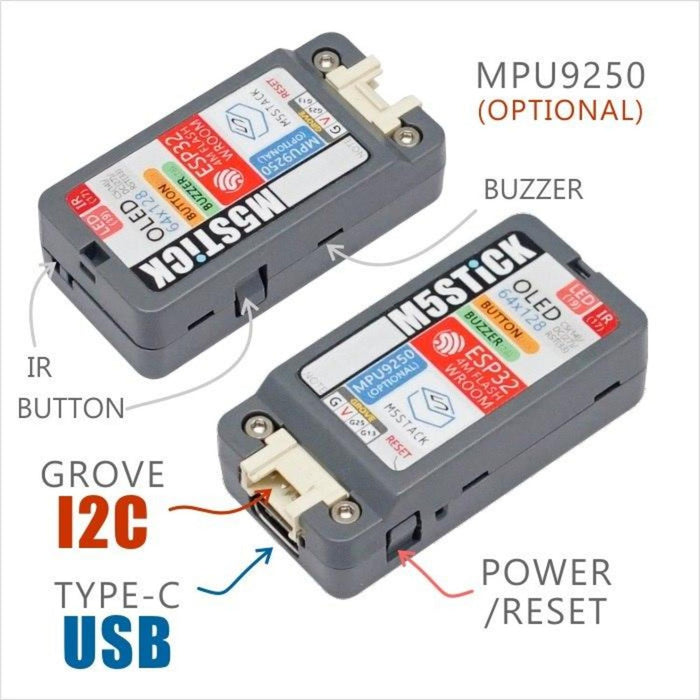

Below is the loaction of Button A and mounting holes
Power Operation：
Power on：short press power button
Power off：double click power button
Example
-
Arduino
-
UIFlow
More information

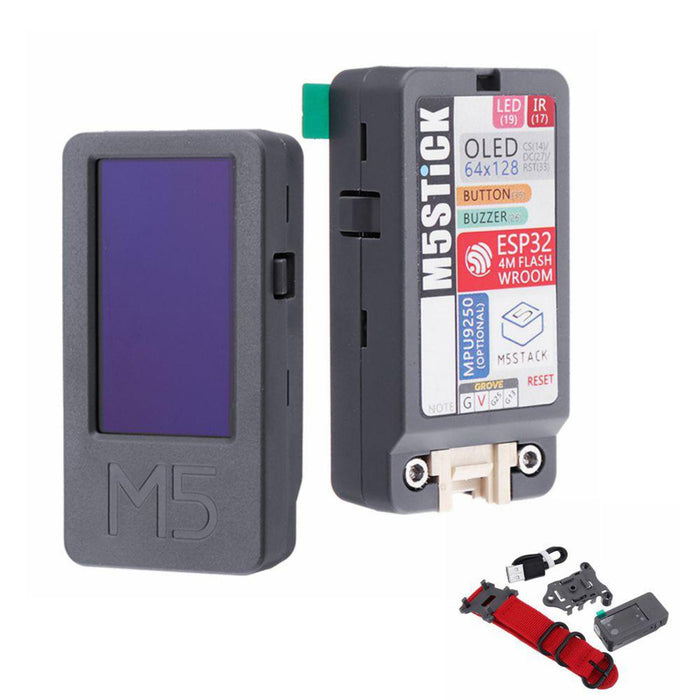

Peripheral Pin Mapping
Pin Map
blue LED & BUTTON & BUZZER & IR Transmitter
| ESP32 | GPIO17 | GPIO19 | GPIO26 | GPIO35 |
| IR Transmitter | Pin | |||
| Blue LED | Pin | |||
| BUZZER | Pin | |||
| BUTTON | Pin |
OLED Screen
| ESP32 | GPIO14 | GPIO27 | GPIO33 |
| OLED | CS | DC | RST |
GROVE Port
| ESP32 | GPIO13 | GPIO25 | 5V | GND |
| GROVE Port | SCL | SDA | 5V | GND |
Gray type:
| ESP32 | GPIO22 | GPIO21 |
| 9-Axis posture sentsor: MPU9250 | SCL | SDA |
Notice：
Comparision Between Different Development Kits
