This product was replaced by a updated version Motor Shield V2.0 (SLD01102P).

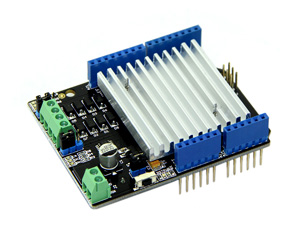

Motor Shield V2
The Motor Shield is a perfect platform for robotics and mechanical applications. It enables the Arduino to drive two brushed DC motors or one 4-wire two-phase stepper motor. Based on the H-bridge driver Chip L298N motor driver integrated circuit, it requires a 6V to 15V power supply to power the motor and also includes an on-board 5V voltage regulator for powering the main Arduino board. Additional plug and play Grove sensors can be connected to the 13 on-board Grove connectors.
Features
- Standard Arduino compatible
- Pulse-width modulated speed control mode
- 4 direction indicator lights
- Compatible with Grove plug and play sensors
- Extra large heat sink helps handle big loads
CAUTION:
The Driver IC and Heat sink may become very hot when working with current more than 1000mA.
Specifications
|
Item |
Min |
Typical |
Max |
Unit |
|
Logic Control Voltage |
4.5 |
5 |
5.5 |
V |
|
Motor Supply Voltage |
6 |
/ |
15 |
V |
|
Output Voltage |
0 |
/ |
Vinput -1 |
V |
|
Output Current( For Each Channel) |
/ |
/ |
2000 * |
mA |
|
Output Duty range |
0%~100% |
/ |
||
|
Dimension |
68.5x54.5x29.5 |
mm |
||
|
Net Weight |
37 |
g |
||
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
