Description

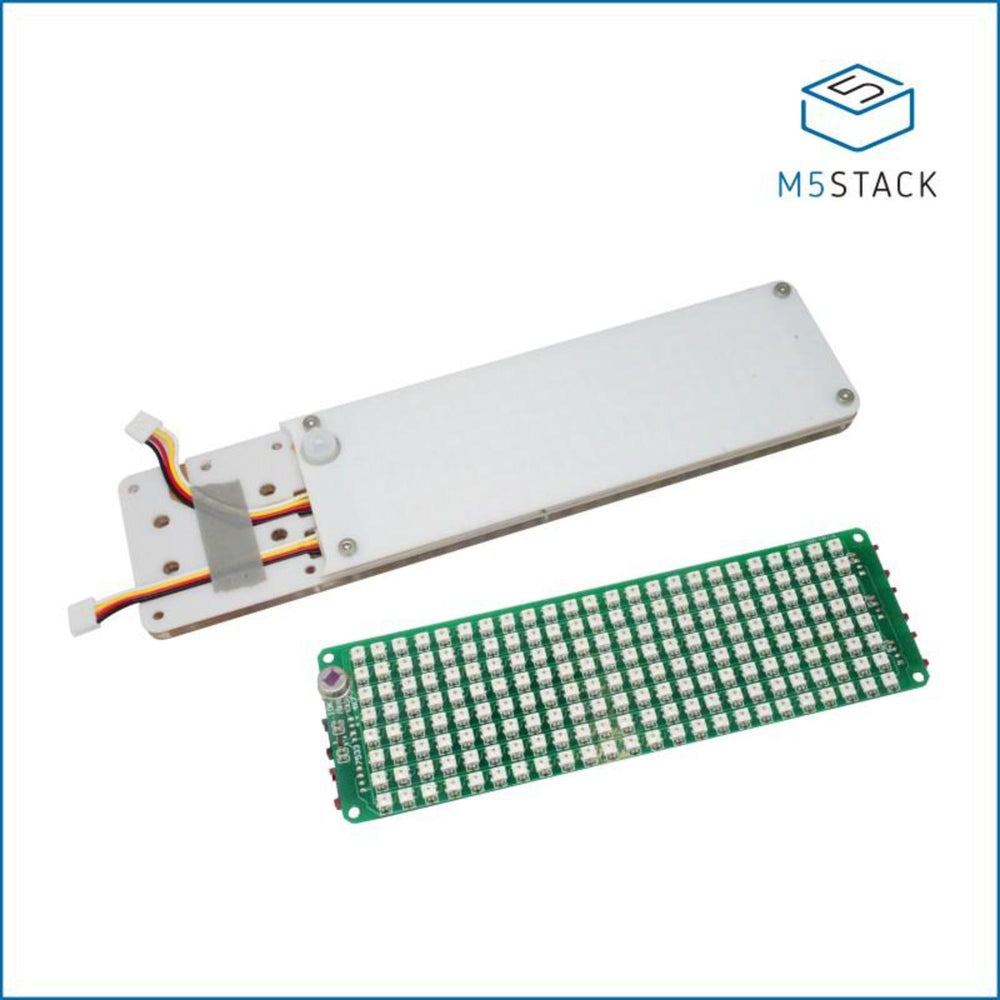

NEOFLASH is a RGB LED panel with 192 RGB LED(24x8). When you program this Unit, please pay attention to the sequence of the Neopixels. From top left (Where PIR placed) to right, and top to bottom.

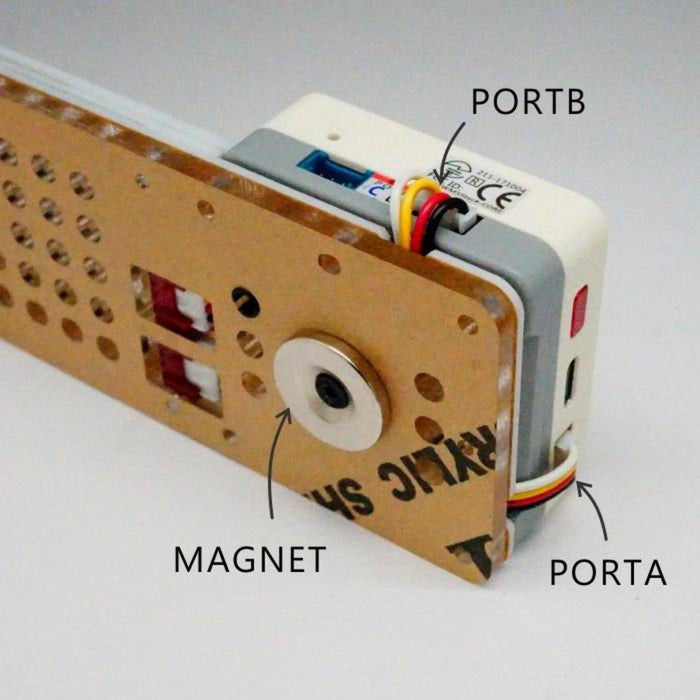

Connect this unit with M5Core via GROVE PORTB Single-Bus. We put Magnet on the backside, which means you can attach this to any metal surface. When you plug the GROVE PORTA into M5core, you have convert it into 3 extended GROVE A laid on the side.
Product Features
- Total Neopixel quantity: 192
- PIR
- PORTA extension(up to 3)
- Software Development Platform: Arduino, UIFlow(Blockly, python)
- Two Lego-compatible holes
Kit includes
- 1x NeoFlash Unit
- 1x Grove Cable
Documents
Learn
Example
Arduino IDE
This is a example exhibit real-time clock from the network and with PIR sensor you can add more tricks like light up when someone come close, off when nobody was around.
To get complete code, please click here。
More information
PinMap
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
| NEOFLASH Unit | PIR Pin | RGB Pin | 5V | GND |
