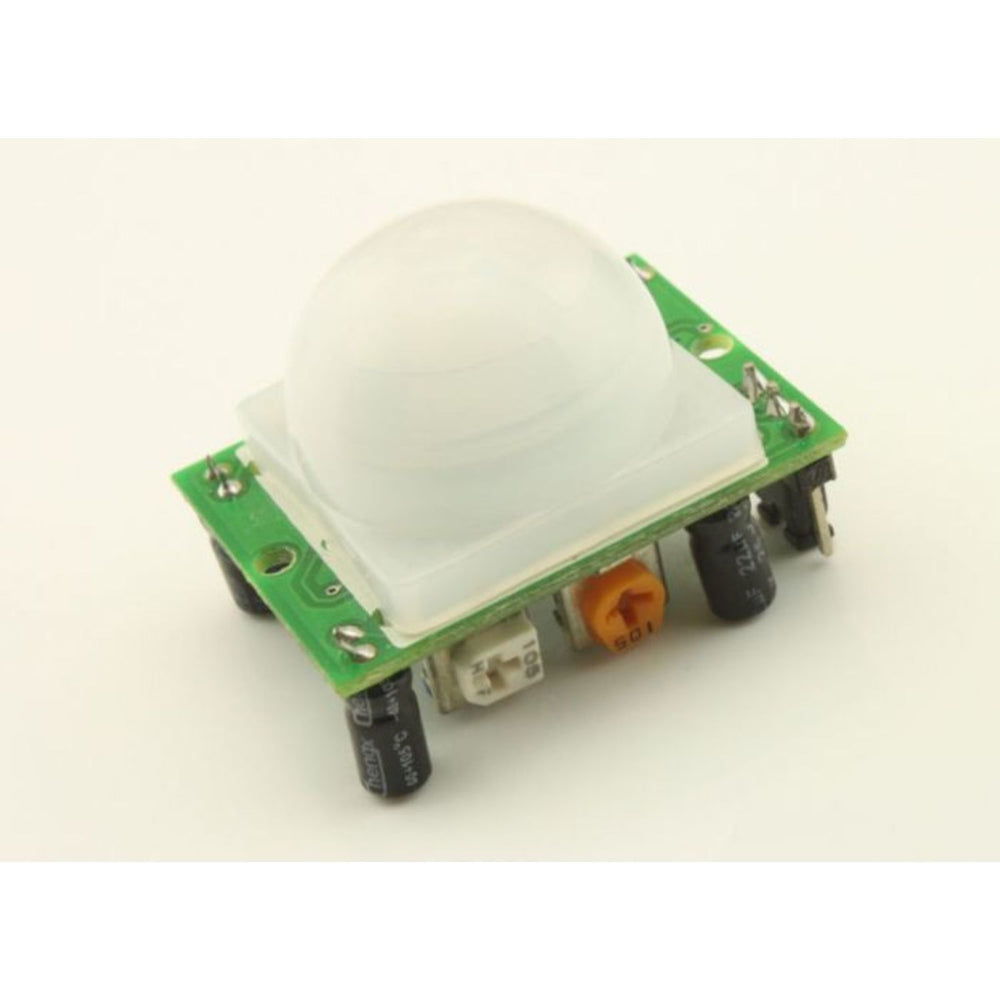

DYP-ME003 PIR Motion Sensor Module is based on BISS0001(datasheet),it can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices. It is a high-tech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive.
Overview
Usage:
Input Voltage: DC 4.5-20V
Static current: 50uA
Trigger:H-Yes, L-No
Block time: 2.5 S(default)
Delay time: 5 S(default)
Sentry Angle:< 110 degree
Sentry Distance:3 m(default) - max 7 m
Lens Size:Diameter: 23mm(Default)
Dimensions: 32mm x 24mm
The Package Include:
PIR Motion Sensor Module:DYP-ME003 x 1
Resources:
