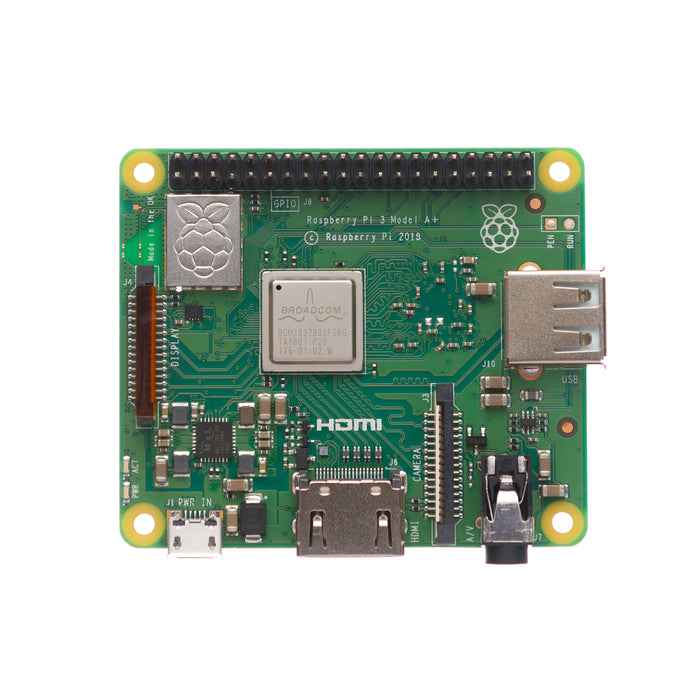

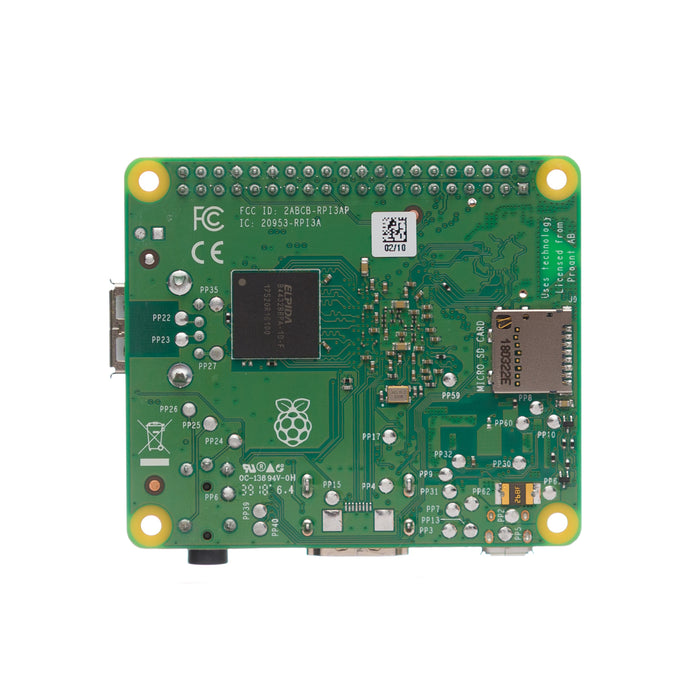

Raspberry Pi 3 Model A+

$45.00
SKU LB-RPI3-A-PLUS

We have 132 units in our Sydney Warehouse available for immediate dispatch.

We can get a further 1000 units into Australia from Raspberry Pi. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 01, 2024.

The Raspberry Pi 3 Model A+ is the latest product in the Raspberry Pi 3 range. Like the Raspberry Pi 3 Model B+, it boasts a 64-bit quad core processor running at 1.4 GHz, dual-band 2.4 GHz and 5 GHz wireless LAN, and Bluetooth 4.2/BLE.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model A+ has the same mechanical footprint as the Raspberry Pi 1 Model A+.

Processor: Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4 GHz
Memory: 512MB LPDDR2 SDRAM
Connectivity: 2.4 GHz and 5 GHz IEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2/BLE
Access: Extended 40-pin GPIO header
Video & sound:
  • 1 × full size HDMI
  • MIPI DSI display port
  • MIPI CSI camera port
  • 4 pole stereo output and composite video port
Multimedia:
  • H.264, MPEG-4 decode (1080p30);
  • H.264 encode (1080p30);
  • OpenGL ES 1.1, 2.0 graphics
SD card support: Micro SD format for loading operating system and data storage
Input power: 5 V/2.5 A DC via micro USB connector 5 V DC via GPIO header
Environment: Operating temperature, 0–50°C
Compliance: For a full list of local and regional product approvals, please visit:
www.raspberrypi.org/products/raspberry-pi-3-model-a-plus
Production lifetime: The Raspberry Pi 3 Model A+ will remain in production until at least January 2023

Raspberry Pi A+ Physical Specifications:

Raspberry Pi 3 Model A+ Physical Specifications

Documents:

Raspberry Pi 3 Model A+ Product Brief

Note: Limit of 1 per customer during the launch.
