Raspberry Pi HQ Camera Module
We can get 39 units into Australia from SparkFun. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 01, 2024.

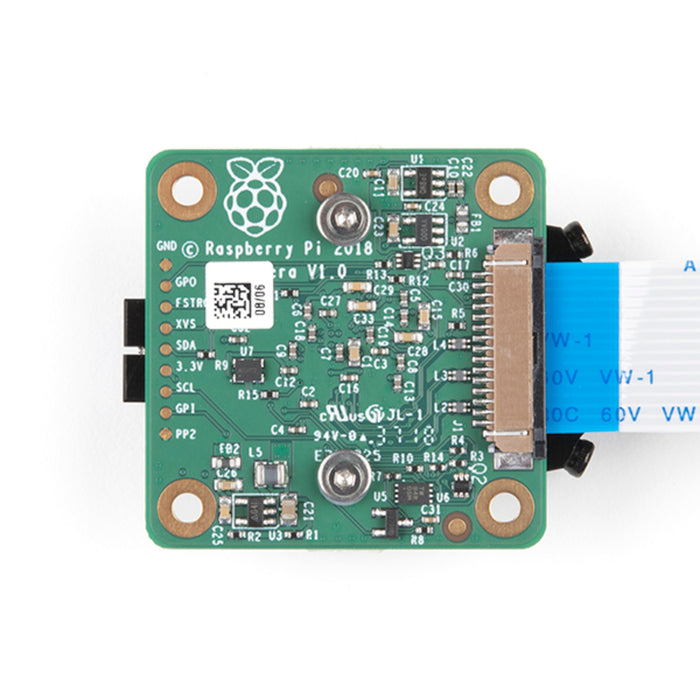

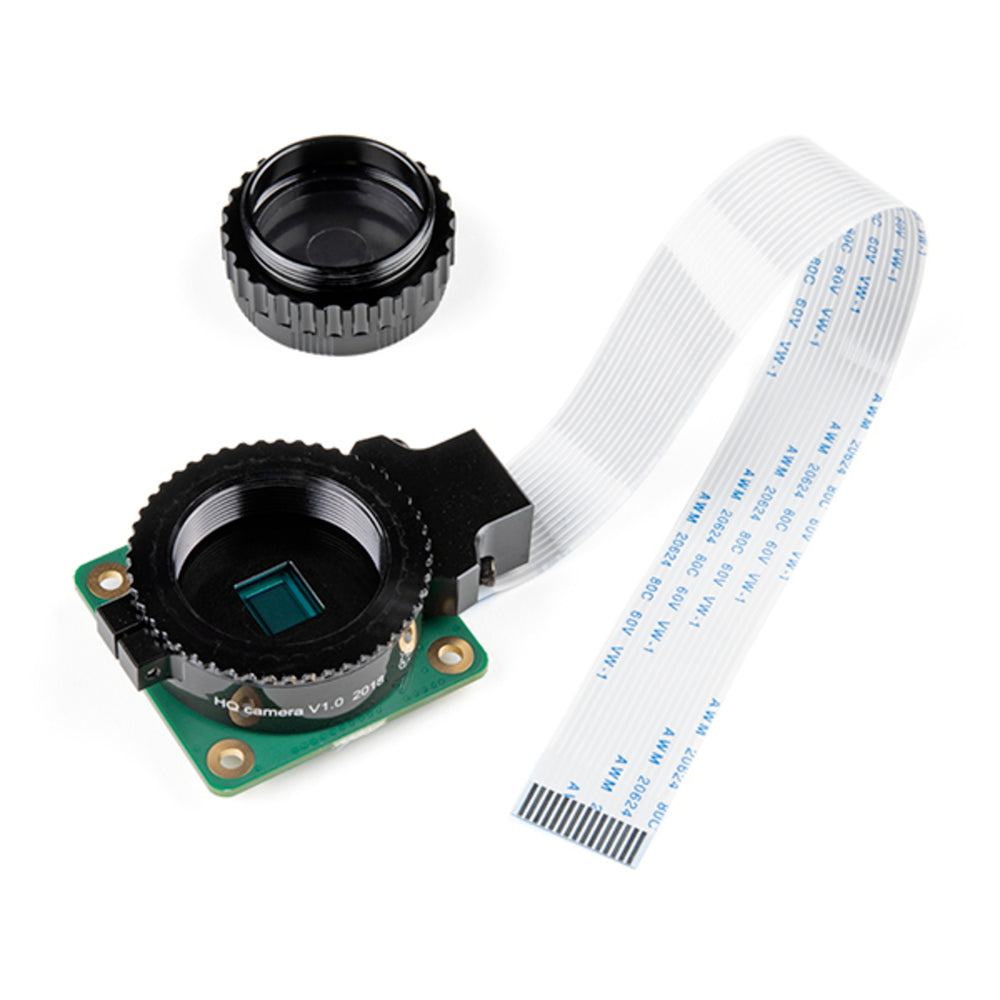

The High Quality Camera Module is a camera sensor designed to accept CS-mount lenses and, with the supplied adapter, C-mount lenses for use with the Raspberry Pi single board computer line. It offers higher resolution (12 megapixels, compared to eight megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the existing Camera Module v2. The 12.3 megapixel Sony IMX477 sensor features a 7.9mm diagonal image size and back-illuminated sensor architecture with adjustable back focus. Additionally, this module features an included tripod thread just adjacent to the ribbon cable connector.

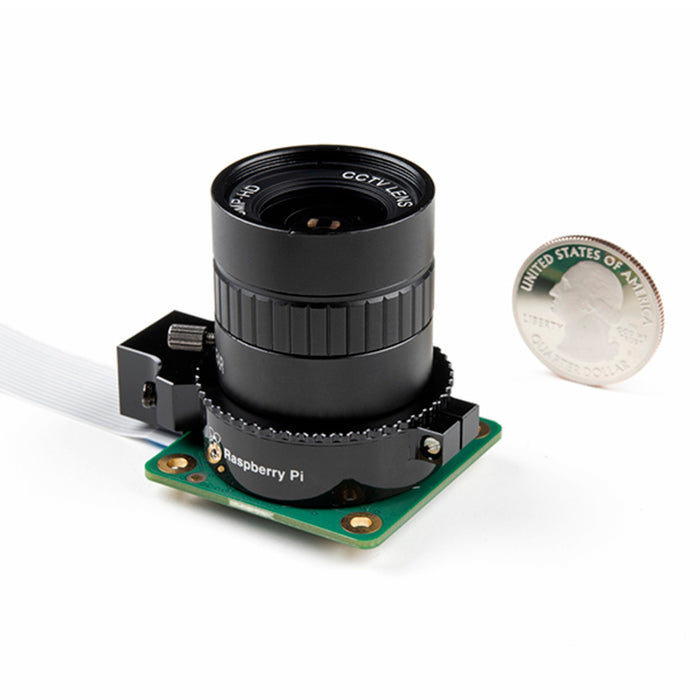

The CGL 6mm CS-mount and 16 mm C-mount lenses (in the related products section below) are examples of third-party products that are compatible with the High Quality Camera; see step-by-step instructions for fitting these CS-mount and C-mount lenses in the documents tab. Additional adapters can also be found for use with professional DSLR lenses.
Note: A lens is required for this camera module and one is not included.
