Raspberry Pi Pico GPIO Expansion Board
We have 10 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 100 units into Australia from Elecrow. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 16, 2024.
This time Raspberry Pi Foundation developed a powerful device Raspberry Pi Pico that is powered by micro-controller RP2040. It is a compact microcontroller board that would make the work easier for the users which will raise the quality of the products.
Some users want to purchase Raspberry Pi Pico for their projects but they would also need a GPIO Expansion pin so that they do not have to solder the circuits with the Raspberry Pi Pico. So this GPIO expansion board is perfectly designed for Raspberry Pi Pico. No need to field solder, all pin lead out, support a variety of data protocols, including I2C,UART, analog, digital.

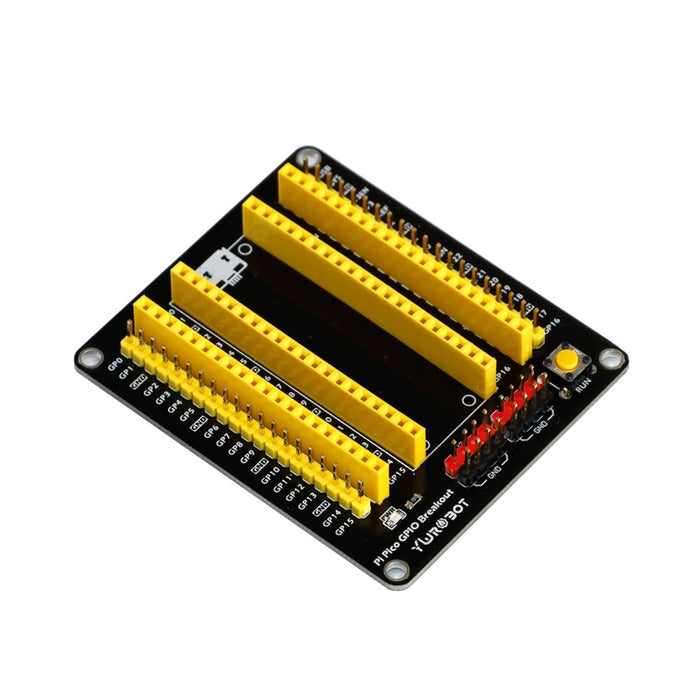

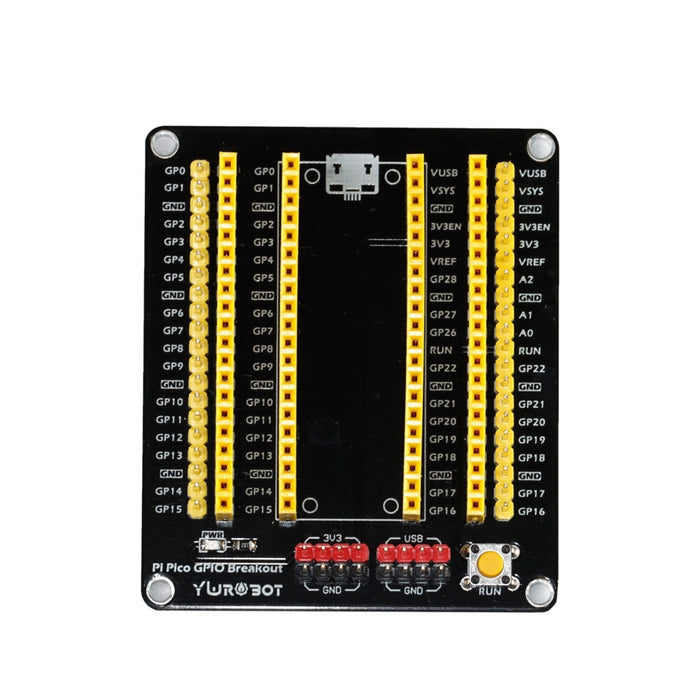

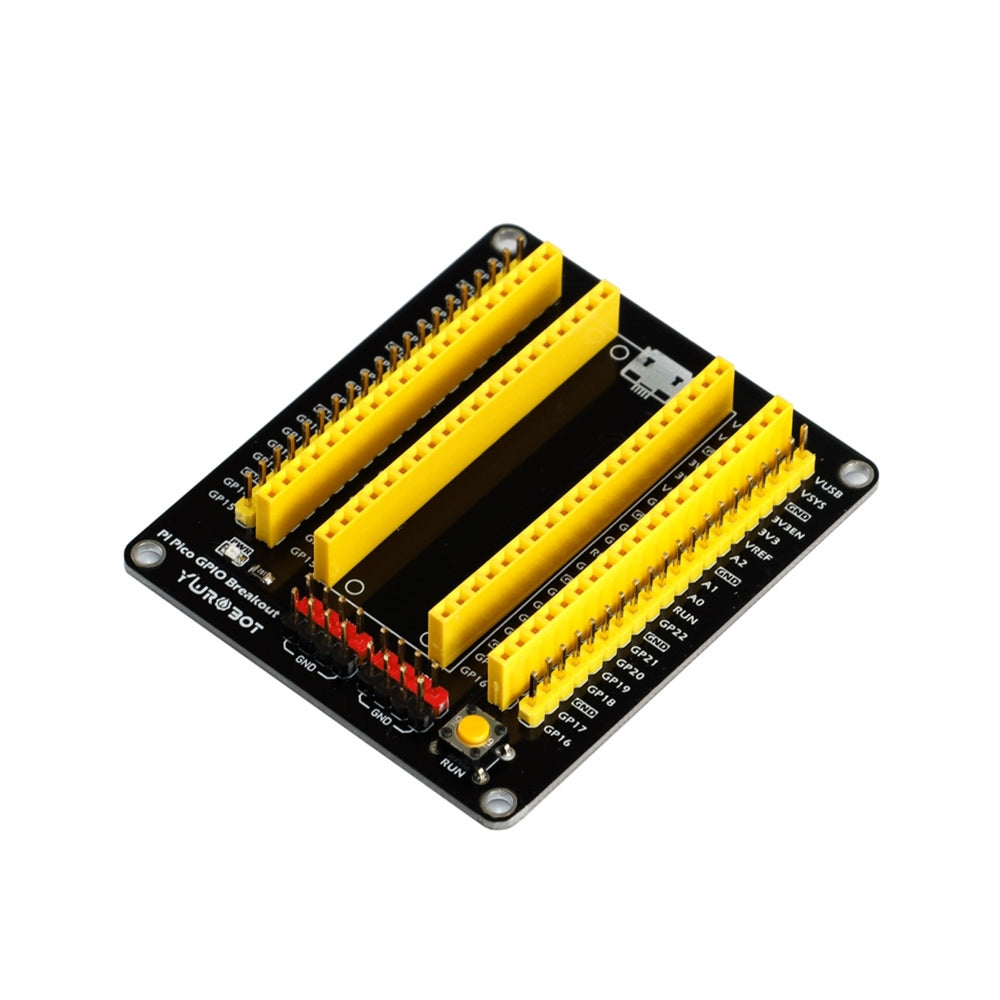

Hardware overview
1. Pico interface
2. GPIO interface
3. Power light
4. 3.3V output interface
5. 5V output interface
6. Reset key
Specification:
Voltage: 3.3 V / 5 V
GPIO level: 3.3 V
Pin: 40 Pin
Size: 69 x 59mm
Package List:
1 x Pico GPIO Expansion Board
