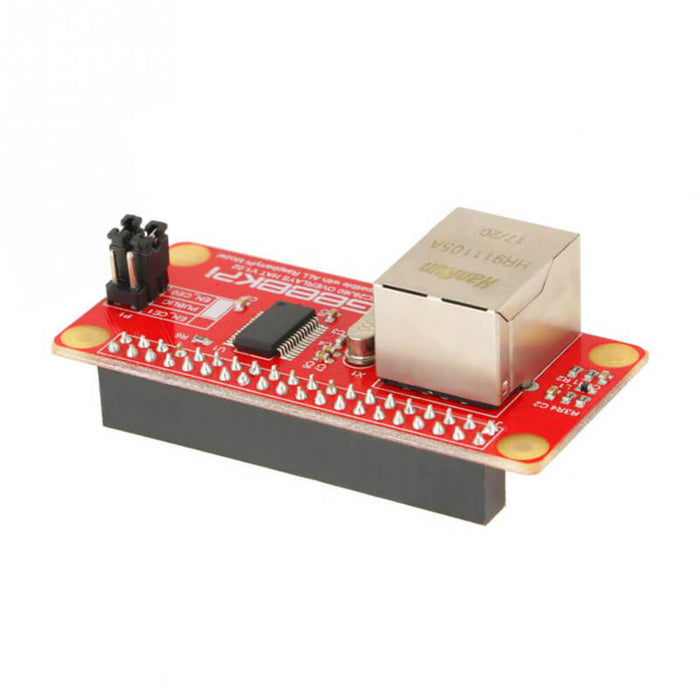

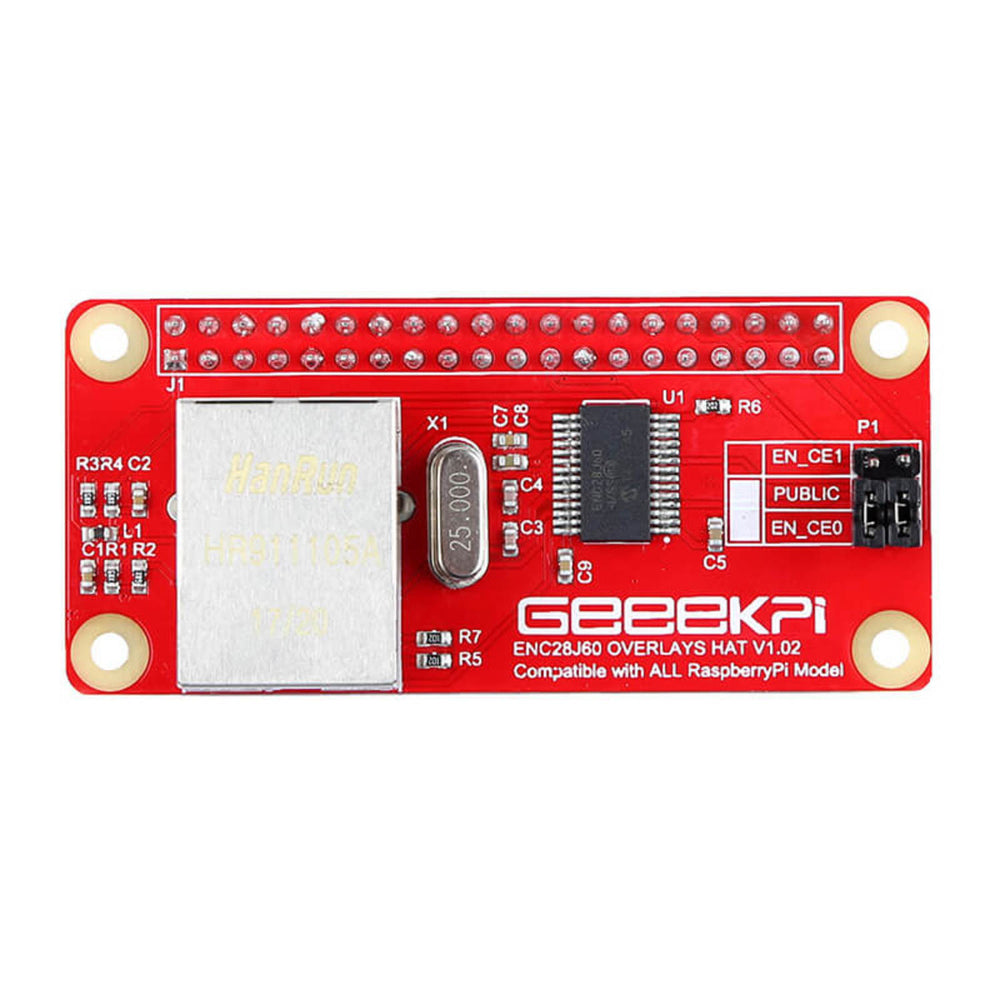

Raspberry Pi Zero ENC28J60 Network Adapter Module
We can get 100 units into Australia from Elecrow. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 16, 2024.
We all know that the core system of Raspberry Pi Zero is Linux, and without NIC inconvenient. However, most of the operations are based on linux’s command line via ssh service, that’s why we introduce this product.
This Raspberry Pi Zero Enc28j60 is a simple network adapter module, it’s easy to assemble and configure. It provides a convenient way for you to access your Raspberry Pi to the network smoothly, something else is that it’s easy to do system updates and software installation operations.
Features
- Easy to assemble.
- Easy to setup.
- Official OS overlay support.
- Stable and fast.

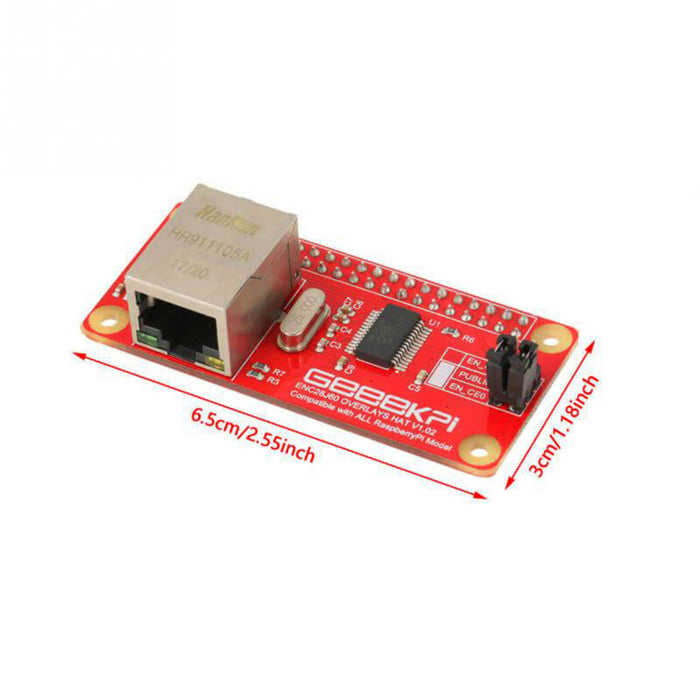

- Dimension: 65.15mm x 29.93mm x 23.34mm
Configure Method

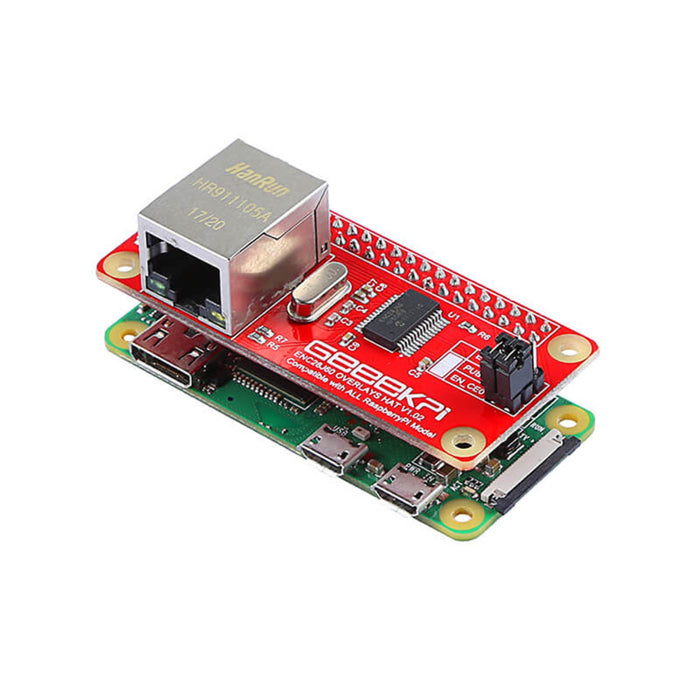

1. Install the NIC module into the Raspberry Pi;

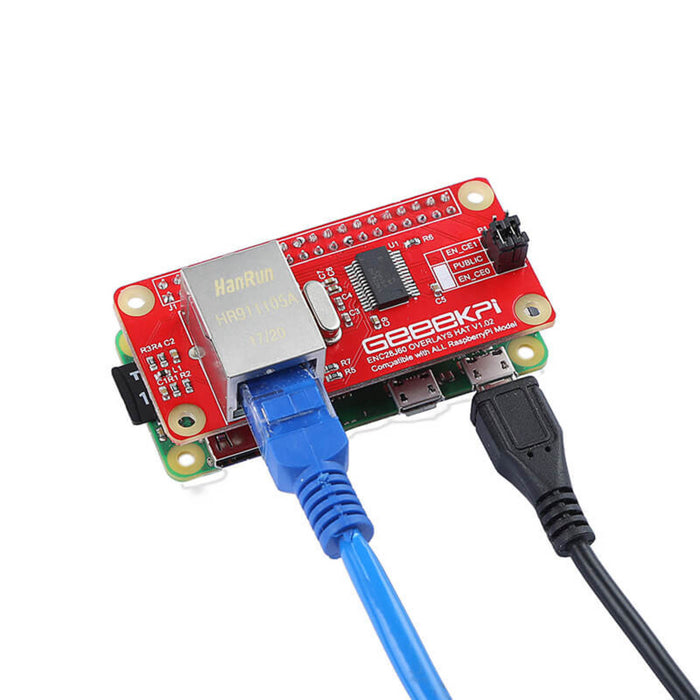

2. Connect the network cable to ensure that your router supports DHCP and works well;
3. Burn the Raspbian image to TF card;
4. Edit the /boot/config.txt file by your favorite editor such as “nano” or “vim.tiny”, and add the following parameter: dtoverlay=enc28j60 Then save the exit and reboot the Raspberry Pi.
Note
- The module is tested only in raspbian environments.
- Open a terminal and typing this command: ifconfig You will see the detail of Pi zero Enc28j60 network adapter module.
