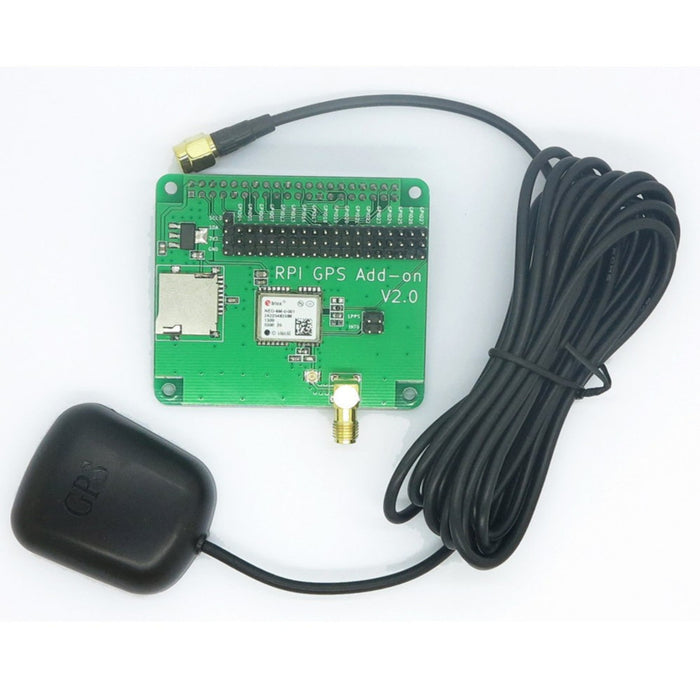

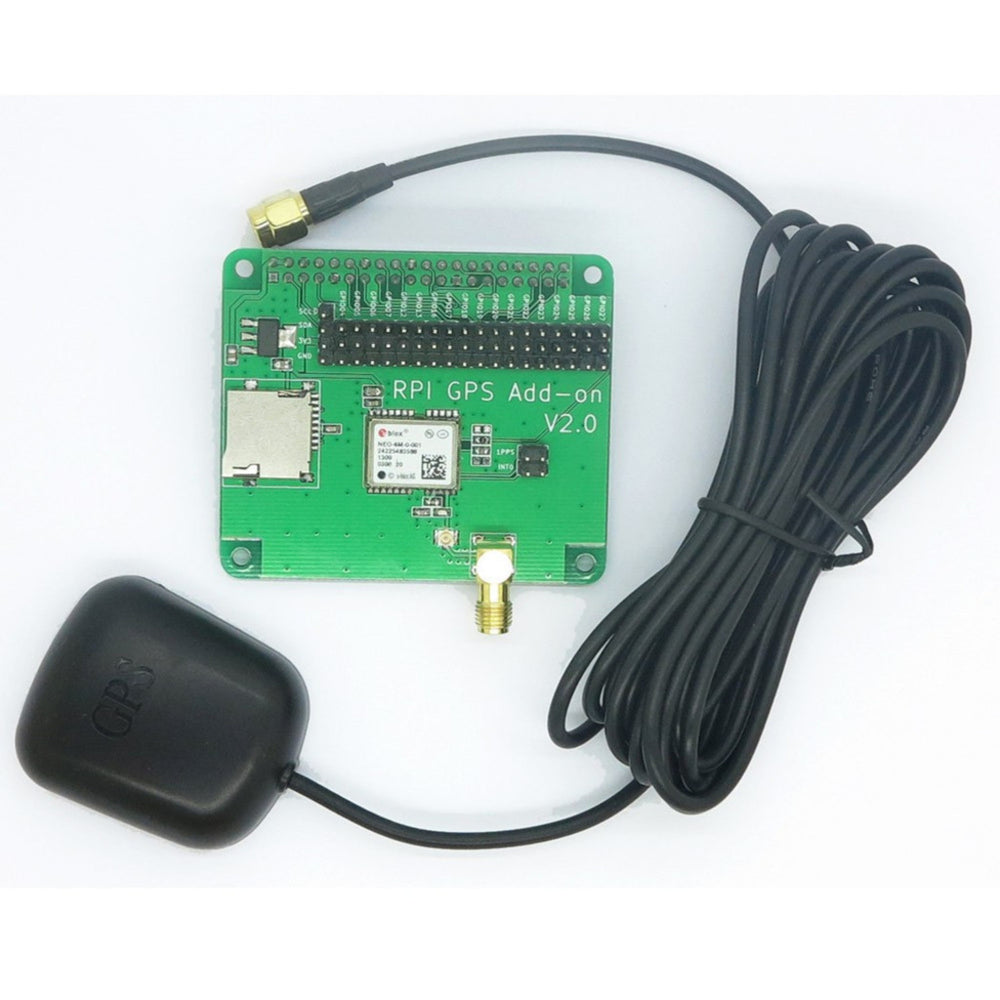

RPI Customized GPS Add-On V2.0 Module For Raspberry Pi
$63.48
SKU IT-IM150627005
Raspberry PI GPS Add-on V2.0 is customized for Raspberry Pi interface based on NEO-6 GPS module. Through the serial port on Raspberry Pi, data returned from NEO-6 module can be received, thus information such as the current location and time can be searched.
Note: GPS Antenna is included in the package.
Note: we have V1.0 which is customized for Raspberry Pi.
Specification
| PCB size | 65mm X 56mm X 1.6mm |
| Operation Level | Digital 3.3V DC |
| Interface | UART |
| Baud rate | 9600(default) |
Documents
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.
Technical support
For technical support, please open a ticket on Itead Support System.
ADDITIONAL INFORMATION
| Link Wiki | No |
|---|---|
| Module Type | No |
| Weight | 106.0000 |
| Model | IM150627005 |
| Board Size | 65mm*56mm*1.6mm |
| Version | V2.0 |
| Operation Level | Digital 3.3V |
| Power Supply | External 5V |
