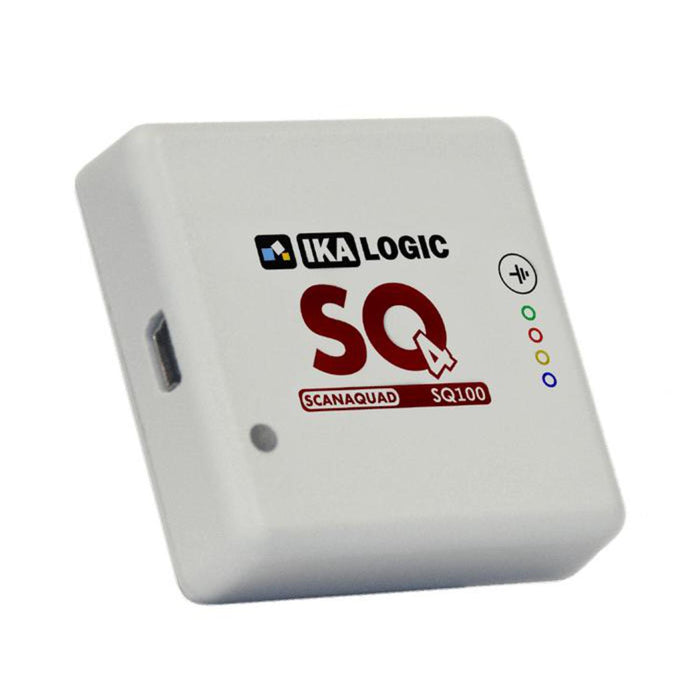

ScanaQuad Logic analyzers and ScanaStudio software let you capture digital signals, analyze them in depth or generate test patterns. That will help you get your embedded system up and running, quickly!
Capture + Generate
ScanaQuad Logic analyzer lets you capture, generate or do both simultaneously.

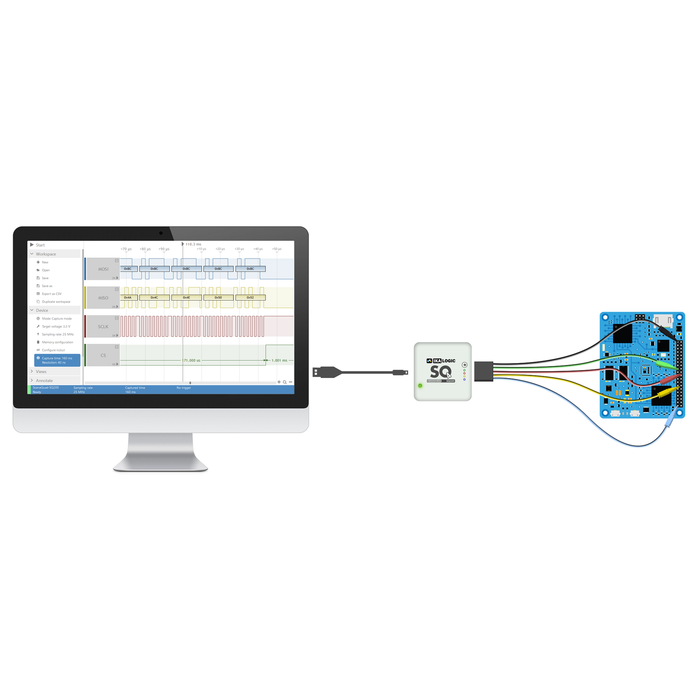

Easily debug your serial interface or stimulate your circuit with test patterns and check its response.
Protocol Trigger
Complex multi-step trigger lets you target precise features of your data, like a specific I2C address or a CAN frame ID.
Trigger sequences can even be defined for proprietary protocols!
30+ Protocols
30+ protocol decoder scripts are open source and included by default. I2C, SPI, RS232, CAN, 1-WIRE, JTAG, you name it!
Browse and use existing decoders or create your own script.
Powerful and flexible Trigger!
ScanaQuad comes with state of the art hardware-side trigger engine that lets you define virtually any trigger sequence you can imagine. It can be a simple rising edge, or a combination of logic levels, edges, pulse widths, timing constraints that need to be met, and more.
The Drag-n-Drop interface is super easy to use. Want to give it a try? Download free ScanaStudio software and test-drive now!
ScanaStudio Logic Analyzer software
The all new ScanaStudio V3 lets you unleash the full power of your ScanaQuad logic analyzer!
- Power packed - ScanaStudio comes with powerful analysis features like packet view, search and filtering of captured data, unlimited annotations, markers and measurements, data exportation options and more.
- Future proof - ScanaStudio is designed with evolution in mind. New features are constantly added without cluttering the interface or disturbing its intuitive work flow.
- Ready for your OS - ScanaStudio natively runs on windows, mac and linux. Download the latest version for your favorite OS
ScanaQuad series specifications
| SQ50 | SQ100 | SQ200 | |
|---|---|---|---|
| Number of Input/output channels | 4 | 4 | 4 |
| Max. Sampling rate | 50 MHz | 100 MHz | 200 MHz |
| Memory per channel | 1M | 2M | 4M |
| Digital pattern generator | ✔ | ✔ | ✔ |
| Mixed mode (Capture + Generate) | ✔ | ✔ | ✔ |
| Input protection | ± 12V | ± 35V | ± 35V |
| Trigger options | Edge, Level, Pulse, arbitrary pattern , serial protocol | Edge, Level, Pulse, arbitrary pattern , serial protocol | Edge, Level, Pulse, arbitrary pattern , serial protocol |
| Adjustable in/out voltage | ✔ | ✔ | ✔ |
| Adjustable input resistance | ✘ | ✔ | ✔ |
| Open drain output with optional pull up | ✘ | ✔ | ✔ |
| Differential input pairs | 0 | 1 | 2 |
