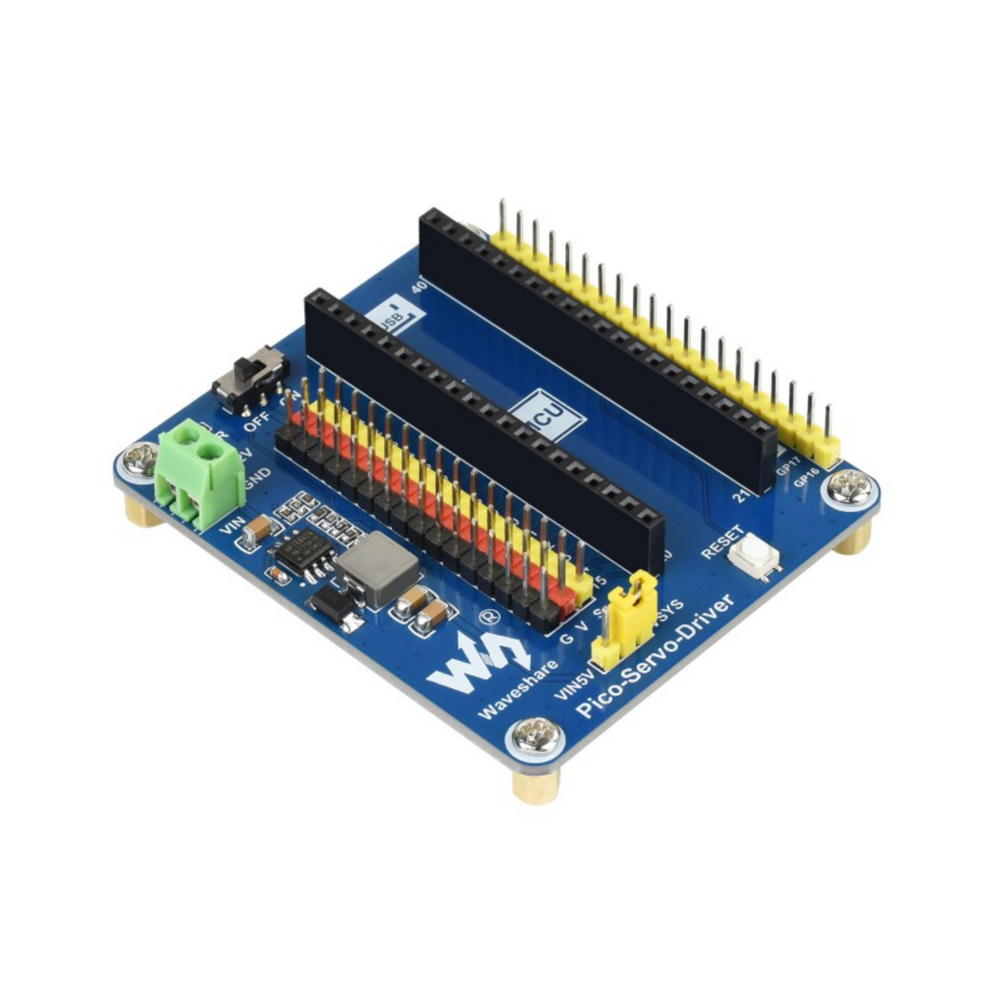

Servo Driver Module for Raspberry Pi Pico, 16-ch Outputs, 16-bit Resolution
We have 10 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 100 units into Australia from WaveShare. If you order today, we can dispatch this stock between Dec 10, 2025 - Dec 22, 2025.
Servo Driver Module For Pico
Ideal For Controlling Robotic Arm Or Hexapod Walker
Features At A Glance
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
- Integrates 5V regulator, up to 3A output current, allows battery power supply from the VIN terminal
- Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
- Exposes unused pins of Pico, easy expansion
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGESERVO VOLTAGE LEVELLOGIC LEVELCONTROL INTERFACEMOUNTING HOLE SIZEDIMENSIONS
| 5V (Pico) or 6~12V (VIN terminal) | 5V |
| 3.3V | GPIO |
| 3.0mm | 65 × 56mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Standard Servo Interface
Supports Common Used Servo Like: SG90, MG90S, MG996R
Onboard 5V Regulator
Flexible Power Options: Powered From Pico Directly,
Or From VIN Battery Input Terminal With Max 3A Current Output

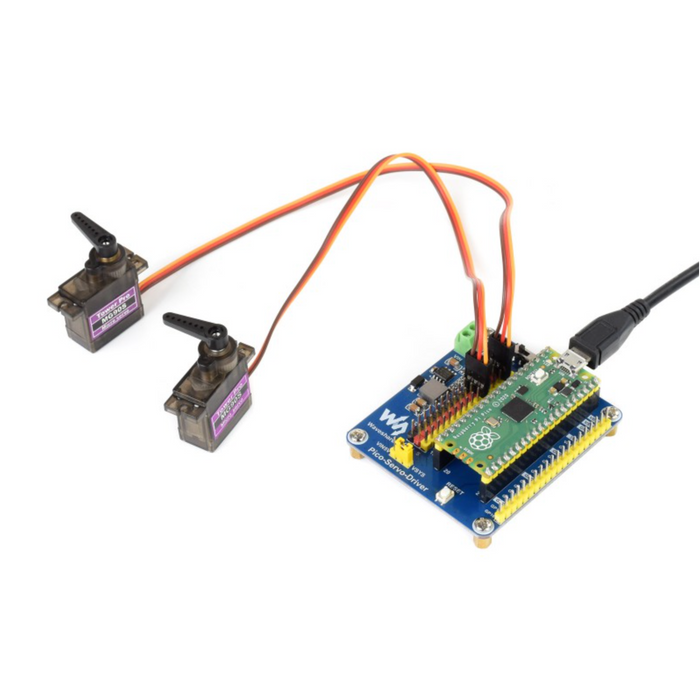

Application Example
Raspberry Pi Pico and servo are NOT included.

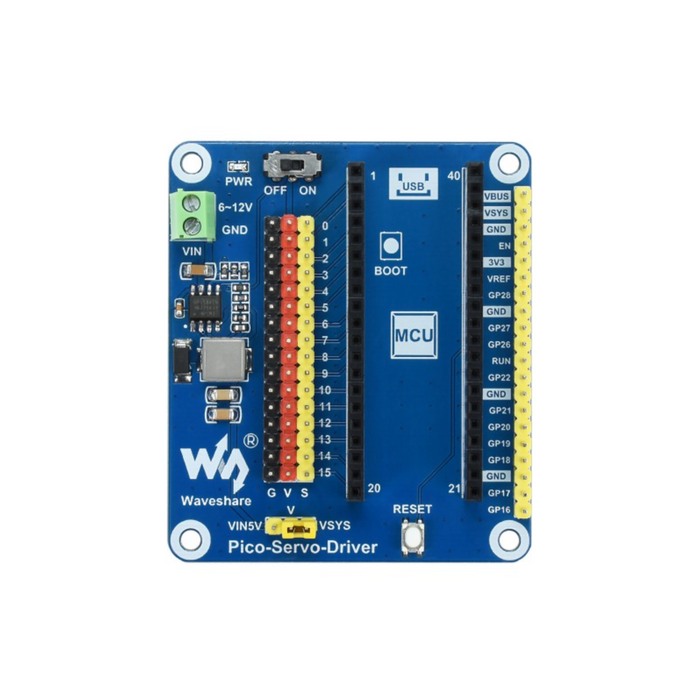

Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-Servo-Driver
