We have 6 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 24 units into Australia from SparkFun. If you order today, we can dispatch this stock between Nov 30, 2024 - Dec 02, 2024.

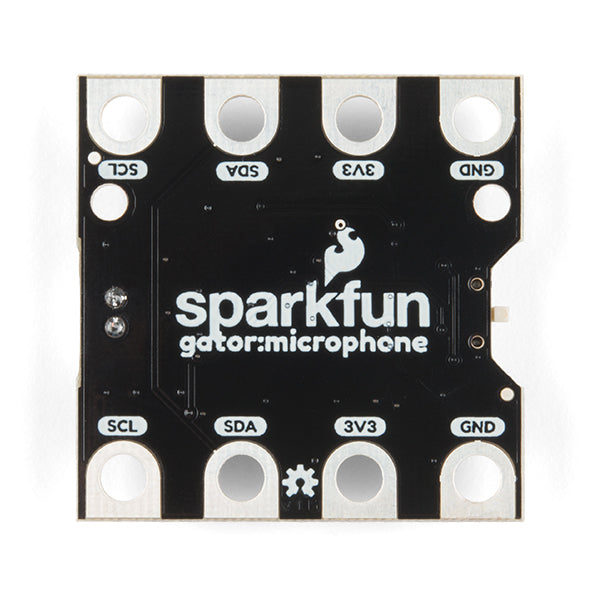

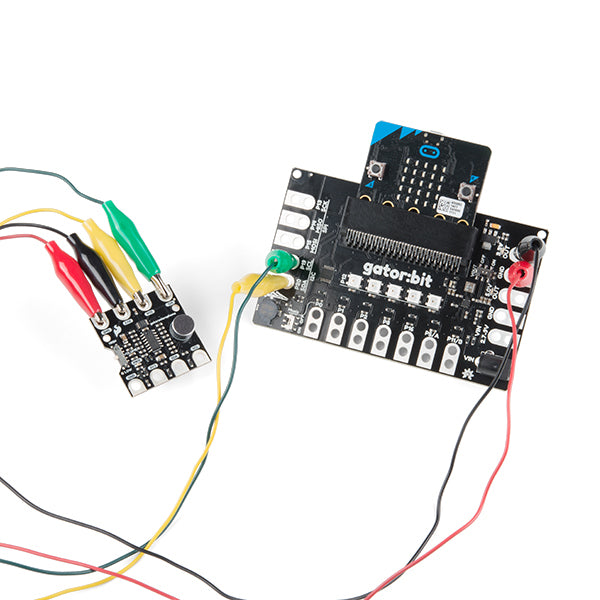

The SparkFun gator:microphone is a micro:bit Accessory Board that integrates an electret microphone into SparkFun's gator:bit series of gator-clippable accessories, enabling it to be easily interfaced with the micro:bit or other microcontrollers! It provides a binary indication of the presence of sound and an analog representation of its amplitude.

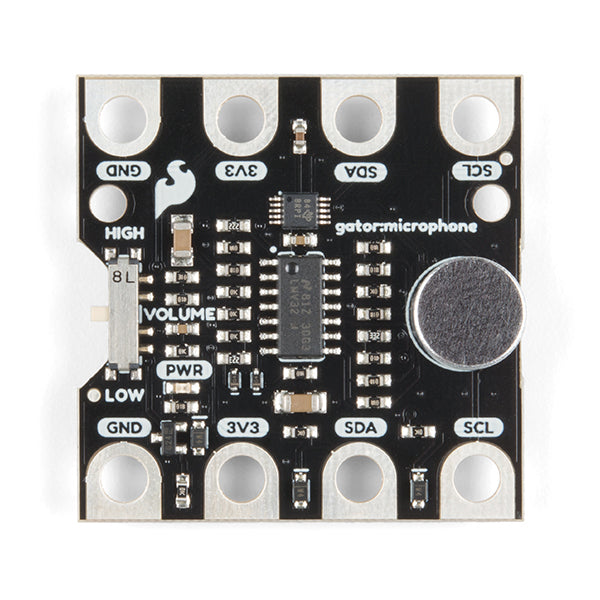

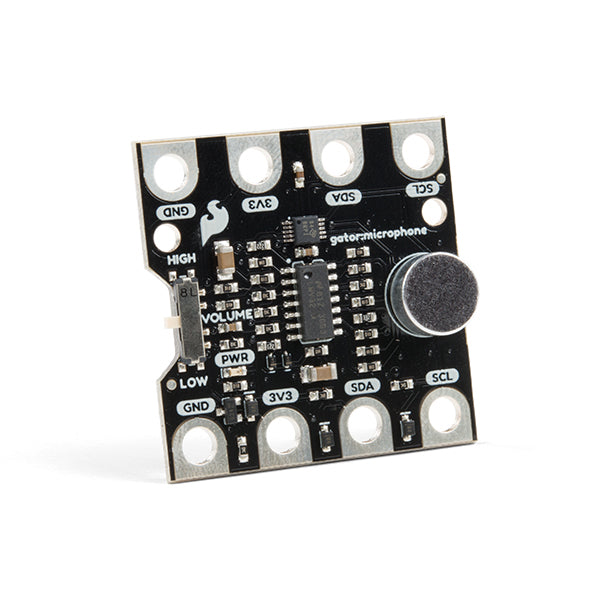

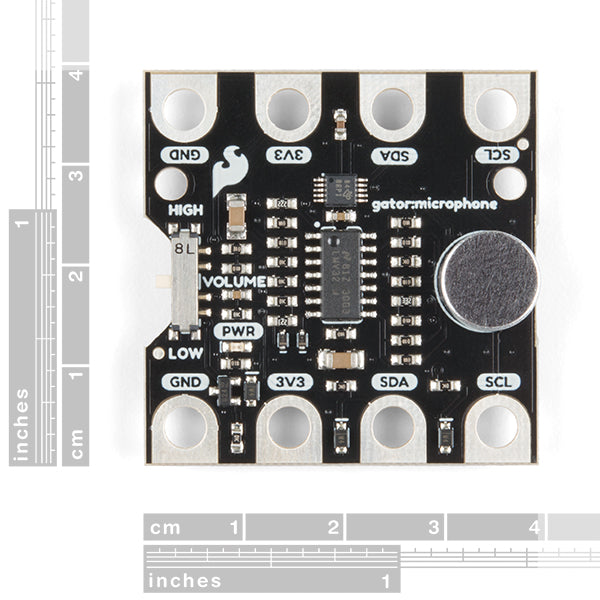

The gator:microphone consists of four pads for power and data. There is also a switch on the board to select different audio amplification levels. Additionally, it includes an LMV324 operational amplifier (op-amp) for processing the audio signals from the microphone. The specified operating voltage for the VEML6070 is between 2.7V-5.5V. For use with the gator:bit (v2) and micro:bit, you should provide 3.3V through the 3V3 and GND pads to keep the logic levels consistent.
The micro:bit is a pocket-sized computer that lets you get creative with digital technology. Between the micro:bit and our shield-like bit boards you can do almost anything while coding, customizing and controlling your micro:bit from almost anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. At half the size of a credit card, this versatile board has vast potential!
