We can get 27 units into Australia from Sparkfun. If you order today, we can dispatch this stock between Nov 30, 2024 - Dec 12, 2024.

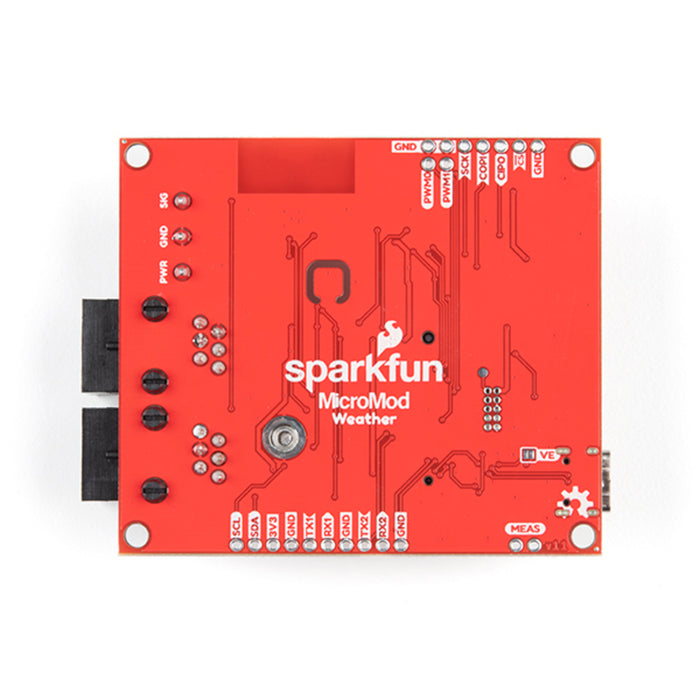

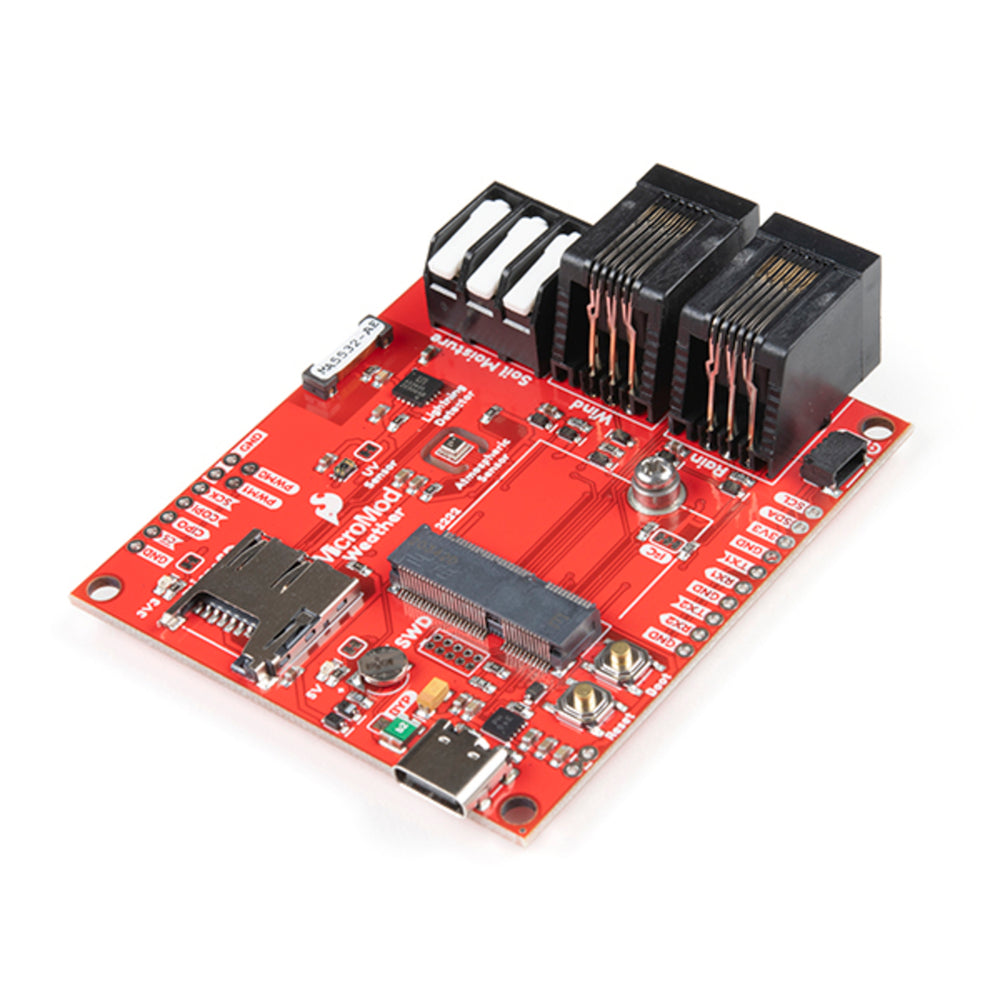

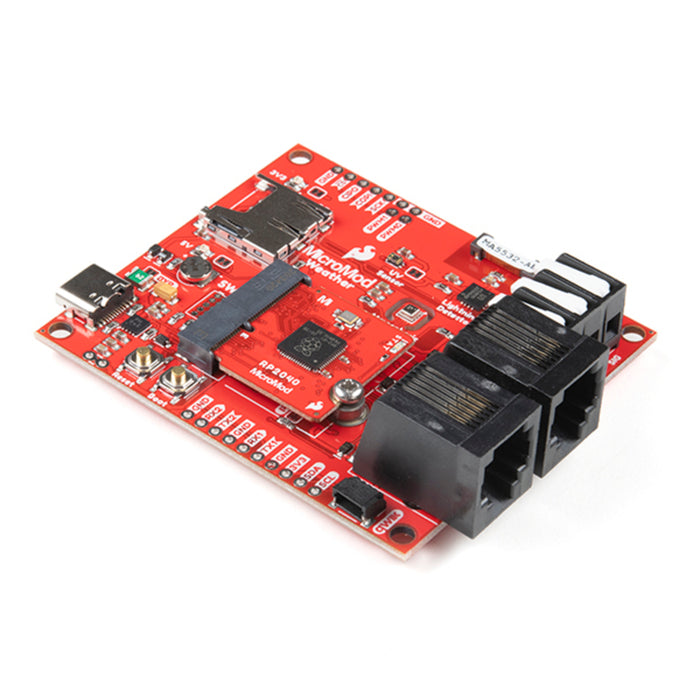

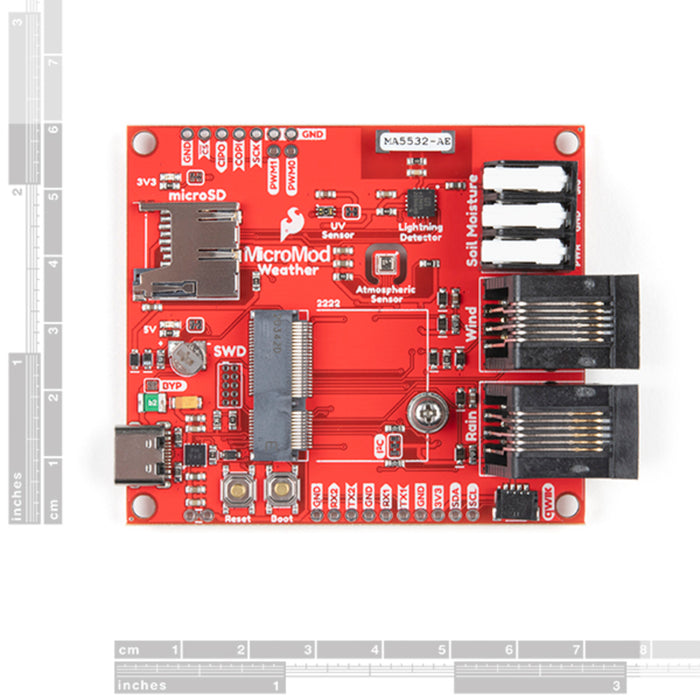

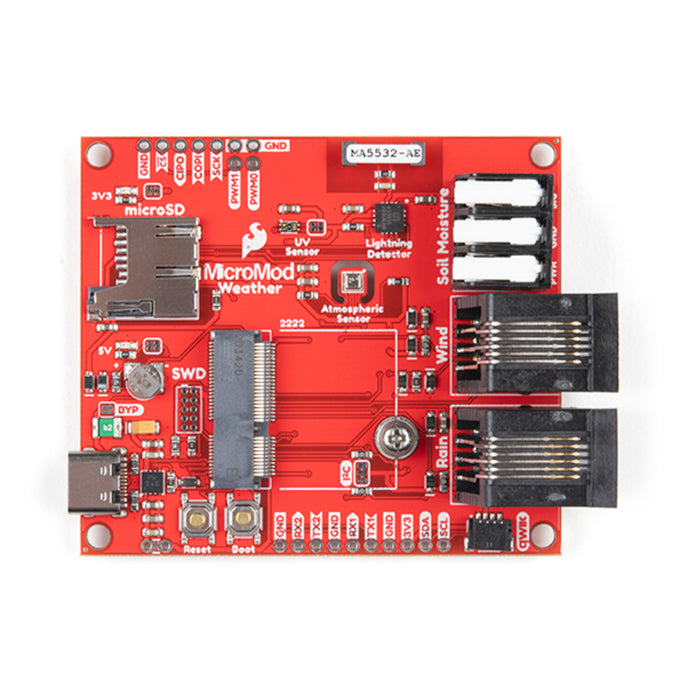

The MicroMod Weather Carrier Board is a peripheral for the MicroMod ecosystem that allows you to create your own weather station with one of a multitude of processors. The carrier board includes three sensors: the BME280 temperature, pressure and humidity sensor, the VEML6075 UV sensor and the AS3935 Lightning detector.
Along with these on-board sensors there is a 3-pin latch terminal to add an external soil moisture sensor as well as a pair RJ11 jacks to plug in the wind and rain sensors included with our Weather Meter Kit. To top it all off there is a microSD card slot so you can plug in an SD card to log all of that glorious weather data using the MicroMod processor of your choosing!
MicroMod is a modular interface ecosystem that connects a microcontroller “processor board” to various “carrier board” peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!
Get Started with the MicroMod Weather Carrier Board Guide
Features:
- Barometric Pressure/Humidity/Temperature Sensor - BME280
- Operated in I2C mode. I2C address: 0x77
- UV Light Sensor - VEML6075
- I2C address: 0x10
- Lightning Detector - AS3935
- Operated in SPI mode.
- 2 x RJ11 Connectors to connect Wind/Rain sensors.
- 3-pin Latch Terminal to connect Soil Moisture sensor.
Documents:
MicroMod Weather Carrier Board Documentation:
- Schematic
- Eagle Files
- Hookup Guide
- Board Dimensions
- Hardware GitHub Repo
- BME280 Datasheet (PDF)
- VEML6075 Datasheet
- AS3935 Datasheet
Weather Carrier Board Sensor Arduino Libraries:
- BME280 Arduino Library
- VEML6075 Arduino Library
- AS3935 Arduino Library
MicroMod Documentation:
- Getting Started with MicroMod
- Designing with MicroMod
- MicroMod Info Page
- MicroMod Forums
