INTRODUCTION
This Stepper Motor is Discontinued Now, We recommend other best selling Stepper Motors as a suitable replacement.

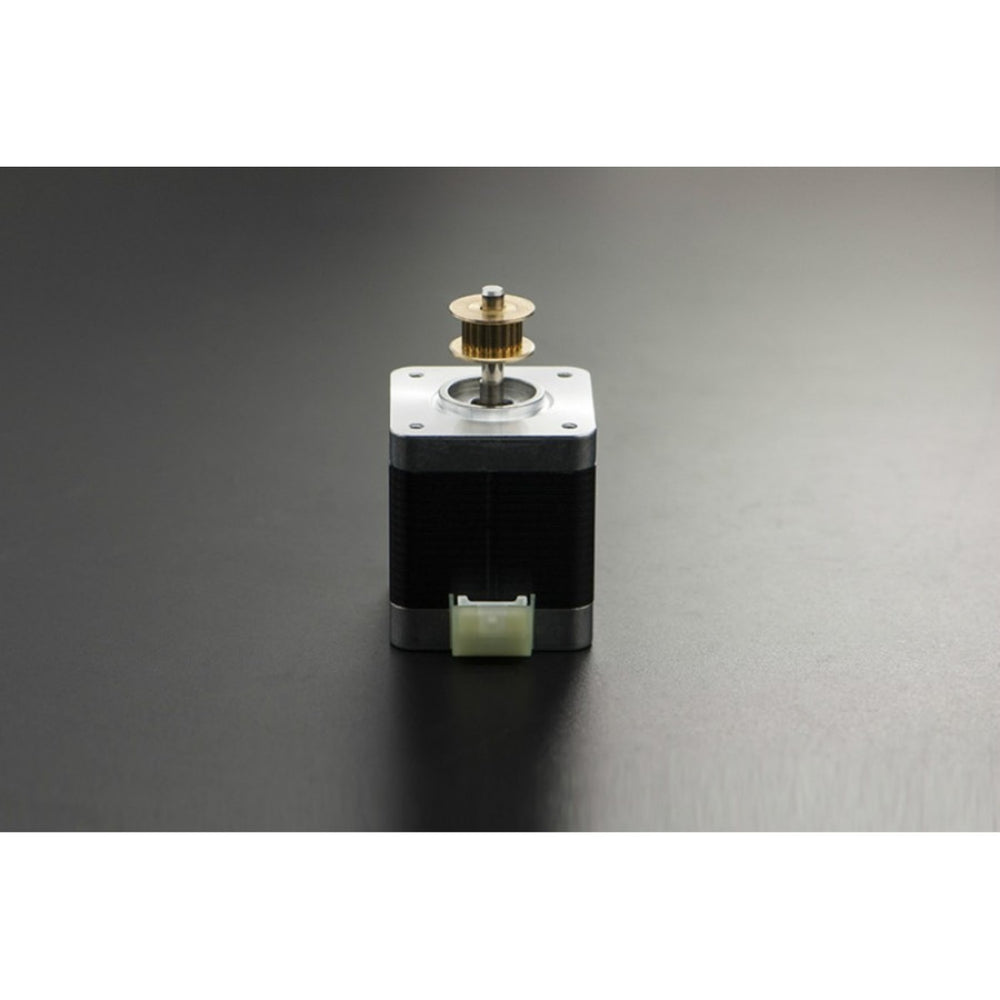

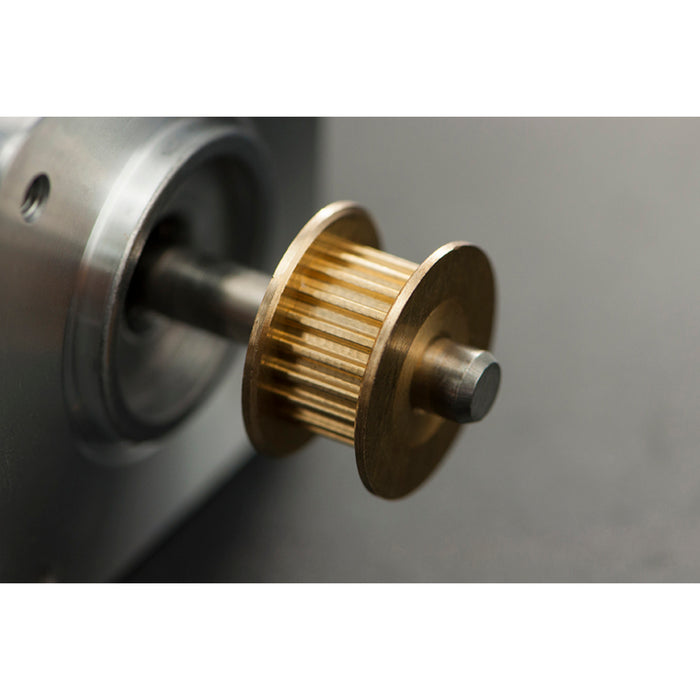

A stepper motor with timing pulley, type name "17PM-K446-04VS". This motor has 1.8" stepping angle. And its rated voltage is only 4.6V, which could be used in the low-voltage environment. The static torque could arrive 3.92kg.cm. It has been enough for the most popular application. Wtih a timing pulley, you could connect a belt on the roller. Especially when you are going to play with a 3D printer. That will be a good choice. This stepper motor is compatible with both the Overlord and Overlord Pro.
SPECIFICATIONS

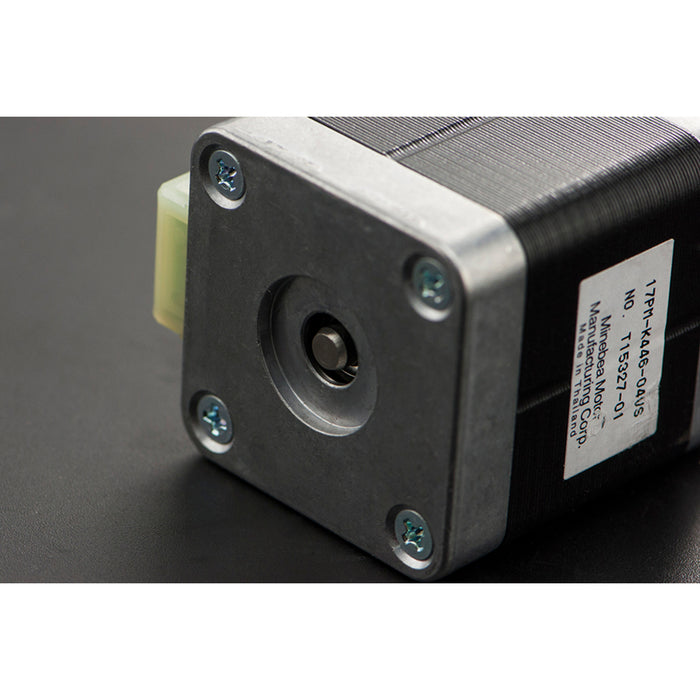

- Model No: 17PM-K446-04VS
- Rated Voltage: 4.6V
- Dimension: 42*42*48 mm (1.65*1.65*1.89")
- Step Angle (degrees) :1.8
- Rated Current : 1.1A@4.6V
- Winding resistance: 4.2 Ω
- Winding inductance: 5.2 mH
- Holding Torque : 3.92kg*cm
- Insulation Class: B
- Dimension: 42x42x40mm (1.65x1.65x1.57")
- Mounting: 4 x M3
- Mass:350g
- Step Angle Accuracy : ±5% (full step, no load)
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- emperature Rise: 80°C Max.(rated current,2 phase on)
- Ambient Temperature: -20°C~+50°C
SHIPPING LIST
- Stepper Motor With Timing Pulley for Overlord x1
