SunFounder Super Starter Kit V3.0 for Raspberry Pi3
This is a magical tool kit with various components inside for learning, which will lead you to the world of Raspberry Pi quickly. It includes 17 lessons, each containing the circuit connection, principles, Fritzing images and code explanations for you to learn Raspberry Pi from scratch. In addition, detailed introduction of the components is included in the manual and you can try some extension experiments by yourself after studying this kit.
17 Projects for Beginners
- Lesson 1 Blinking LED
- Lesson 2 Controlling an LED by a Button
- Lesson 3 Flowing LED Lights
- Lesson 4 Breathing LED
- Lesson 5 RGB LED
- Lesson 6 Buzzer
- Lesson 7 Relay
- Lesson 8 4N35
- Lesson 9 Ne555
- Lesson 10 Slide Switch
- Lesson 11 How to Drive a DC Motor
- Lesson 12 Rotary Encoder
- Lesson 13 Driving LEDs by 74HC595
- Lesson 14 Driving 7-Segment Display by 74HC595
- Lesson 15 Driving Dot-Matrix by 74HC595
- Lesson 16 LCD1602
- Lesson 17 ADXL345

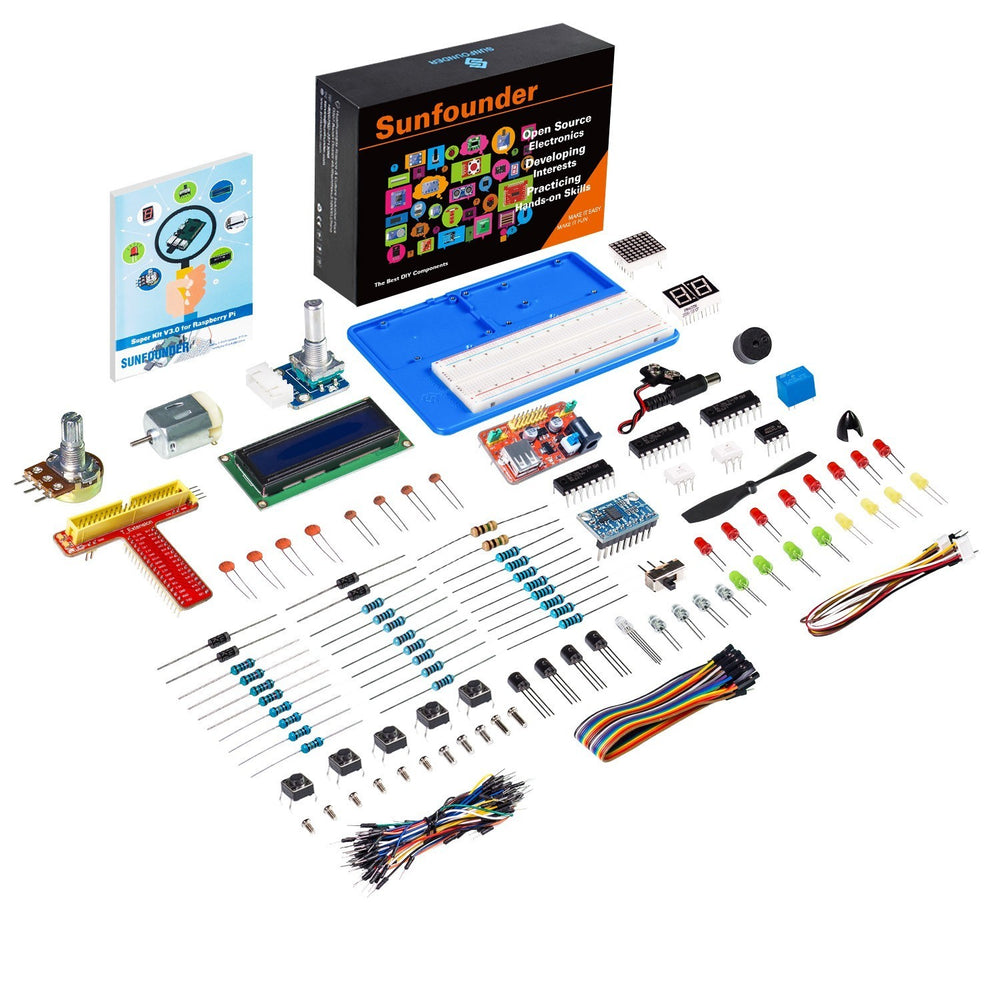

Package Included

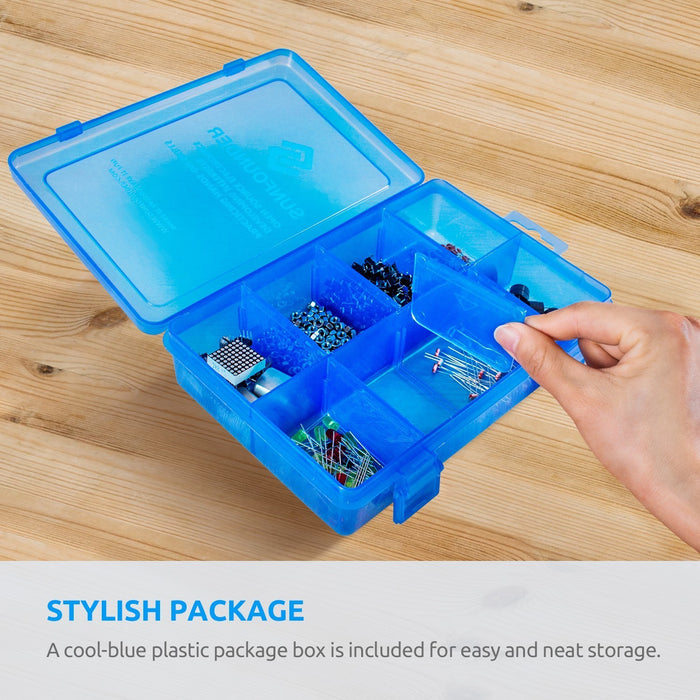

1 x Project Box
1 x T-Extension Board
1 x 40-Pin GPIO Cable
1 x User Manual
1 x 555 Timer IC
2 x Optocoupler (4N35)
2 x Shift Register (74HC595)
1 x L293D
1 x Accelerometer ADXL345
1 x Rotary Encoder
5 x Button
1 Set x Resistor (220Ω, 1kΩ, 10kΩ, 1MΩ, 5.1MΩ)
4 x Diode Rectifier
1 x Switch
1 x Potentiometer (50k)
1 x Power Supply Module
1 x LCD1602
1 x Dot Matrix Display (8*8)
2 x 7-Segment Display
1 x DC Motor
1 Set x LED (Red, White, Green, Yellow)
4 x NPN Transistor (PNP/NPN)
8 x Capacitor Ceramic (100nF/10nF)
1 x Breadboard
1 x Active Buzzer
1 x Relay
1 x Fan
65 x Male-to-Male Jumper Wire
20 x Female-to-Male Dupont Wire
2 x 5-Pin Anti-reverse Cable
1 x 9V Battery Buckle
1 Set x Screw
1 x RAB Holder
