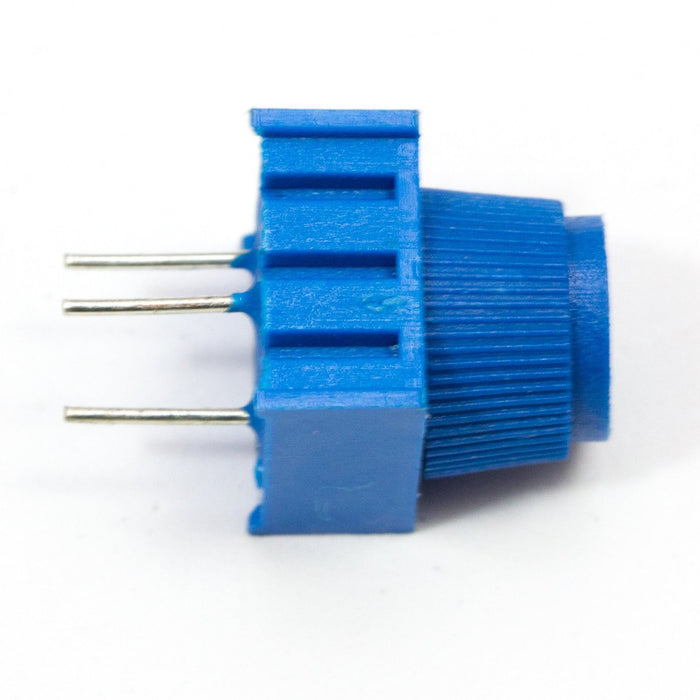

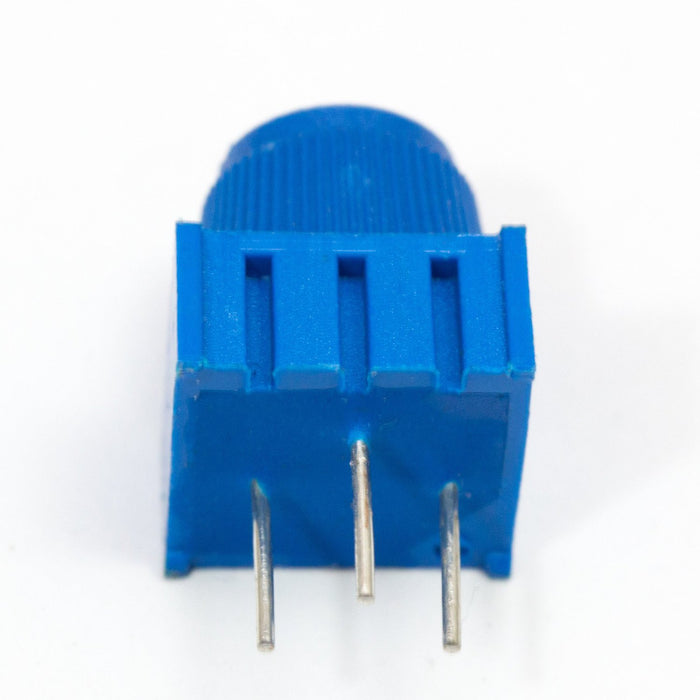

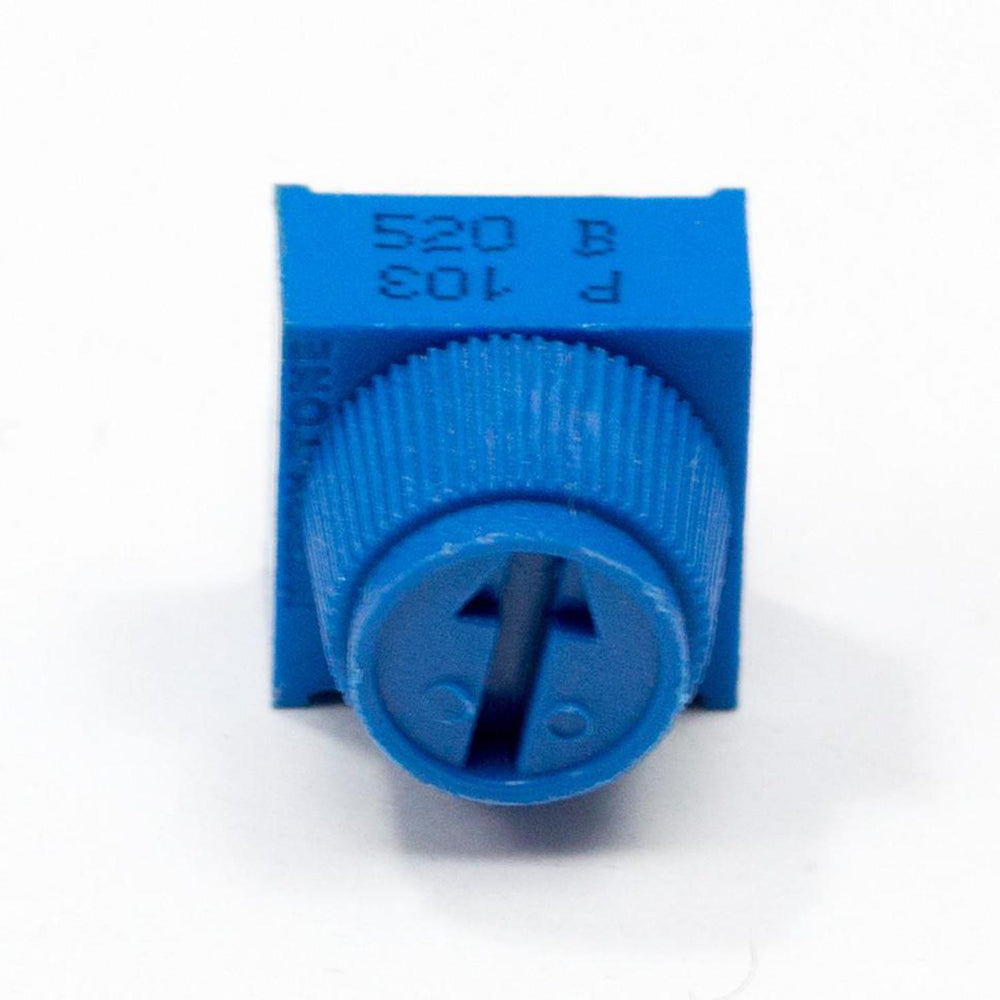

The resistance of these trim potentiometers ranges linearly from 0Ω to 10KΩ over a full cycle (240°).

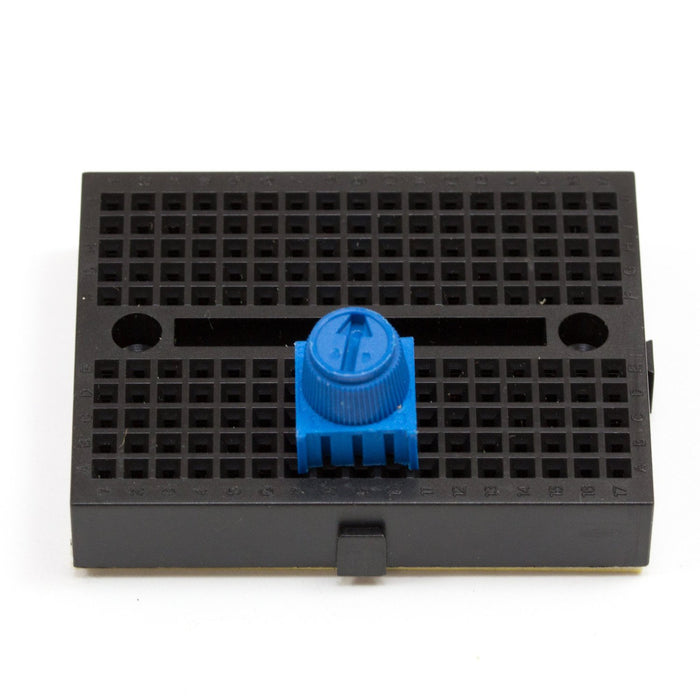

They are horizontally mounted and ideal for breadboarding or perfboard use due to the 0.1" spacing off the pins. Rated for up to 1/6th of a watt and good for 10,000 cycles.
- Maximum power: 1/6th W (0.15W)
- Linear resistance range (±3%)
- Diameter: 10.3mm
- Height: 4.5mm
- Package: Through hole 0.1" spacing
- Resistive element: Carbon
- Tolerance: ±20%
- Rated mechanical cycles: 10,000
