We can get 159 units into Australia from Sparkfun. If you order today, we can dispatch this stock between Nov 29, 2024 - Dec 11, 2024.

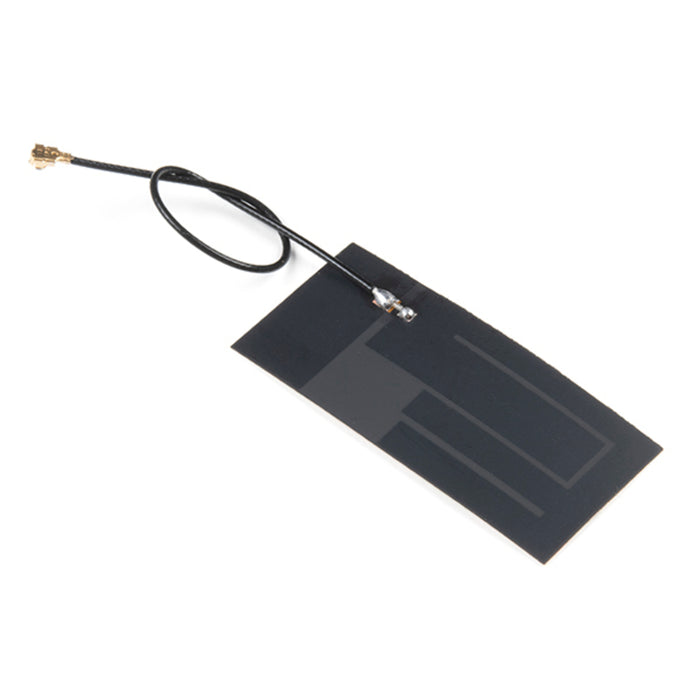

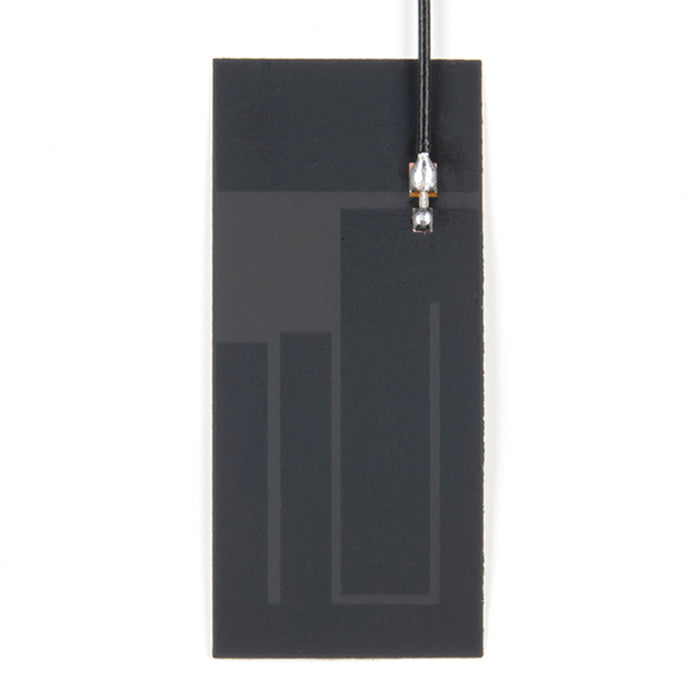

A Wide Band, 700-2700Mhz frequency range, 4G LTE antenna provides a wide enough range for a number of applications including BLE & LoRa/RF. This antenna is 53mm x 24mm with a 100mm length coaxial cable ending in an IPEX (u.FL equivalent) connector. The antenna has a 3M adhesive backing making it easy to fix it to your project.

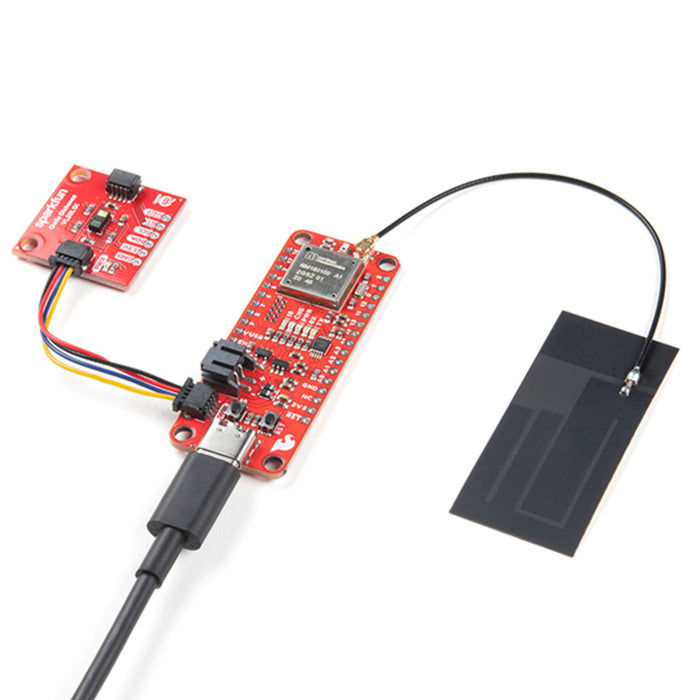

If you are looking for a board to use this antenna with, we highly recommend our SparkFun LoRa Thing Plus – expLoRaBLE board!
Features:
- Frequency range: 700-2700Mhz
- Gain: 8dBi internal antenna
- VSWR: ≤1.8
- Input impedance: 50Ω
- Material: Radiator FPC
- Antenna Size: 53*24mm
- Length: 100mm
- Cable type: 1.13 coaxial cable
- Connector style: IPEX (u.FL equivalent)
- Polarization: Vertical
- Power: 30w

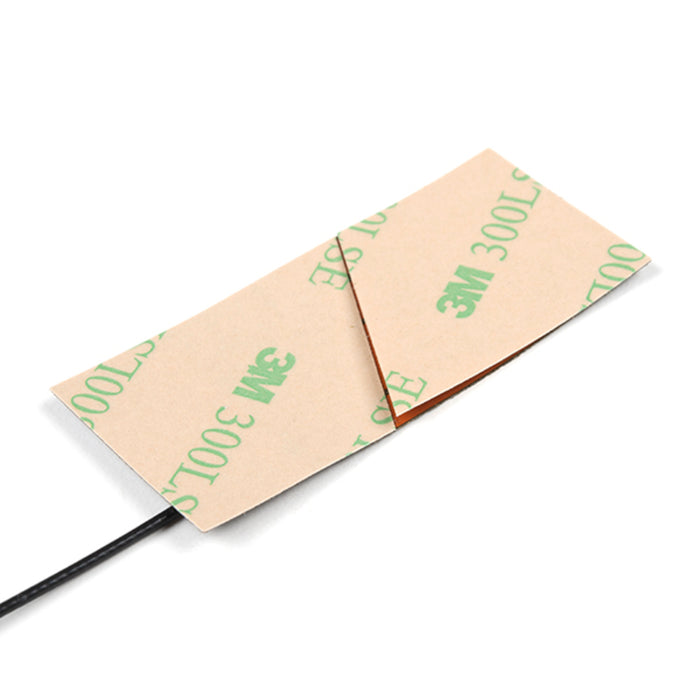

- Mounting: 3M sticker
- Operation Temperature: - 40 °C ~ + 80 °C
- Storage Temperature: - 40 °C ~ + 80 °C
Documents:
- Datasheet
