Makeblock Socket Cap Screw was replaced by Button Head Socket Cap Screw , and the tool HEX Screwdriver 3mm was replaced by HEX Screwdriver 2.5mm.
Button Head Socket Cap Screw is a new kind of Socket Cap Screw, it has smaller head that can solve most problem of interfere with other components.
Description:

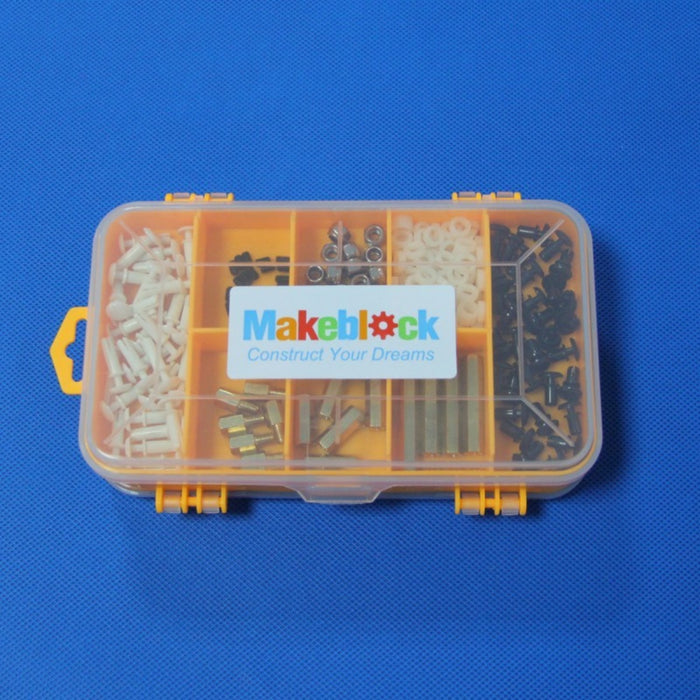

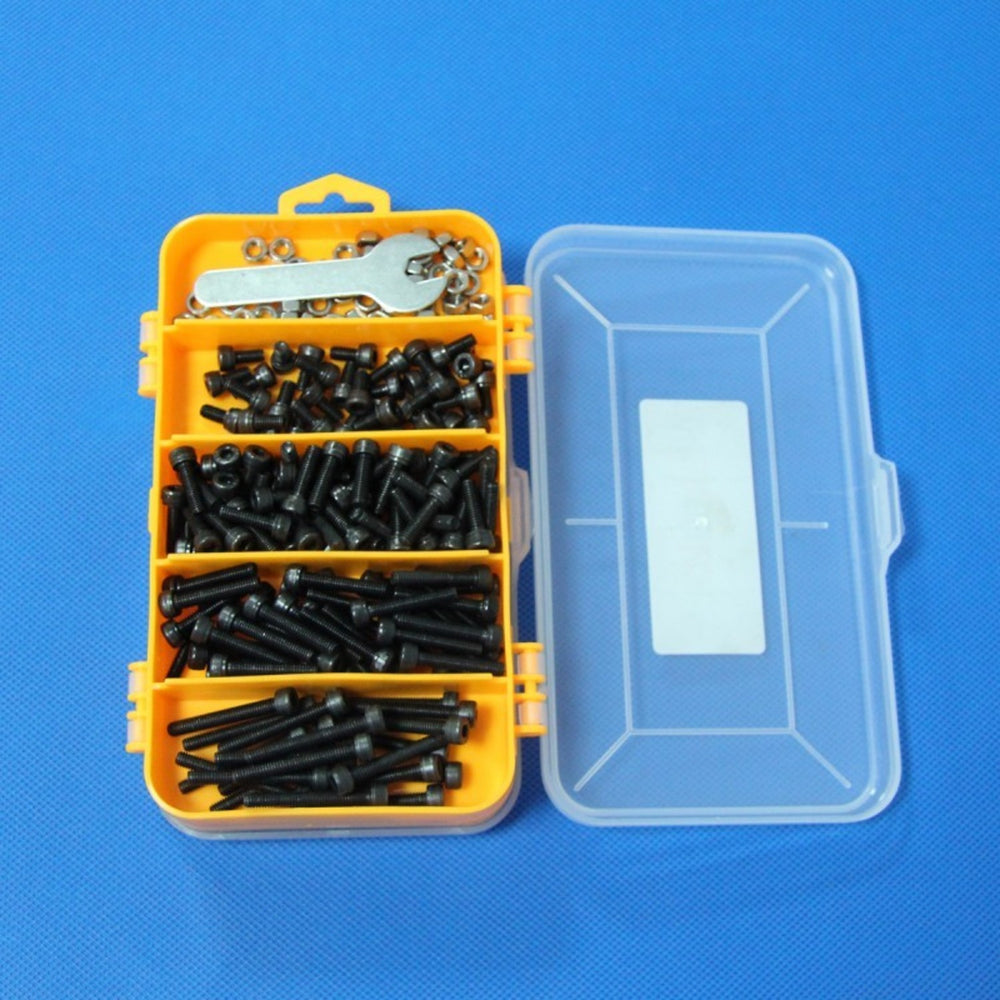

This Hardware Pack contains the most frequently used hardwares in Makeblock platform.The box can be opened in two sides and the size is 160*92*44mm.
Part List:
| 40x | Socket Cap Screw M4x8 |
| 60x | Socket Cap Screw M4x14 |
| 40x | Socket Cap Screw M4x22 |
| 20x | Socket Cap Screw M4x35 |
| 50x | Nut M4 |
| 20x | Nylon lock Nut 4mm |
| 1x | Wrench 7mm |
| 6x | Brass Stud M4*8+6 |
| 6x | Brass Stud M4*16 |
| 4x | Brass Stud M4*32 |
| 30x | Plastic Rivet R4060 |
| 30x | Plastic Rivet R4120 |
| 30x | Headless Set Screw M3x5 |
| 100x | Plastic Ring 4x7x2mm |
| 1x | Plastic Box |
